802.11b/g - 250mW - PoE
Overview :
The EZ2+ Series wireless Access Point, based on IEEE 802.11b/g technology, delivers access point features enabling cost effective access for mobile and fixed wireless users. In addition, the EZ2+ Series supports IEEE 802.1x compliant and RADIUS, the most up-to-date wireless security solution for applications in public places.
The standard protocol format allows WISPs (Wireless Internet Service Providers) bill the usage of their wireless services through EZ2+ Series through their RADIUS servers. Moreover, the EZ2+ Series provides standard and advanced WDS (Wireless Distribution System) bridge functionality joining LAN segments that may be geographically separated to a complete network. Up to 6 WDS bridge links work in AP function simultaneously, enabling LAN segments to be flexibly connected to mirror any network topology which a traditional wired network can achieve.
The bundled Antenna Alignment Utility provides the at-a-glance way to easily assist the antenna deployment through the friendly web based user interface. The default PoE function allows the power feeding by Ethernet cable to eliminate the additional power line requirement in special install environment.
With the sleek and intuitive Web-based user interface, the EZ2+ can be easily managed and satisfied by system integrators’ various requirements. The over all RSSI, Traffic, and Packet/Byte graphs provide all the necessary device history information over a period of 24 hours.
The EZ2+ comes complete with Cat5e rated POE (Power Over Ethernet) power inserter with LED and 18VDC auto-ranging power supply.
Key Features |
IEEE 802.11b/g:
802.11b/g 54Mbps Device
64/128 bit WEP
Enabling/disabling SSID broadcasts
MAC-address-based access control
WPA (IEEE 802.1x + TKIP)
EAP-MD5 / EAP-TLS / EAP-TTLS
/ PEAP / WPA-PSK / WPA-TKIP
WDS for 6 wireless bridge links
Antenna Alignment Utility
Transmit power control |
Functionaliy Modes:
BR1+ :
Access Point Bridge
AP Client Bridge
Wireless Distribution System (WDS)
WDS + Access Point
Point To Point
Universal Repeater optional on all modes |
DHCP Server :
Static DHCP mappings
Current DHCP mappings Listing |
Firmware Upgrade :
HTTP-based
TFTP-based |
Configuration Tools :
Configuration backup/restore
Configuration reset
Configuration Manager |
Management :
Windows-based discovery Tool
Web-based management UI
Telnet |
Power over Ethernet :
On Board PoE
PoE Injector |
Watchdog Timer :
Hardware
Software |

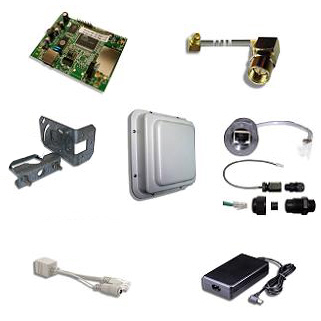

This bundle contains the following products: |
|
|
|
|
