Aerial.net :: EZ2_v1 PCB 250mw 24dB 802.11b/g

Outdoor 2.4GHz » 2.4GHz » EZ2v1

EZ2_v1 PCB 250mw 24dB 802.11b/g
[0417][EZ2v1]

The product is
no longer available

Prices exclude VAT

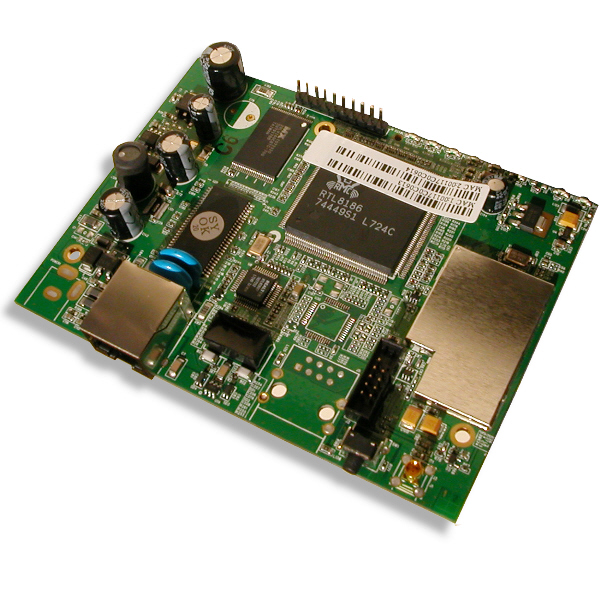

The EZ2v1 is a high power outdoor 250mW wireless Client Bridge / Router system
operating in the 2.4GHz unlicensed frequency spectrum providing real world thruput
up to 15 Mb/sec.
It complies with the 802.11b and g standards to insure interoperability.
With its advanced software, the EZ2v1 supports multiple operating modes,
including; Client Bridge, Client Router, Access Point Router, Access Point + WDS
and Point to Point.

Product Links:
Documentation	Datasheet	Firmware	Utility

NOTE : Pigtails sold separately in our MMCX pigtail section

Specifications:
OS	EZ-OS
IEEE Standard Compliance	IEEE 802.11b 2.4GHz CCK IEEE 802.11g 2.4GHz OFDM
Frequency Range	2.4 GHZ – 2.485 GHz
Channel Support	ETSI: 13 channels, US11 channels,
Data Rate	802.11b: 11 / 5,5 / 2 / 1 Mbps 802.11g: 54 / 48 / 36 / 24 / 12 / 9 / 6 Mbps
Sensitivity	802.11g: -76 +/- 2dBm @ 54Mbps 802.11b: -86 +/- 2dBm @ 11Mbps
RF output power stepping	802.11b: 0 to 24 dBm at 1dBm increments 802.11g: 0 to 20 dBm at 1dBm increments
Output power	250mW @ 11Mbit 802.11b 100mW @ 54Mbit 802.11g
Operating modes	AP Client router (WISP mode) AP Client Bridge Access Point Router AccessPoint Bridge WDS, WDS+AP Universal Repeater
Security	Password protection MAC filtering Hidden SSID broadcast 64 / 128-bit WEP encryption WAP for 802.1x and WPA-PSK WAP2 / IEEE 802.11i
Management	Web interface Full control by SSH connection Full control by Telnet connection
Antenna connector	MMCX
Power	12V to 18V Passive PoE ONLY !!
Operating environment	Temprature -30C to 60C Humidity 10 – 90% (non condensing)
Dimensions	112x83 mm
Wi-Fi Complaiant	2.4 GHz band (802.11b) 2.4 GHz band (802.11g) WPA and WPA2

Package Contents:
1 x

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	12 month(s)
