Το προϊόν δεν
είναι πλέον διαθέσιμο |
| Τιμές χωρίς ΦΠΑ |
|
|
| Στοιχεία Προϊόντος |
|---|
| PID: | 632 |
| SKU: | TL-SG1008D |
| Μονάδα: | 26×18×7cm, 0.66 Κιλά | | Κιβώτιο 20pcs: | 59×47×38cm, 11.15 Κιλά | | Επιστροφές |
|---|
| Επιστροφή: | 20 ημέρες |
| Πίστωση: | 40 ημέρες |
| Εγγύηση: | 36 μήνες |

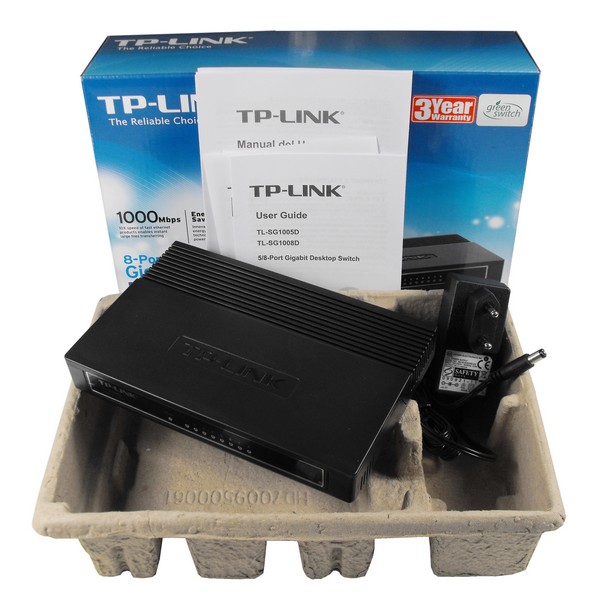

| Περιεχόμενα Συσκευασίας: |
|---|
| 1 x 8-port Unmanaged Gigabit Desktop Switch |
| 1 x Power Adapter |
| 1 x User's Guide |
|

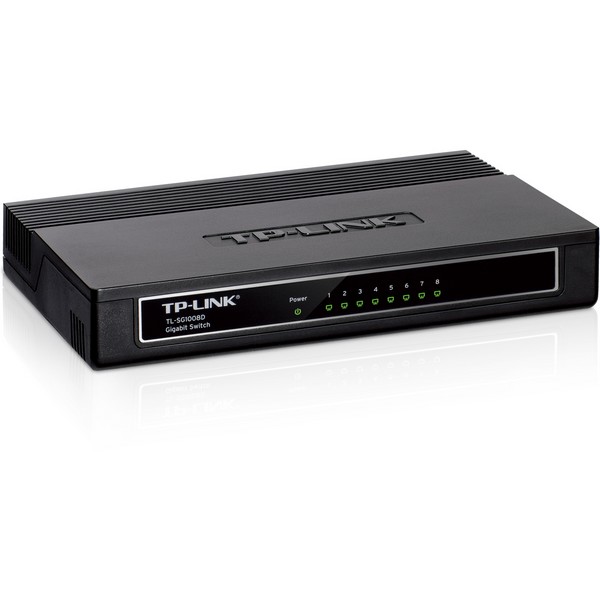

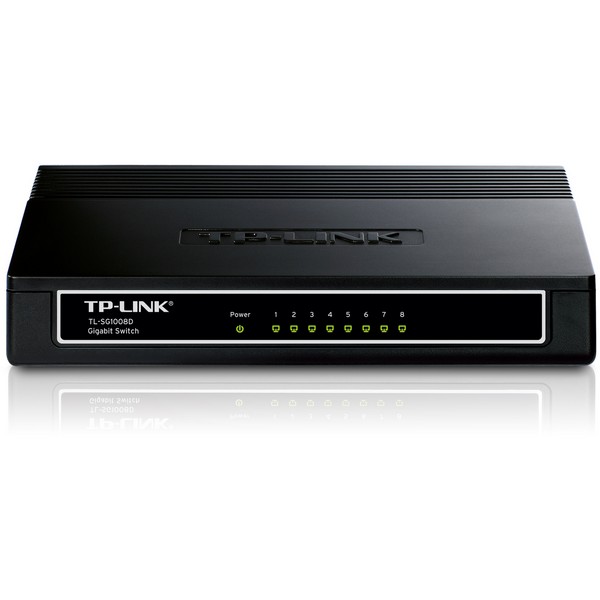

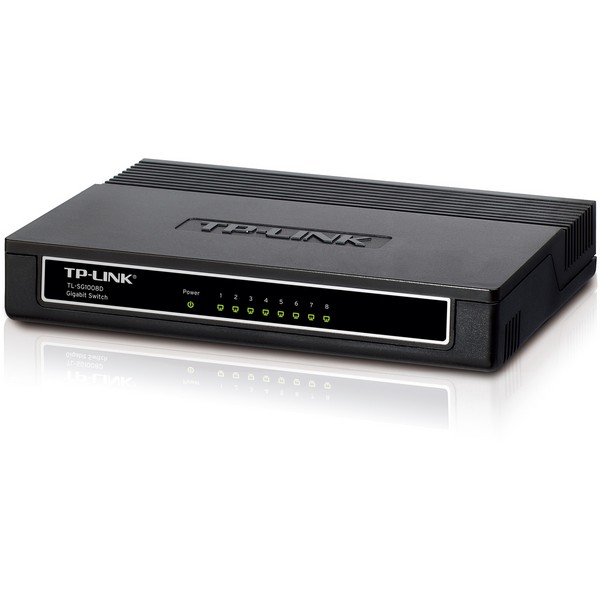

8-port Unmanaged Gigabit Desktop Switch (8x10/100/1000M RJ45 ports)
The TL-SG1008D 8-port Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files and other applications that have to move large files across the network almost instantly.
TL-SG1008D adopts Green Ethernet technology. It can automatically power down ports that have no link, and budget power output for different cable length. With Green Ethernet technology, TL-SG1008D can help you save power and network cost.
|
Product Προδιαγραφές |
|
Standards and Protocols
|
IEEE802.3, 802.3u, 802.3ab, 802.3x
CSMA/CD, TCP/IP
|
|
Basic Function
|
Wire-speed Performance
|
|
MAC Address Auto-Learning and Auto-aging
|
|
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
|
|
Backbound Bandwidth
|
10Gbps
|
|
MAC Address Table
|
1k
|
|
Forwarding Rate
|
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
1000BASE-T: 1488000pps/port
|
|
Transmission Method
|
Store-and-Forward
|
|
Ports
|

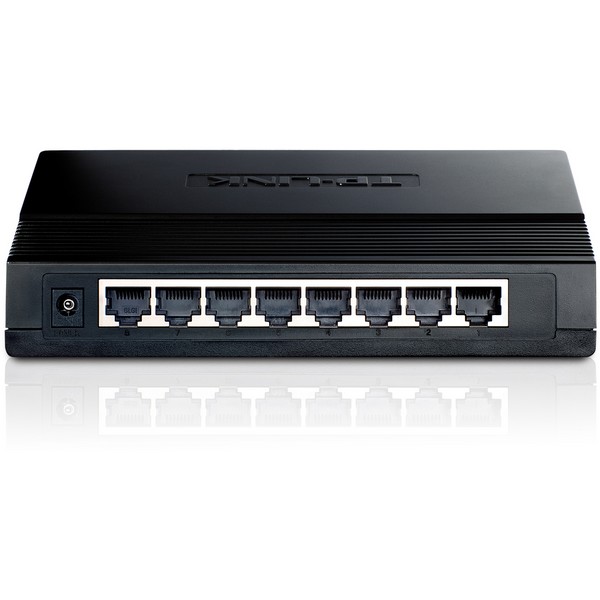

8 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
|
|
Network Media
|
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)
|
|
LED Indicators
|
Power, Link/Act (100M, 1000M)
|
|
Safety & Emission
|
FCC, CE
|
|
Διαστάσεις (W*D*H)
|
7.9*5.5*1.1 in. (200*140*28 mm)
|
|
Environment
|
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
|
|
Power
|
External Power Adapter
|
|
