The product is
no longer available |
| Prices exclude VAT |
|
|
| Product Details |
|---|
| PID: | 1167 |
| SKU: | EZ-RPSMAP240 |
| Single unit: | Bag, 5 g | | Carton 100pcs: | 20×19×3cm, 0.50 Kgs | | Return Policy |
|---|
| Refund: | 20 days |
| Store Credit: | 40 days |
| Repair / Warranty: | 12 months |
| Package Contents: |
|---|
| 1 x RP-SMA Plug connector in poly bag |
|

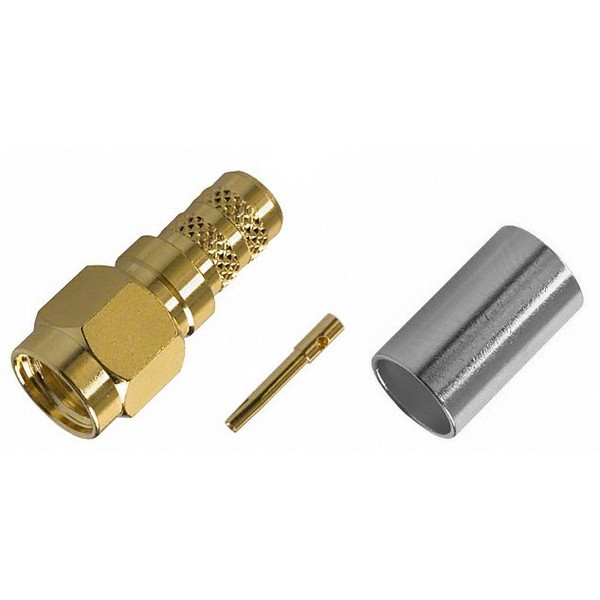

RP-SMA Plug Crimp connector for 240 series cable.
|
Materials/Finish : |
|
Body |
Brass |
Gold |
|
Center Pin |
Bronze |
Gold |
|
Crimp Tube |
Annealed Copper |
Gold |
|
Dielectric |
Teflon |
n/a |
|
Specifications : |
|
Impedance |
50 ohm |
|
Frequency Range |
0 to 11.0 GHz |
|
VSWR |
1.3 max |
|
Working Voltage |
1,000 volts rms max at sea level |
|
Dielectric Withstanding Voltage |
2,500 volts rms max at sea level |
|
ContactResistance |
center contact=1.0 Milliohms max
outer contact=1.0 Milliohms max |
|
Insertion Loss |
0.3 dB max at 10 GHz |
|
Insulation Resistance |
5,000 Megohms min |
|
Connector |
|
RP-SMA |
 |
Female thread
Female center pin |
|
