Aerial.net :: 24v 2.0A Power Supply Desktop EU type

LJ-2420SX

24v 2.0A Power Supply Desktop EU type
[1706][LJ-2420SX]

The product is
no longer available

Prices exclude VAT

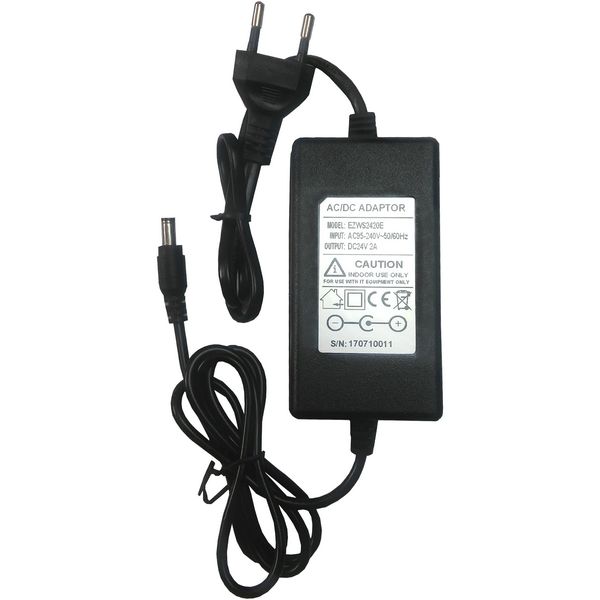

24v 2.0A Power Supply Desktop EU type :

Output: 24V DC / 2000mA, 2.1 mm DC jack.
Input: 100 - 240VAC, 47 - 63 Hz, CE / UL / GS.
AC Prongs : EU type
Origin: China

Product Links:
Datasheet	CE Certificate

Specifications:
Input Condition	AC100~240V 50/60Hz 0.6A max
Input Rated Voltage	100Vac~200Vac
Input Voltage Rate	90Vac~264Vac
Input Rated Frequency	50/60Hz
Input Frequency Range	47Hz~63Hz
Input Current	0.6A Max
Input Inrush Current	30A Max
Input No Load Power Consumption	0.5 Watt Max @ 115Vac/230Vac
Efficiency	80% Min
Rated Output Voltage & Current	24v/2.0A
Output Line Regulation	+-1%
Output Load Regulation	+-5%
Output Over Shoot	10% Max
Output Ripple and Noise	1% Max
Output Rising Time	20ms Max @ 115Vac
Output Hold-Up Time	8ms Min @ 230Vac
Protection	OCP OVP SCP OPP
Dielectric Withstand Voltage	3KV 5mA 60s
Leakage Current	0.25mA @ 230Vac
DC Plug Specification	5.5x2.1x11mm
Dimension	33x100x53mm
DC Cable Length	100cm
AC Cable Length	40cm
Operating Temperature Range	0^oC~40^oC
Storage Temperature Range	-20^oC~+85^oC

Package Contents:
1 x

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	12 month(s)
