Aerial.net :: MikroTik Routerboard 532A (Level 4) WISP AP 64MB

RB/532A

MikroTik Routerboard 532A (Level 4) WISP AP 64MB
[0205][RB/532A]

The product is
no longer available

Prices exclude VAT

USED!!!

This high performance tiny board is an all-in-one integrated communications platform for high-throughput Ethernet and wireless based networks.

Its simple and robust design ensures reliable non-stop operation of the unit. Compared to Geode SC1100 based boards, this power-efficient design performs 2 to 3 times faster thanks to a MIPS 4Kc core CPU architecture.

From the base configuration of 3 Ethernet ports and 2 MiniPCI slots (for wireless cards). MikroTik WISP-AP (Level 4) software pre-installed.

User's Manual

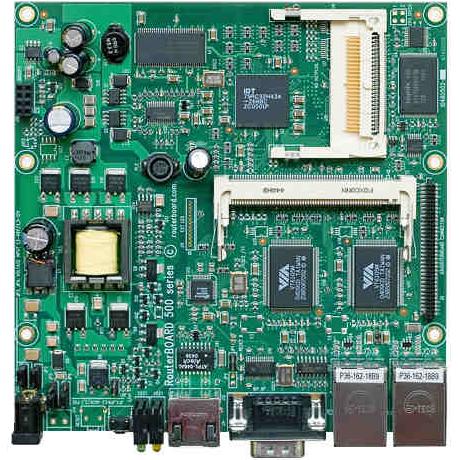

RouterBOARD 532
CPU	MIPS 32 4Kc based 200MHz-400MHz (can be downclocked in BIOS) embedded processor
Memory	64MB DDR onboard memory chip
BIOS	RouterBOOT, 1Mbit Flash chip
Data storage	128MB onboard NAND memory chip CompactFlash type I/II slot (also supports IBM/Hitachi Microdrive)
Ethernet ports	One IDT Korina 10/100 Mbit/s Fast Ethernet port supporting Auto-MDI/X Two VIA VT6105 10/100 Mbit/s Fast Ethernet ports supporting Auto-MDI/X
MiniPCI slot	Two MiniPCI Type IIIA/IIIB slots
Serial ports	One DB9 RS232C asynchronous serial port
LEDs	Power, 2 LED pairs for MiniPCI slots, 1 user LED
Watchdog	IDT internal SoC hardware watchdog timer
Power options	IEEE802.3af Power over Ethernet: 48V Power jack/header 11..24V
Dimensions	14.0 cm x 14.0 cm (5.51 in x 5.51 in)
Temperature	Operational: -20°C to +70°C (-4°F to 158°F)
Humidity	Operational: 70% relative humidity (non-condensing)
Currently supported OS	RouterOS 2.9

Return for:
Refund:	Store Credit:	Repair:
40 day(s)	0 day(s)	24 month(s)

Current Reviews: 1
