2 x Ethernet holes and 4 x N-Type holes

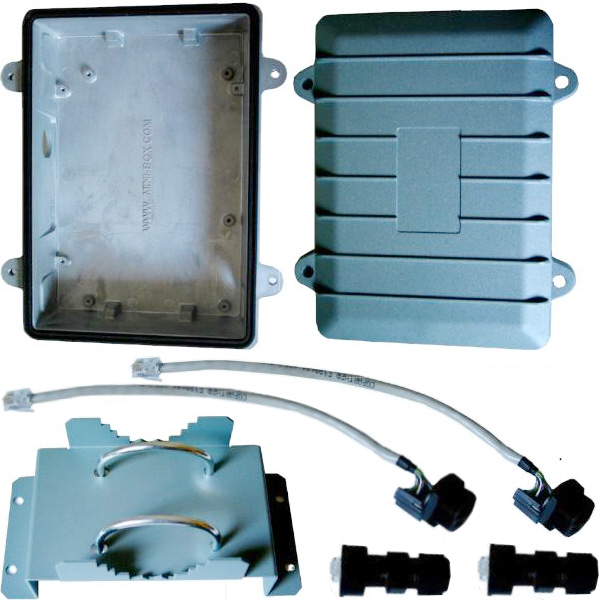

Industrial Die-Cast Aluminum Design
Designed to withstand the toughest environments, the WRAP-BOX outdoor enclosure is a small, light, yet very solid wireless outdoor enclosure. The WRAP-BOX is rated NEMA-67 providing complete protection against ingress of dust (6) as well as protection against immersion in water (7).
Multiple Antenna, Ethernet Options
The N-Type antennas connectors are placed as far as possible from each other in order to increase spatial diversity and decrease RF grounding from the mounting mast. Multiple Antennas can be used for repeater operation, multiple band or MIMO smart antenna applications.
Thermal Characteristics
- Enclosure Seal Operating temperature -60C to 230C
- Heat Trap: +6.5 Celsius under full sun (~100,000 Lux)
- Temperature raise using a 5-10Watt heat source (WRAP + radio board): +5.5 Celsius
Mechanical Characteristics
- Inside measurements: 180x125mm x 46mm
- Wall thickness: 3mm
- Supports masts up to 3" diameter
Board Support
- Native support for
Alix3d2 Boards
- Native support for nano-ITX boards
- Other boards types require mounting plate
Note: Outdoor Omni Antennas, N-type pigtails and wallmount bracket not included
