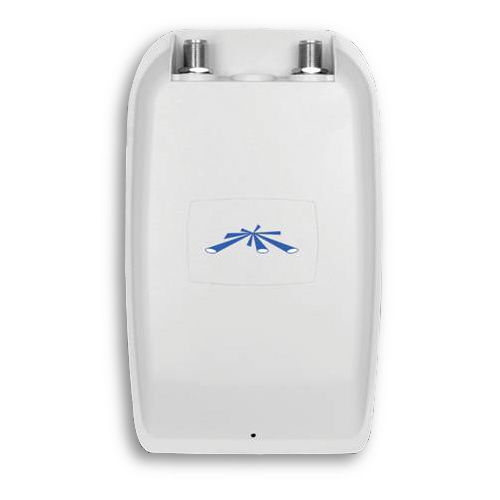

PowerStation2 is a versatile open architecture 802.11 based outdoor wireless platform that can be used as an AP, Bridge, PMP Station, Mesh networking client, and in many more applications being developed.
It features exceptional radio and antenna design which allows links to be established over distances of 50km and can provide significantly increased throughput (up to 50+Mbps TCP/IP) over other solutions in comparable environments.
Additionally, Ubiquiti has made public Linux SDK and toolchain resources for developers.
This unit comes with 2 x N-Type external antenna connector. (no embedded antenna)
|
System Information : |
|
Processor Specs |
Atheros AR2316 SOC, MIPS 4KC, 180MHz |
|
Memory Information |
16MB SDRAM, 4MB Flash |
|
Networking Interface |
2 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface |
|
Physical - Electrical - Environmental :
|
|
Enclosure Size |
18 in. length x 13 in. height x 2in. Width |
|
Weight |
8.8 lbs |
|
Enclosure Characteristics |
Outdoor UV Stabalized Plastic (Antenna) and die cast metal (system) |
|
Mounting Kit |
Pole / Wall Mounting Kit included |
|
Max Power Consumption |
6.5 Watts |
|
Power Supply |
15V, 0.8A (12 Watts). Supply with POE injector included |
|
Power Method |
Passive Power over Ethernet (pairs 4,5+; 7,8 return) |
|
Operating Temperature |
-40C to 85C (System PCB optimized for hi-temp) |
|
Operating Humidity |
5 to 95% Condensing |
|
Shock and Vibration |
ETSI300-019-1.4 |
|
External Antenna connector |
2 x N-Type female connectors |
