TL-SG1016
The product is
no longer available
Prices exclude VAT
Product Details
PID:633
SKU:TL-SG1016
Single unit:53×26×9cm, 3.00 Kgs
Carton 6pcs:55×52×27cm, 19.30 Kgs
Return Policy
Refund:20 days
Store Credit:40 days
Warranty:24 months
Package Contents:
1 x 16-port Unmanaged Gigabit Rackmount Switch
1 x Power Cord
1 x User's Guide
1 x Kit of Rubber footpads for Desk-mount
1 x Rack-mount kit for installing the switch in a 19-inch rack

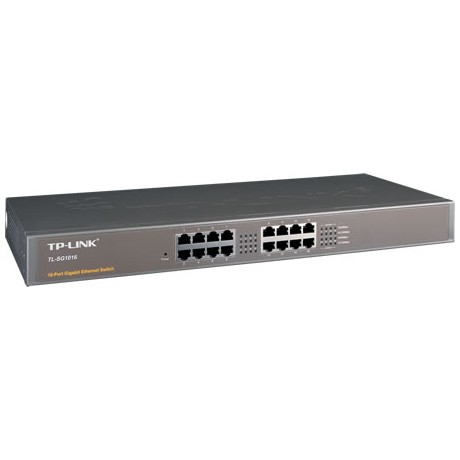

16-port Unmanaged Gigabit Rackmount Switch (16x10/100/1000M RJ45 ports)

The TL-SG1016 is specially designed for Ethernet (10Mbps), Fast Ethernet (100Mbps) and Gigabit Ethernet (1000Mbps) with seamless link. Each port supports up to 2000Mbps throughput in full duplex mode. It is the perfect choice to improve the performance of Offices and Workgroups networks.

Product Links:
Product page Product page   Datasheet Datasheet   User Guide User Guide



Specifications
Standards and Protocols
 IEEE802.3, 802.3u, 802.3ab, 802.3x
 CSMA/CD, TCP/IP
Basic Function
 Wire-speed Performance
 MAC Address Auto-Learning and Auto-aging
 IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth
 32Gbps
MAC Address Table
 8k
Forwarding Rate
 10BASE-T: 14880pps/port
 100BASE-TX: 148800pps/port
 1000BASE-T: 1488000pps/port
Transmission Method
 Store-and-Forward
Ports
 16 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media
 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
 EIA/TIA-568 100Ù STP (maximum 100m)
 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
 EIA/TIA-568 100Ù STP (maximum 100m)
 1000Base-T: UTP category 5, 5e cable (maximum 100m)
LED Indicators
 Power, Link/Act
Safety & Emission
 FCC, CE
Dimensions (W*D*H)
 17.3*7.1*1.7 in. (440*180*44 mm)
Environment
 Operating Temperature: 0℃~40℃ (32℉~104℉)
 Storage Temperature: -40℃~70℃ (-40℉~158℉)
 Operating Humidity: 10%~90% non-condensing
 Storage Humidity: 5%~90% non-condensing
Power
 100-240VAC, 50/60Hz
