Direct 19 - 5G is the first antenna from the new 5 GHz antenna’s RF elements commodity.
Antenna :

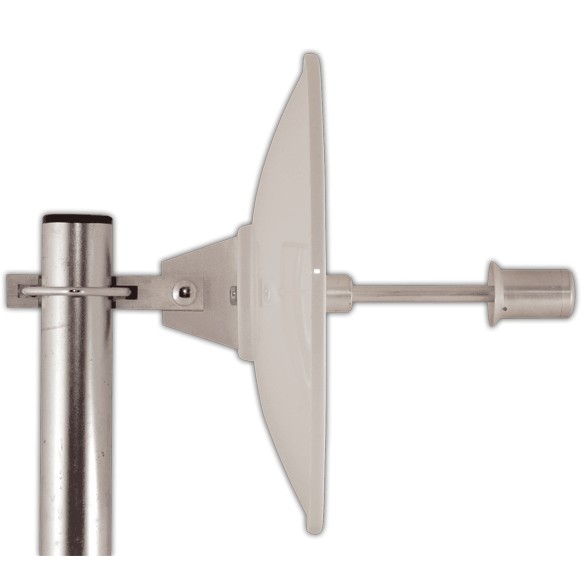

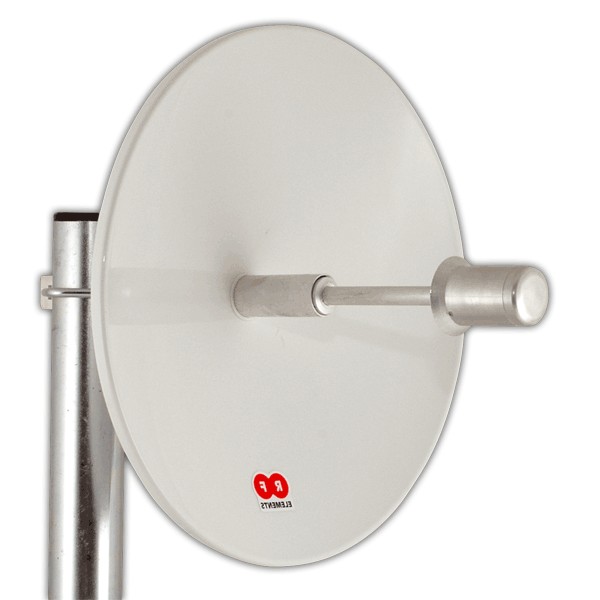

Direct 19-5G is a directional parabolic antenna working in 5 GHz band. There is a possibility to use Direct 19-5G in horizontal polarization or vertical polarization.
Antenna is made of a top quality two-layer ABS/Plexiglas (PMMA) material which enables Direct 19-5G to be used also in more difficult climatic conditions.
The antenna is corrosion resistant and its lifetime is very long. The weight of Direct 19-5G is very low (up to 0.57 Kg).
Feedhorn:
Direct 19-5G has a new feeder (half wave’s dipole in waveguide). Coaxial waveguide which is ended with N connector is completely hidden in the holder of feeder. Feeder’s collar is shaped exactly according to the type of parabolic reflector. After this manner optimal radiation is secured. Moreover, maximum possible gain is achieved and possible over radiation of reflector is eliminated.
| Features: |
Benefits: |
● Operating frequency 5470 – 5725 MHz
● Material ABS/plexiglass (PMMA) + Aluminium
● Vertically or horizontally polarized
● Mounting with butt hinge |
● High gain/size ratio
● long lifetime
● Low weight – up to 0.57 Kg
● No corrosion
● Easy Installation |
| Specifications: |
| Dimension |
diameter 290 mm |

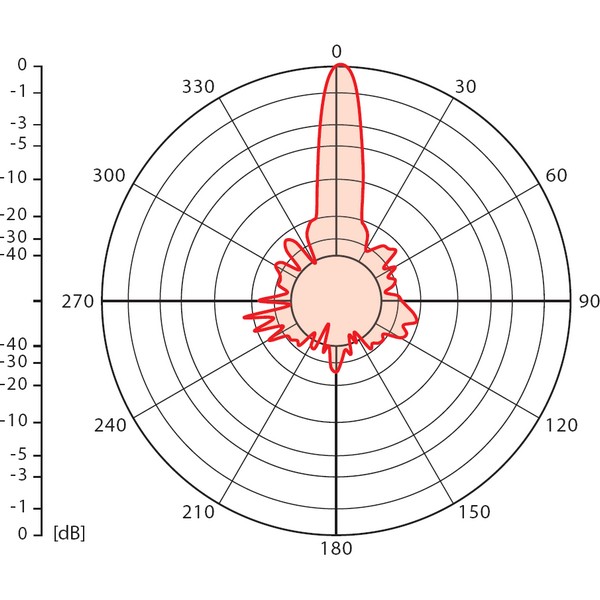

| -3 dB Beamwidth |
12,5° |
| Weight |
0.57 Kg |
| Material |
Alumimium + ABS |
| Frequency Band |
5470 - 5725 MHz |
| Gain |
19 dBi |
| Connector |
N - Female |
| Polarization |
Horizontal / Vertical |
| Impedance |
50 Ω |
