Antenna 5.xGHz » AM-5G19-120

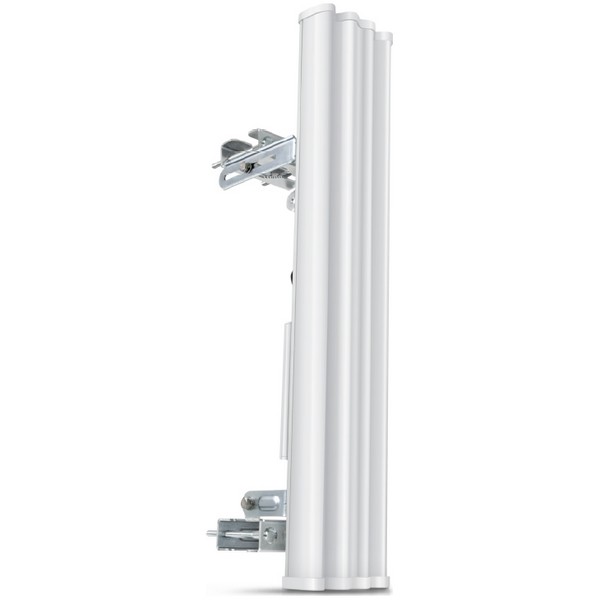

UBNT AM-5G19-120, 5Ghz 19dBi, 120deg AirMax BaseStation Sector
[AM-5G19-120]
Price: 116,84€
 Order or Qty  Price
 > 500€  5+   115,67€
 > 1000€  10+   114,50€
 > 2000€  20+   113,33€
 > 5000€  40+   112,17€
 > 10000€  100+   111,00€
Prices exclude VAT

UBNT AM-5G19-120, 5Ghz 19dBi, 120deg AirMax BaseStation Sector

In Stock: 5
Order Qty:

AM-5G19-120

Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world.

Instantly pair with Rocket M2 to create a powerful AirMax 2x2 MIMO PtMP BaseStation.

Rocket mount and weatherproof RF jumpers included.

Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together.

Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

Specifications:
Frequency Range: 5.15-5.85 GHz
Gain: 18.6-19.1 dBi
Polarization: Dual Linear
Cross-Pol Isolation: 28dB min
Max VSWR: 1.5:1
Hpol Beamwidth (6dB):   123°
Vpol Beamwidth (6db): 123°
Elevation Beamwidth
Electrical Downtilt:
ETSI Specification: EN302 326 DN2
Dimensions: 700 x 145 x 93 mm
Weight: 5.9Kgr
Windloading: 160mph


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
