PoE » Passive Injector » EZ-POEPA04
Passive 10/100 PoE Injector - cat6
[1739][EZ-POEPA04]
The product is
no longer available
Prices exclude VAT

Passive 10/100 PoE Injector - cat6

EZ-POEPA04

Features:

  • Cat6 Cable
  • Shielded RJ45 Jack
  • RJ45 Input / Output connector
  • Input / Output common ground
  • Power / Data Combiner
  • Ethernet switches expand to Wireless AP

Product Links:
Datasheet Datasheet

Input / Output Specifications :
DC Input Voltage 12v-48v ± 5 %
DC Output Voltage
12v-48v ± 5 %
Output Power 20W Max.
Over Current Protection None
General Specifications:
Operating Temperature 0°C ~ +50°C
Storage Temperature -20°C ~ +70°C
Humidity Up to 90%
Weight 50gr

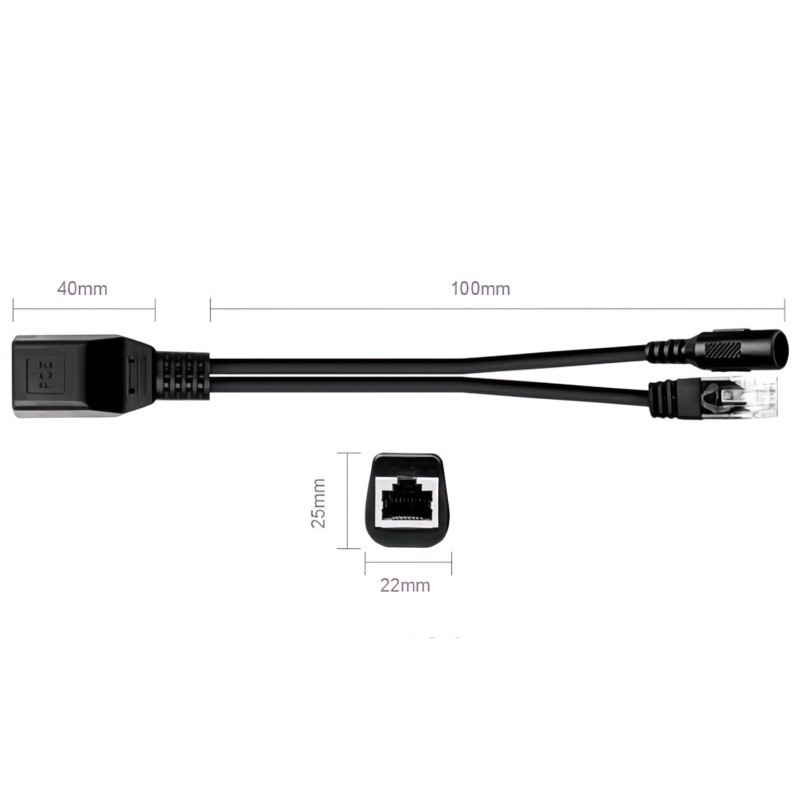

Dimensions 160x22x21mm
Output Pins
RJ-45 Jack		 Input Pins
RJ-45 Plug
1 Tx(+) Tx(+) 1
2 Tx (-) Tx (-) 2
3 Rx (+) Rx (+) 3
4 V+ N.C. 4
5 V+ N.C. 5
6 Rx (-) Rx (-) 6
7 GND N.C. 7
8 GND N.C. 8

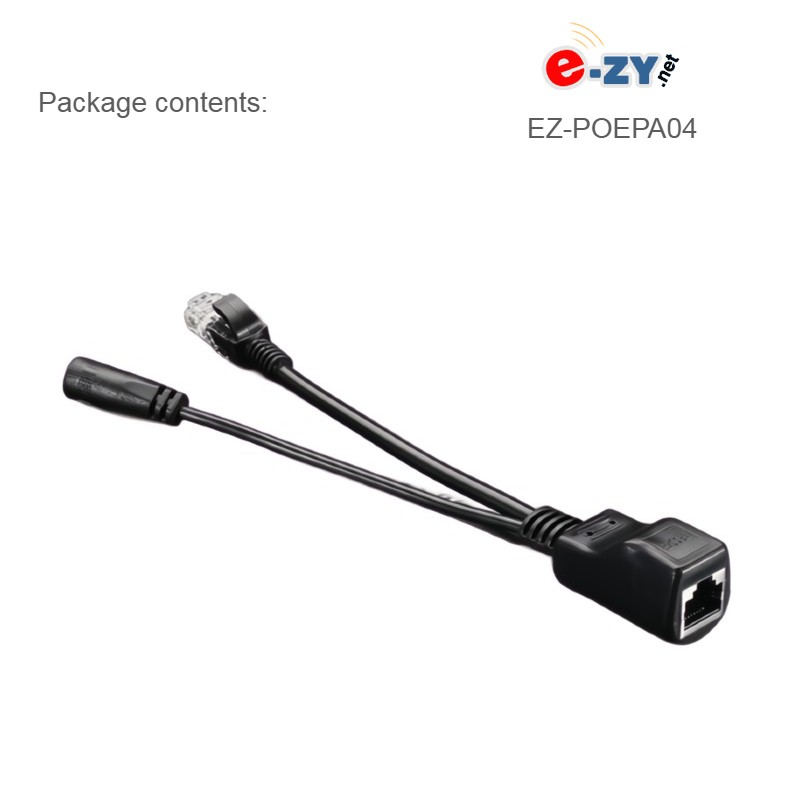

Package Contents:
1 x EZ-POEPA04

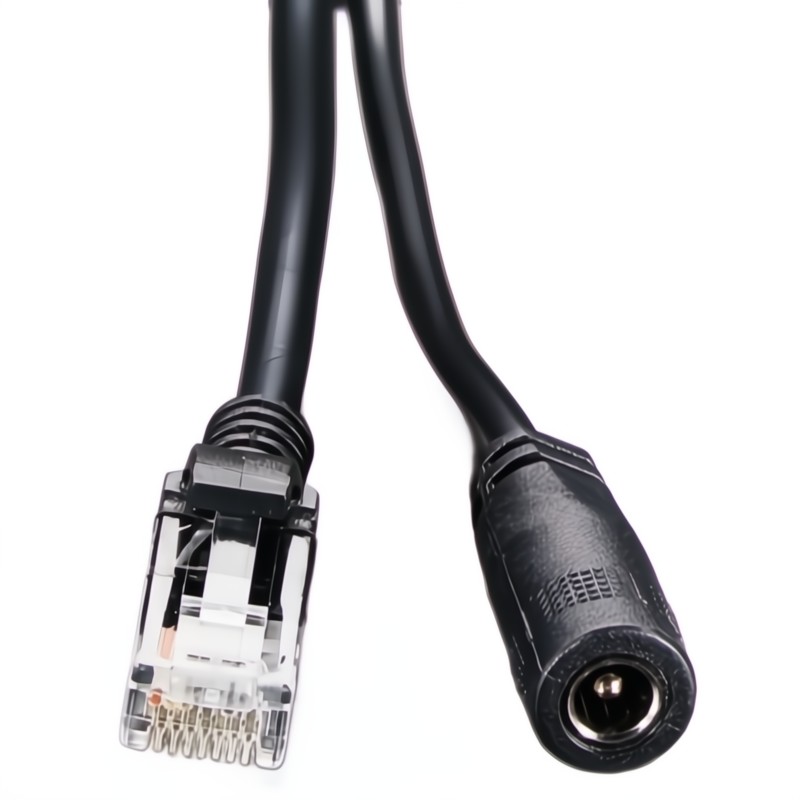

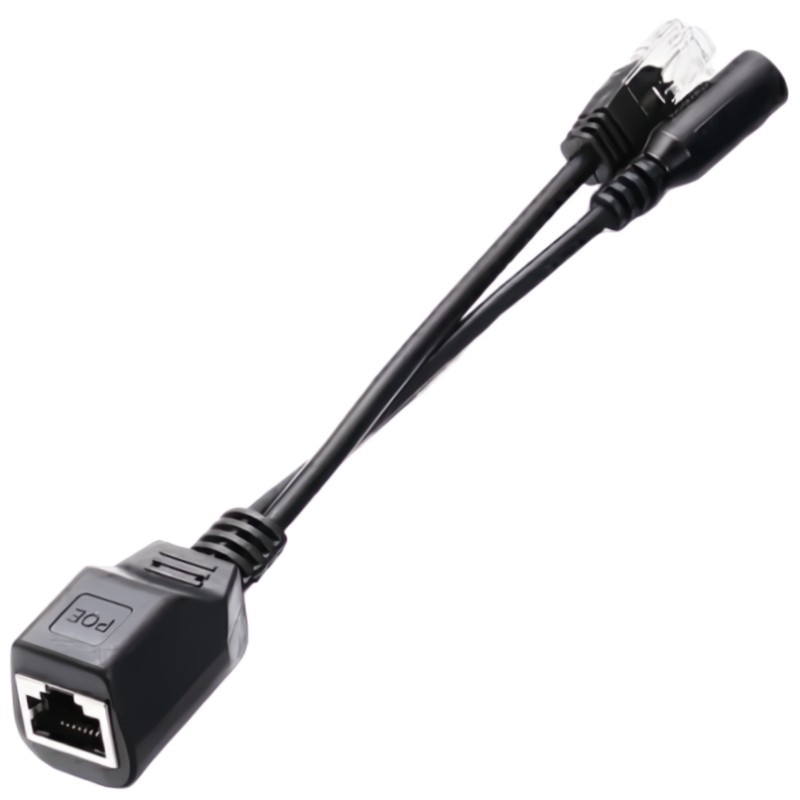

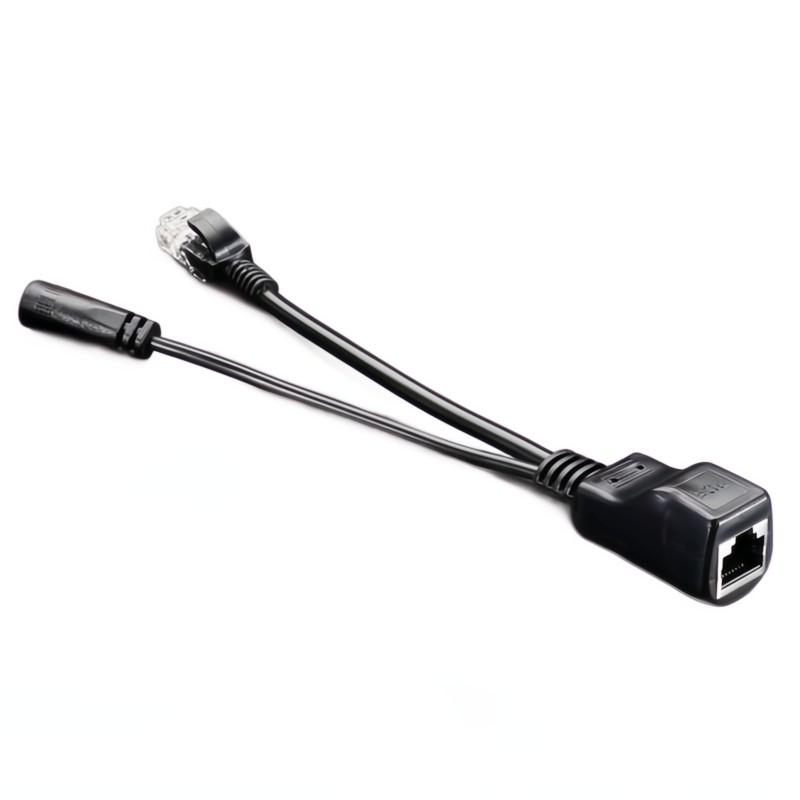

Additional Images:
Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
