Aerial.net :: 5.3GHz-5.8GHz, 29dBi Extreme Solid Dish with Radome

Antenna 5.xGHz » Solid Dish » 02-PR-MEX29

5.3GHz-5.8GHz, 29dBi Extreme Solid Dish with Radome
[1042][02-PR-MEX29]

The product is
no longer available

Prices exclude VAT

Description of product:

Professional parabolic antenna with 29dBi gain, it's directivity excels on suppression of rear and side lobes, the heart of the dish consists of a Pacific Wireless irradiator and the antenna mount is made of galvanized steel sheet with a 3mm thickness for maximum strength. Collar improves resistance to multiple antenna interference at one location. The antenna's mounting range is 40 ° in the vertical plane. Each dish's VSWR is measured.

Product Links:
Datasheet

Technical Specifications:
Gain	29dBi
Frequency	5.3 to 5.8 GHz
Polarization	Horizontal, Vertical
Front to Back Ratio	>30 db
Beam Angle (H/V)	6°/6 °
VSWR	<1.5
Impedance	50ohm
Completion	N-Female
Diameter	595mm
Weight	3.5 kg
Pole Diameter	28-66 mm

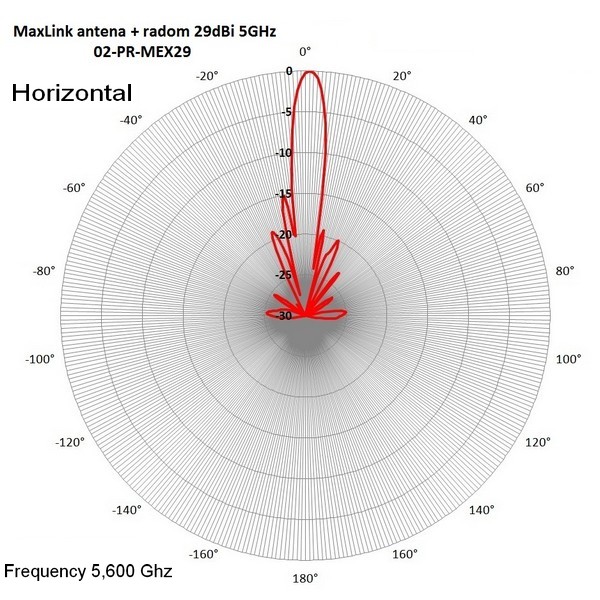

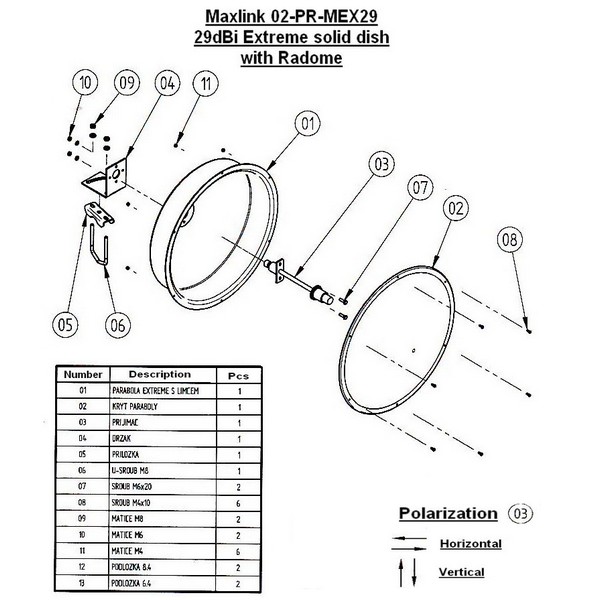

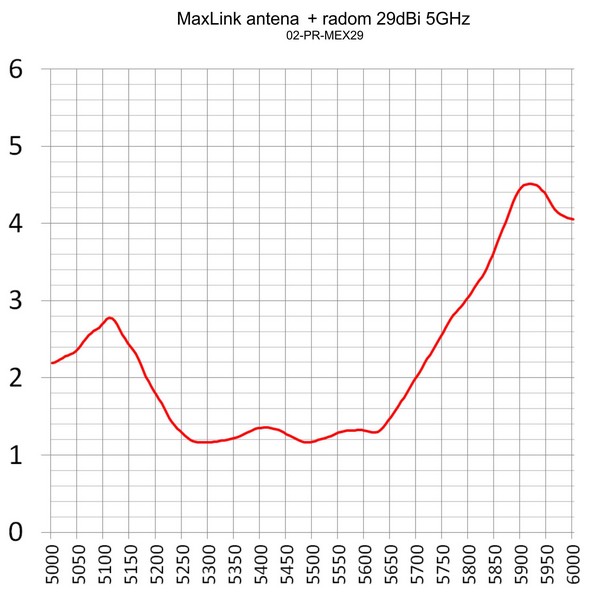

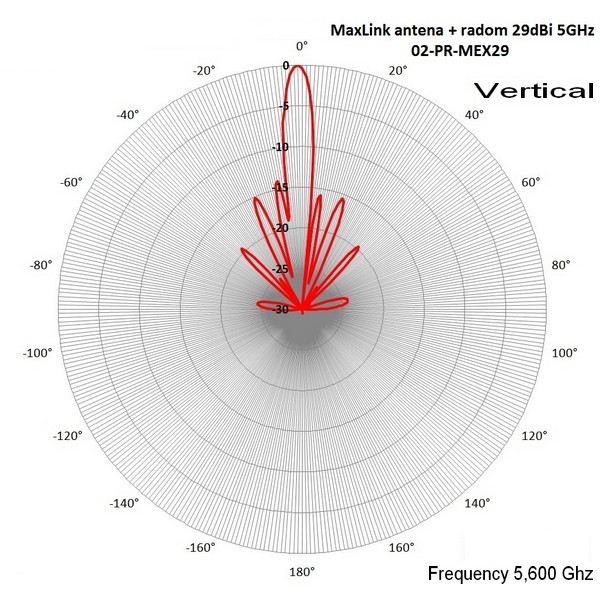

Additional Images:

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	12 month(s)
