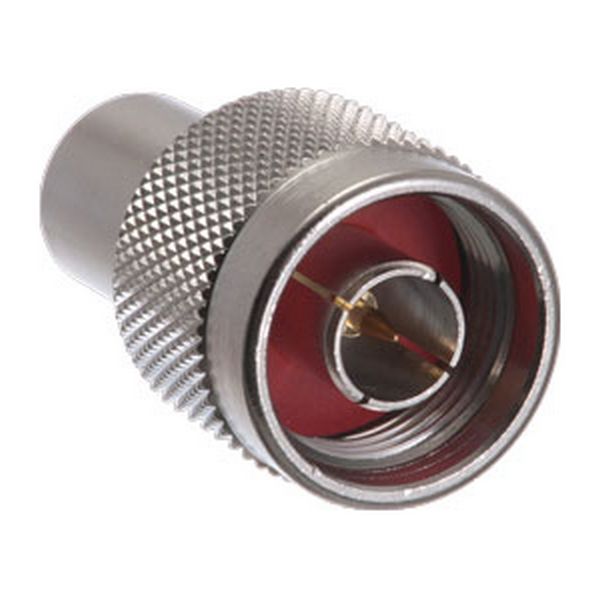

Connector - Adapter » N-Type Connector » EZ-NM400
N-Type Male Crimp connector for 400, RG-8 series cable
[EZ-NM400]
Price: 1,23€
 Order or Qty  Price
 > 500€  5+   1,21€
 > 1000€  10+   1,18€
 > 2000€  20+   1,16€
 > 5000€  50+   1,13€
 > 10000€  100+   1,11€
Prices exclude VAT

N-Type Male Crimp connector for 400, RG-8 series cable

No Stock
Order Qty:

N-Type Male Crimp connector for 400, RG-8 series cable

N Series coaxial connectors are medium-sized, threaded coupling connectors designed for use from DC to 11 GHz.

Their consistently low broadband VSWR have made them popular over the years in many applications.

The N series connector is impedance matched to 50 ohm cables.

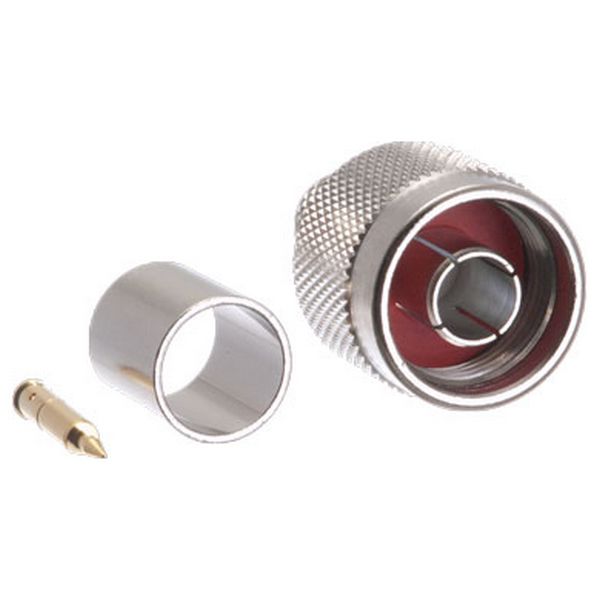

Materials/Finish :
Body Brass Nickel
Center Pin Bronze Gold
Crimp Tube Annealed Copper Nickel
Dielectric Teflon n/a
Specifications :
Impedance 50 ohm
Frequency Range 0 to 11.0 GHz
VSWR 1.3 max
Working Voltage 1,000 volts rms max at sea level
Dielectric Withstanding Voltage 2,500 volts rms max at sea level
Contact Resistance center contact=1.0 Milliohms max
outer contact=1.0 Milliohms max
Insertion Loss 0.3 dB max at 10 GHz
Insulation Resistance 5,000 Megohms min
Connector
N-type
Female thread
Male center pin

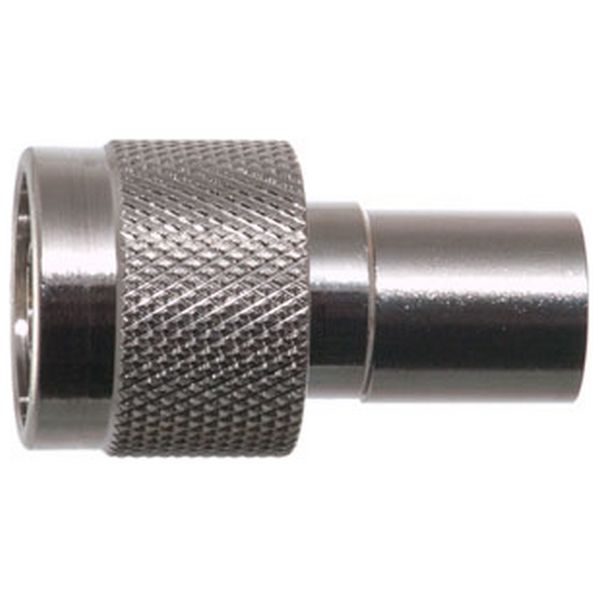

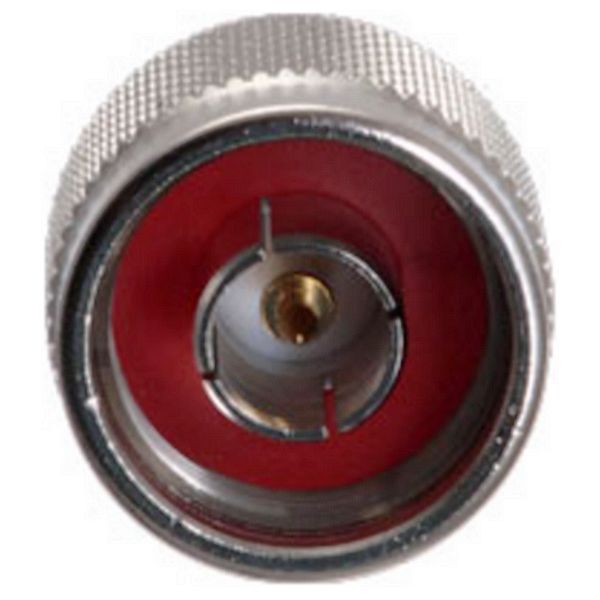

Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
