Performance Breakthrough :
150+ Mbps real outdoor throughput and up to 15km+ range. Featuring 2x2 MIMO technology, the new NanoStation links significantly faster and farther than ever before.
New Leading-Edge Industrial Design:

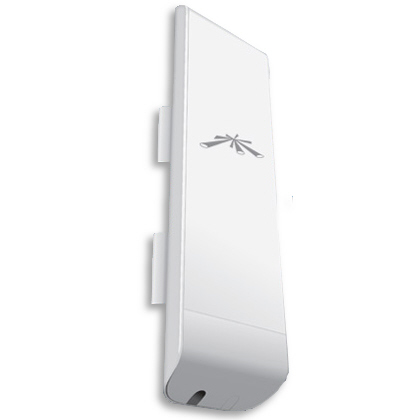

The original NanoStation set the bar for the world's first low-cost and efficiently designed outdoor broadband CPE. The new NanoStation M and NanoStation Loco M take the same concept to the future with new redesigned sleek and elegant form-factors.
Next-Gen Antenna Design:
New antenna array designs featuring 16dBi dual-polarity gain at 5GHz and 11dBi dual-polarity 11dBi at 2.4GHz. Both with optimized cross-polarity isolation and in a compact form-factor.
Dual Ethernet Connectivity:
The New NanoStation M provides a secondary ethernet port with software enabled POE output for seamless IP Video integration.
Intelligent POE:
Remote hardware reset circuitry of NanoStation M allows for device to be reset remotely from power supply location. In addition, any NanoStation can easily become 802.3af 48V compliant through use of Ubiquiti's Instant 802.3af adapter.
AirOS V:
Version 5 of Ubiquiti's AirOS builds upon the market leading intuitive user-interface loaded with advanced wireless configurations and routing functionality.
|
System Information : |
|
Processor Specs |
Atheros MIPS 24KC, 400MHz |
|
Memory Information |
32MB SDRAM, 8MB Flash |
|
Networking Interface |
2 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface |
|
Regulatory / Compliance information : |
|
Wireless Approvals |
FCC Part 15.247, IC RS210, CE |
|
RoHS Compliance |
YES |
|
Physical - Electrical - Environmental : |
|
Enclosure Size |
29.4 cm x 8 cm x 3cm |
|
Weight |
0.4kg |
|
Enclosure Characteristics |
Outdoor UV Stabalized Plastic |
|
Mounting Kit |
Pole Mounting Kit included |
|
Max Power Consumption |
8 Watts |
|
Power Supply |
15V, 0.8A surge portection integrated POE adapter included |
|
Power Method |
Passive Power over Ethernet (pairs 4,5+; 7,8 return) |
|
Operating Temperature |
-30C to +80C |
|
Operating Humidity |
5 to 95% Condensing |
|
Shock and Vibration |
ETSI300-019-1.4 |
|
INTEGRATED 2x2 MIMO ANTENNA : |
|
Frequency Range |
4.9-5.9 GHz |
|
Gain |
14.6-16.1dBi |
|
Polarization |
Dual Linear |
|
Cross-pol Isolation |
22dB minimum |
|
Max VSWR |
1.6:1 |
|
H-pol Beamwidth |
43 deg. |
|
V-pol Beamwidth |
41 deg. |
|
Elevation Beamwidth |
15 deg. |
|
