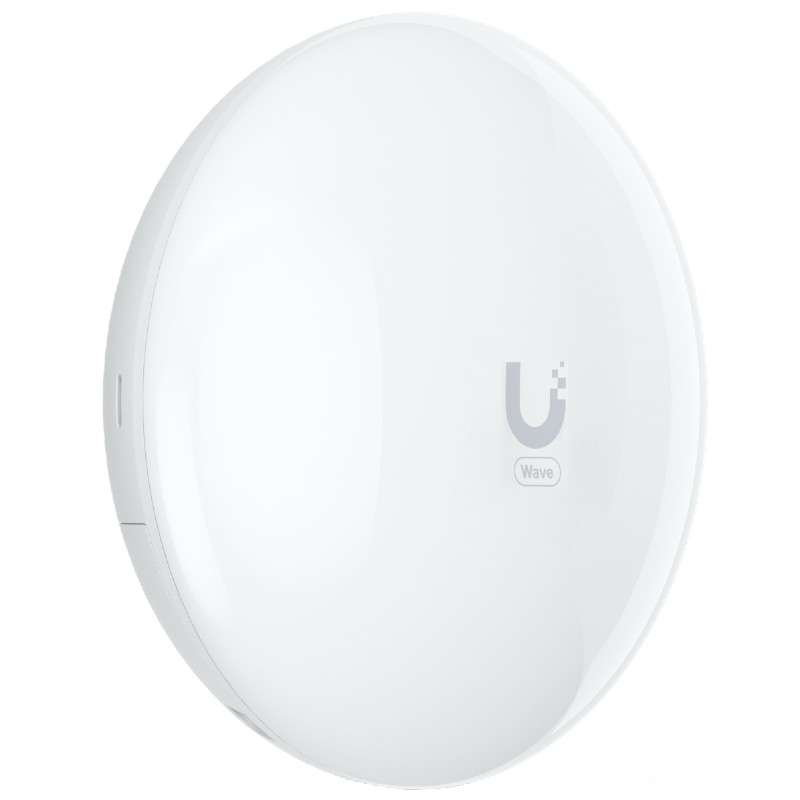

Wave-Pico - Wave Pico
Lightweight, compact 60 GHz PtMP station powered by Wave Technology.
|
Specifications: |
|

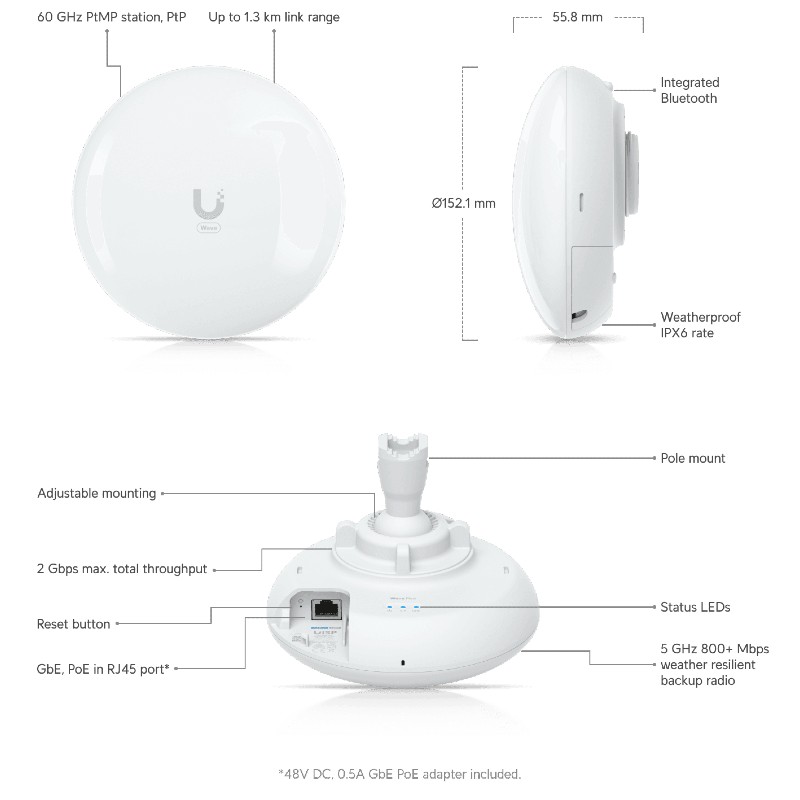

Dimensions |
Ø152.1 x 55.8 mm |
|
Weight |
Without mount: 347 g
With mount: 409 g |
|
Enclosure material |
UV stabilized polycarbonate |
|
Mount material |
UV stabilized polycarbonate |
|

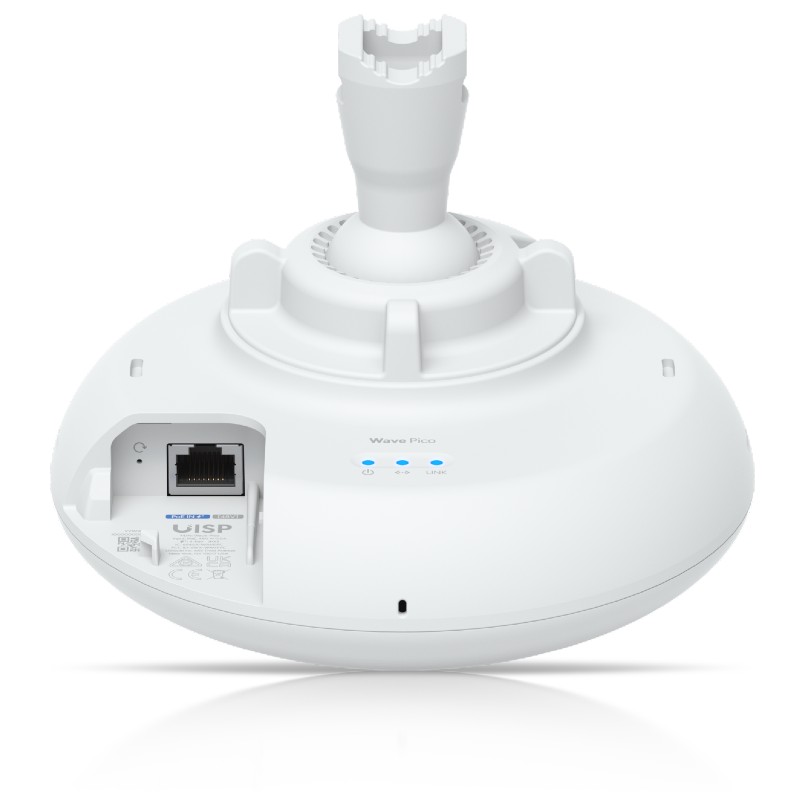

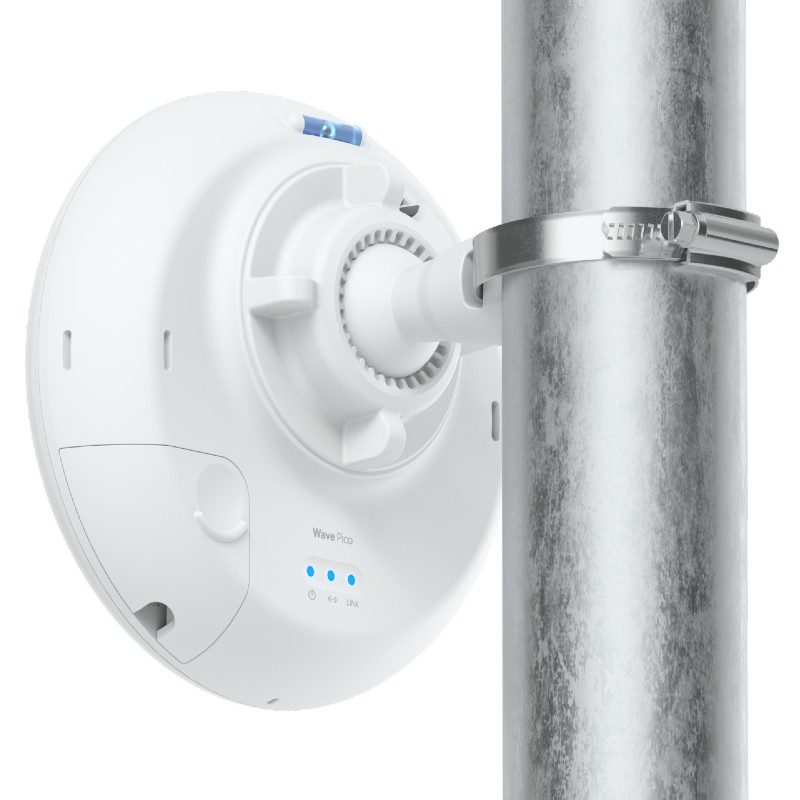

Pole mount diameter |
20 to 53.1 mm on pipe outer diameter |
|
Wind loading |
31.3 N at 200 km/h |
|
Weatherproofing |
IPX6 |
|
Hardware: |
|
Processor |
Dual-core ARM® Cortex®-A53 at 1 GHz |
|
Memory |
DDR3L 512 MB |
|
Networking interface |
(1) GbE RJ45 port |
|
Max. power consumption |
10W |
|
Power method |
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8 -)
Passive PoE 2-pairs (4, 5+; 7, 8 -), for 44–54V DC only |
|
Power supply |
48V DC, 0.5A gigabit PoE adapter (Included)
Can be powered by a UISP Router or UISP Switch |
|
Supported voltage range |
44–54V DC
22–27V DC |
|
GPS |
No |
|
Button |
Factory reset |
|
LEDs |
Power, Ethernet, link |
|
Ambient operating temperature |
-40°C to 60°C |
|
Ambient operating humidity |
5 to 95% noncondensing |
|
Certifications |
FCC, IC, CE |
|
Software |
|
Operating mode |
PtMP station, PtP |
|
Ubiquiti specific features |
Wave AI, discovery protocol |
|
Services |
UISP, ping watchdog, NTP client, SNMP |
|
Network |
Bridge/Router mode (Router is available in PtMP mode). |
|
Application requirements |
UISP web: Version 2.4.61 and later
UISP mobile iOS™: Version 2.32.0 and later
UISP mobile Android™: Version 2.31.9 and later |
|
System |
|
Total throughput |
2 Gbps |
|
Max. range |
Up to 1.3 km (Wave AP)
Up to 0.9 km (Wave AP Micro) |
|
Encryption |
WPA2-PSK (AES) |
|
RF |
|
Operating frequency |
57–71 GHz |
|
Channel bandwidth |
2160, 1080, 540MHz |
|
Operating channels |
58320, 59400, 60480, 61560, 62640, 63720, 64800
65880, 66960, 68040, 69120, 70200 MHz |
|
Modulation |
16QAM, QPSK |
|
Antenna gain |
27.7 dBi |
|
Polarization |
Vertically linear |
|
Beamwidth |
Azimuth: 3 dB 6°
Elevation: 3 dB 6° |
|
Back-Up RF |
|
WiFi standard |
802.11ax (WiFi 6) |
|
Operating frequency |
5180 - 5875 MHz |
|
Channel bandwidth |
20, 40, 80 MHz |
|
Modulation |
BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2)
16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6)
256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) |
|
Antenna gain |
9 dBi |
|
Polarization |
Dual-linear |
|
Beamwidth |
Azimuth: 3 dB 50°
Elevation: 3 dB 50° |
|
Cross-pol isolation |
15 dB |
|
LEDs |
|
Power |
Flashing white: bootup in progress
White: not connected to UISP application
Blue: connected to UISP application
Flashing blue: locate in progress
Blue/white: firmware upgrade in progress |
|
Ethernet |
Flashing blue: Ethernet traffic detected |
|
Links |
White: 5 GHz link
Blue: 60 GHz link |

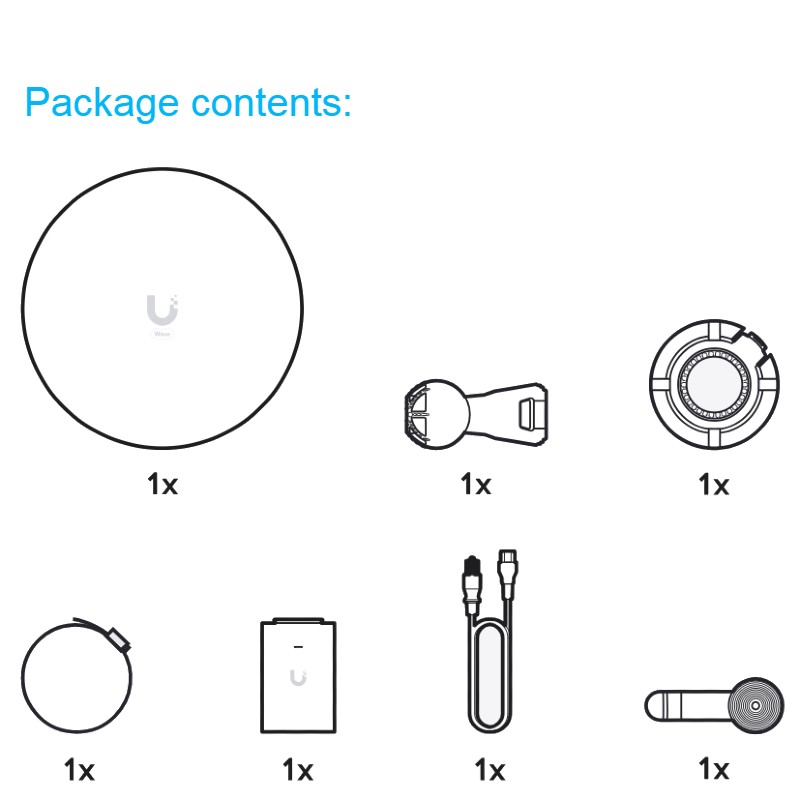

| Package Contents: |
|---|
| 1 x Wave-Pico
|
| 1 x 48V DC, 0.5A Gigabit PoE adapter
|
| 1 x AC Cable
|
| 1 x Pole mount KIT |
|
