The product is
no longer available |
| Prices exclude VAT |
|
|
| Product Details |
|---|
| PID: | 697 |
| SKU: | AVI201ZP/F36 |
| Single unit: | 27×21×12cm, 1.36 Kgs | | Carton 20pcs: | 42×53×53cm, 18.03 Kgs | | Return Policy |
|---|
| Refund: | 20 days |
| Store Credit: | 40 days |
| Warranty: | 12 months |
|

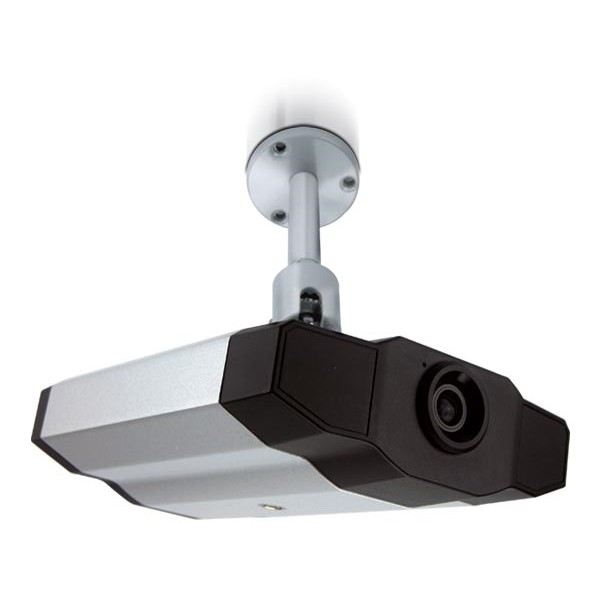

IP CameraThis camera series is a network-based digital surveillance device with a built-in web server for the purpose of remote monitoring and recording.
It supports TCP/IP networking for live video transmission in the format of MPEG4 or MJPEG, and you can easily operate the camera via the web browser or the supplied video viewer AP software.
Video surveillance over IP network infrastructure is available and easy from anywhere, at anytime.
| Features |
| Hybrid digital / analog video output |
| Motion detection |
| Low-latency video streaming for sharp and clear images |
| Network |
| LAN Port |
1 x 10/100 Based-T Ethernet |
| Supported Protocols |
DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP |
| Frame Rate |
NTSC:30, PAL:25 |
| Number of Online Users |
10 |
| Security |
Multiple user access levels with password |
| Web Management Software |
YES (Control up to 16 network cameras simultaneously) |
| Video / Audio |
| Video Compression |
MPEG4 / MJPEG |
| Video Remote Control |
YES |
| Video Adjustment |
Brightness, Contrast, Saturation and Hue |
| Camera |
| Image Sensor |
1/3.6" image sensor |
| Pixels |
738(H) x 480(V) |
| Lens |
f3.6mm / f4.6mm |
| Viewing Angle |
80° / 55.6° |
| Shutter Speed |
1 / 60 (1/50) to 1 / 100,000 sec. |
| Min Illumination |
1 Lux / F2.0 |
| Video Output |
1.0 Vp-p. 75Ω |
| BLC |
AUTO |
| White Balance |
ATW |
| Others |
| Remote Control |
YES |
| Motion Detection |
YES |
| Alarm and event Notification |
Image upload over FTP and E-mail |
| General I/O |
Alarm in x1 |
| Power |
12VDC, 0.5A |
| Operating Temperature |
0~40℃ |
| Humidity |
85% |
| Minimum PC Requirements |
‧Pentium 4 CPU 1.3 GHz or higher, or equivalent AMD
‧256 MB RAM
‧AGP graphics card , Direct Draw, 32MB RAM
‧Windows XP, Windows 2000 Server, ME, 98, DirectX 9.0 or later
‧Internet Explorer 6.x or later |
| Dimensions (mm) |
152.5 x 115.2 x 40.2 mm (6.00" x 4.54" x 1.58") (Dimensional tolerance: (± 5mm)) |
| Shipping Weight |
812 g (1.79 lbs) including mounting bracket and power supply |
| In/Out Door Use |
Indoor |
|
