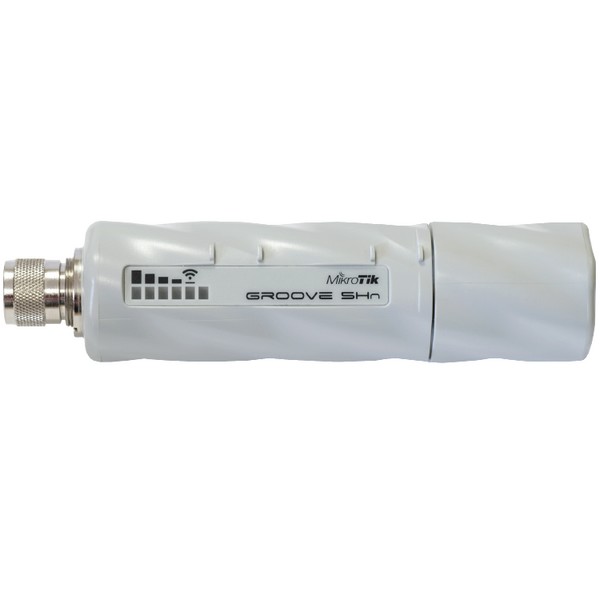

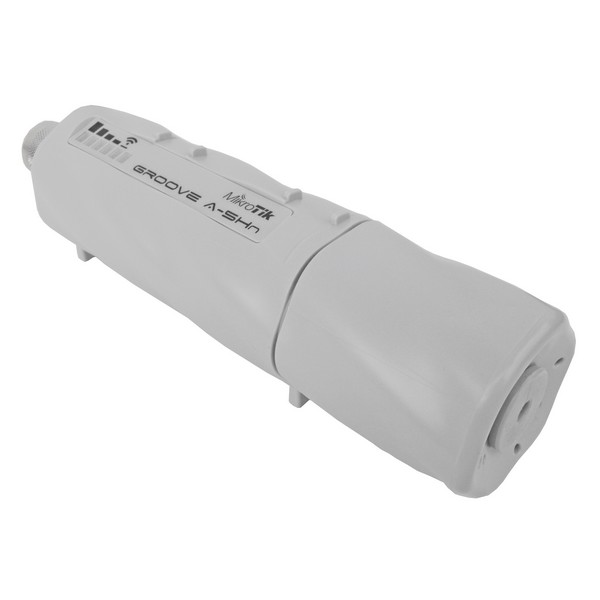

The Groove is our smallest outdoor series model - a fully featured RouterBOARD powered by RouterOS.
Weatherproof, durable and ready to use.
It has one 10/100 Ethernet port with PoE support and a built-in 200mW 802.11a/n wireless radio.
With the Nv2 TDMA technology, 100Mbit full duplex throughput is possible, limited only by the ethernet port!
The Groove 5Hn has a RouterOS Level3 license, so you can use it as a wireless client or for point to point links.

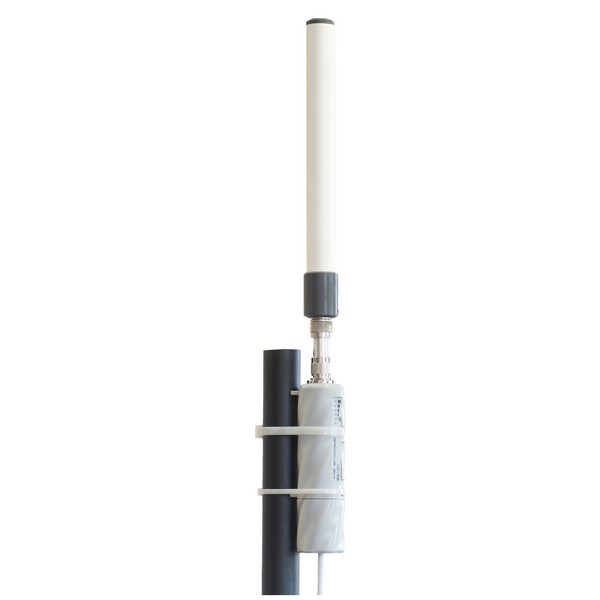

It has a built-in N-male connector, so you can attach it to an antenna directly, or use a standard antenna cable.
LED signal indicators make it easy to install and align.
The Groove runs RouterOS with all it’s features.
|
Technical Details : |
|
Product code |
Groove 5Hn |
|
Tx power |
802.11a: 23dBm @ 6Mbps to 19dBm @ 54 Mbps
802.11n: 22dBm @ MCS0 to 15dBm @ MCS7 |
|
Rx Sensitivity
|
802.11a: –93 dBm @ 6Mbps to -77 dBm @ 54 Mbps
802.11n: –93 dBm @ MCS0 to –71 dBm @ MCS7 |
|
Modulations |
OFDM: BPSK, QPSK, 16 QAM, 64QAM
DSSS: DBPSK, DQPSK, CCK |
|
CPU |
Atheros AR7241 400MHz network processor |
|
RAM |
32MB DDR SDRAM onboard memory |
|
Boot Loader |
RouterBOOT |
|
Data storage |
64MB onboard NAND memory chip |
|
Ethernet |

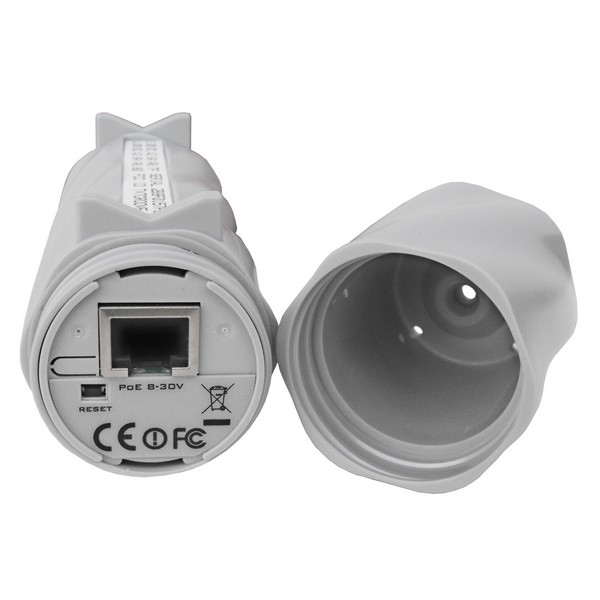

One 10/100 Mbit/s Fast Ethernet port with Auto-MDI/X, L2MTU frame size up to 2030 |
|
Wireless |
Wireless Built-in 5GHz 802.11a/n 1x1 MIMO, N-male connector |
|
Extras |
Reset switch, Beeper, Voltage monitor, Temperature monitor |
|
LEDs |
5 wireless signal LEDs, ethernet activity LED (configurable) |
|
Power options |
Passive 9-30V PoE only. 16KV ESD protection on RF port |
|
Consumption |
Up to 0,19A at 24V (4.56W) |
|
Dimensions |
177x44x44mm, 193g. Must be mounted with ethernet pointing down |
|
Operating temperature |
-30C to +70C |
|
Operating system |
MikroTik RouterOS v5, Level3 license (station or point-to-point) |
|

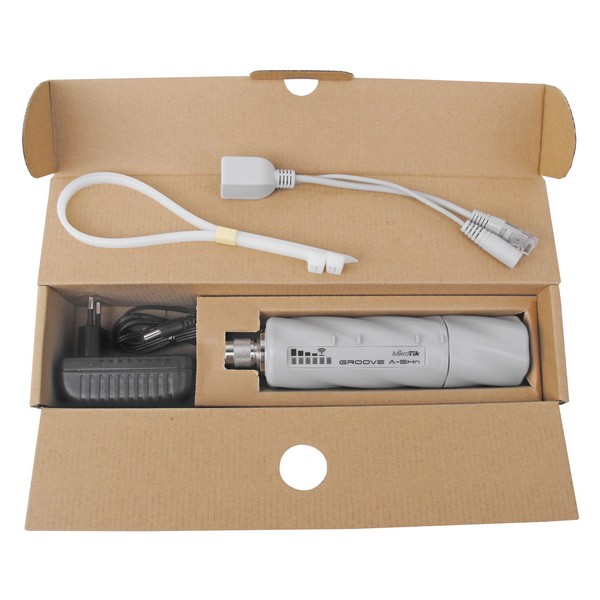

Package contains |

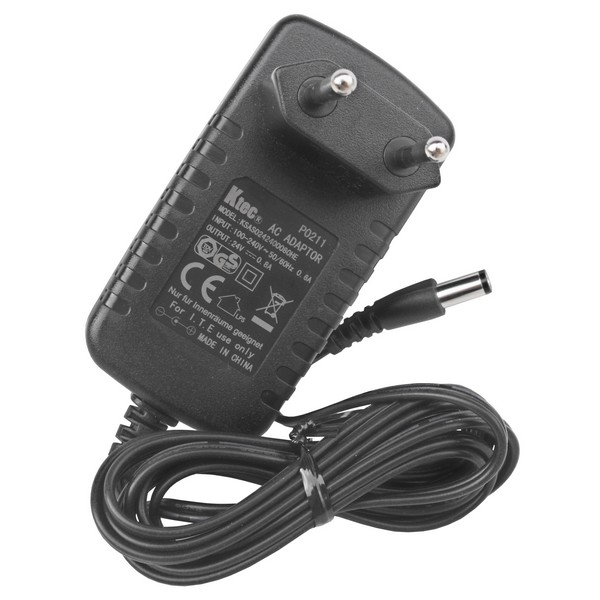

Groove 5Hn unit, mounting loops, PoE injector, 24V power adapter |
|
RouterOS License |
Level3 |
| Package Contents: |
|---|
| 1 x Groove 5Hn
|
| 1 x Power supply
|
| 1 x PoE Injector |
|
