The product is
no longer available |
| Prices exclude VAT |
|
|

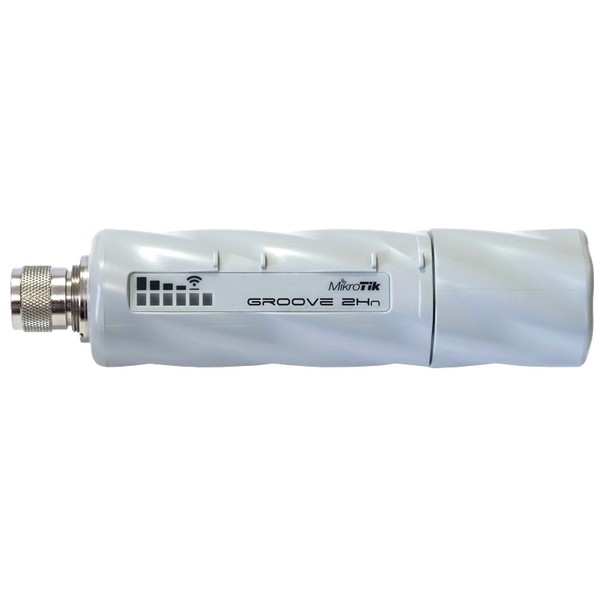

The Groove is our smallest outdoor series model - a fully featured RouterBOARD powered by RouterOS. Weatherproof, durable and ready to use. It has one 10/100 Ethernet port with PoE support and a built-in 630mW 802.11b/g/n wireless radio. With the Nv2 TDMA technology, 125Mbit aggregate throughput is possible, limited only by the ethernet port!
The Groove A-2Hn has a RouterOS Level4 license, so you can use it as a wireless access point (or as a client and for point to point links). It has a built-in N-male connector, so you can attach it to an antenna directly, or use a standard antenna cable. LED signal indicators make it easy to install and align.
|
Technical Details : |
|
Product code |
RBGrooveA2Hn |
|
Tx power |
28dBm |
|
CPU |
Atheros AR7241 400MHz network processor |
|
RAM |
64MB DDR SDRAM onboard memory |
|
Boot Loader |
RouterBOOT |
|
Data storage |
On-board NAND memory chip |
|
Ethernet |
One 10/100 Mbit/s Fast Ethernet port with Auto-MDI/X, L2MTU frame size up to 2030 |
|
Wireless |
Wireless Built-in 2.4GHz 802.11b/g/n 1x1 MIMO, N-male connector |
|
Extras |
Reset switch, Beeper, Voltage monitor, Temperature monitor |
|
LEDs |
5 wireless signal LEDs, ethernet activity LED (configurable) |
|
Power options |
Passive 9-30V PoE only. 16KV ESD protection on RF port |
|
Consumption |
Up to 0,19A at 24V (4.56W) |
|
Dimensions |
177x44x44mm, 193g. Must be mounted with ethernet pointing down |
|
Operating temperature |
-30C to +70C |
|
Operating system |
MikroTik RouterOS v5, Level4 license (station or point-to-point) |
|
Package contains |
GrooveA2Hn unit, mounting loops, PoE injector, 24V power adapter |
|
RouterOS License |
Level3 |
| Package Contents: |
|---|
| 1 x Groove A-2Hn
|
| 1 x Power supply 24V
|
| 1 x PoE Injector
|
| 1 x Mounting loops |
|
