Ubiquiti ES-48-750W, EdgeSwitch 48 750W
[1495][ES-48-750W]
The product is
no longer available
Prices exclude VAT

Ubiquiti ES-48-750W, EdgeSwitch 48 750W

UPC:810354022289

ES-48-750W

The EdgeSwitch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

It supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Two SFP ports support uplinks of up to 1 Gbps.

Also,it features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.

The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface.

Specifications:
Dimensions: 485.04 x 44.45 x 285.6 mm
Weight: 5.3 kg
Total Non-Blocking Throughput: 70 Gbps
Max. Power Consumption: 750 W
Power Method: 100-240VAC/50-60Hz, Universal Input
Power Supply: AC/DC, Internal, 750W DC
LEDs Per Port:
RJ45 Data Ports
SFP Data Ports

PoE, Speed/Link/Activity
Speed/Link/Activity

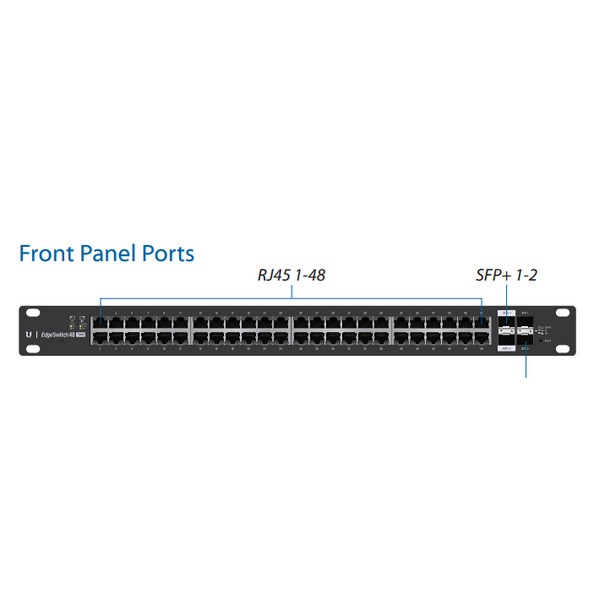

Networking Interfaces: 48x 10/100/1000Mbps RJ45 Ethernet Ports
2x 1Gbps SFP Ethernet Ports
2x 1/10Gbps SFP+ Ethernet Ports
Management Interface: Ethernet In/Out of Band
Certifications: CE, FCC, IC
Rackmount: yes, 1U
ESD/EMP Protection: Air: ±24kV, Contact: ±24kV
Operating Temperature: -5°C to 40°C
Operating Humidity: 5 to 95% Noncondensing
Shock and Vibration: ETSI300-019-1.4 Standard
PoE Per Port:
PoE Interfaces: POE+ IEEE 802.3af/at (Pins 1,2+, 3, 6-)
24VDC Passive PoE (Pins 4,5+,7,8-)
Max. PoE+ Wattage per Port by PSE:   34.2W
Voltage Range 802.3at Mode: 50-57V
Max. Passive PoE Wattage per Port: 17W
24V Passive PoE Voltage Range: 20-27V


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
