UNAS-Pro-4 - Unifi NAS Pro 4
1U rack-mount NAS with (4) 2.5/3.5" HDD bays and (2) M.2 NVMe SSD cache slots, delivering faster access, lower latency, and high-availability 10 Gbps networking for large-scale file storage and sharing.
|
Overview |
|

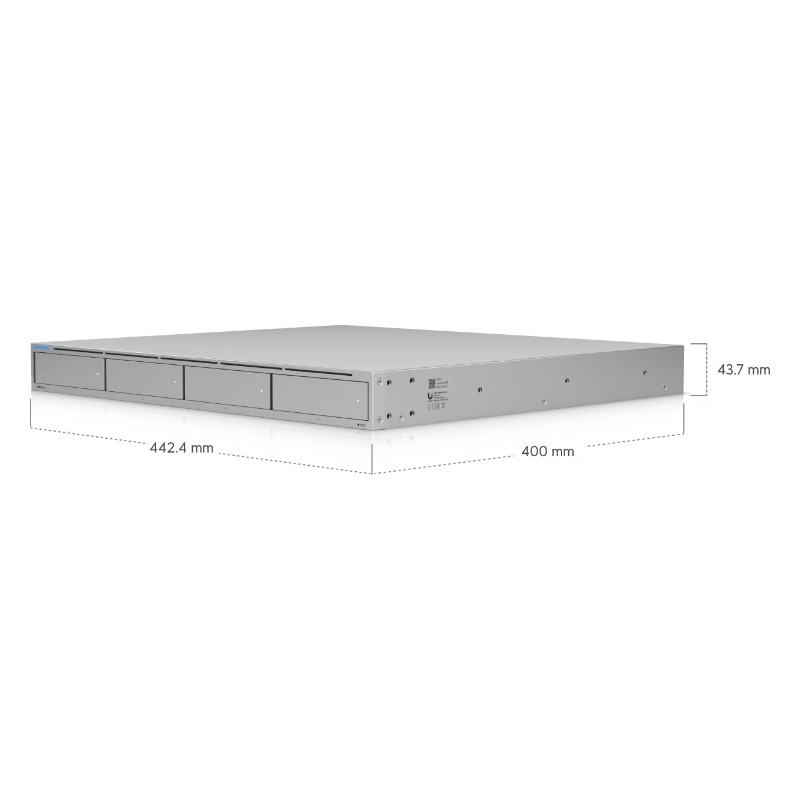

Dimensions |
442.4 x 400 x 43.7 mm |
|
Storage Capacity |
(4) 3.5" drive bays
(2) M.2 NVMe bays |
|
Networking Interface |
(2) 10G SFP+ (10G/1G)
(1) GbE RJ45 (1G/100M/10M) |
|
Power Redundancy |
✓ |
|
Form Factor |
Rack mount (1U) |
|
Hardware |
|
Hard Drive Capacity |
(4) 2.5/3.5" HDD / SSD support
(2) M.2 NVMe SSD support |
|
Max. Power Budget for Drives |
125W |
|
Max. Power Consumption |
150W |
|
Power Method |
(1) Universal AC input, 100—240V AC, 3A Max., 50/60 Hz
(1) USP-RPS DC input, 11.5V DC, 13.91A |
|
Power Supply |
AC/DC, internal, 150W |
|
Processor |
Quad-Core ARM® Cortex®-A57 at 2.0 GHz |
|
Memory |
8 GB |
|
Management |
Ethernet |
|
RF Interface |
Bluetooth 4.1 |
|
Weight |
6.7 kg (14.8 lb) |
|
Enclosure Material |
SGCC steel |
|
Mount Material |
SGCC steel |
|
LEDs |
Ethernet✓
SFP+✓
HDD✓
RPS✓
System✓ |
|
Ambient Operating Temperature |
-5 to 40° C (23 to 104° F) |
|
Ambient Operating Humidity |
5 to 95% noncondensing |
|
NDAA Compliant |
✓ |
|
Certifications |
FCC, CE, IC |

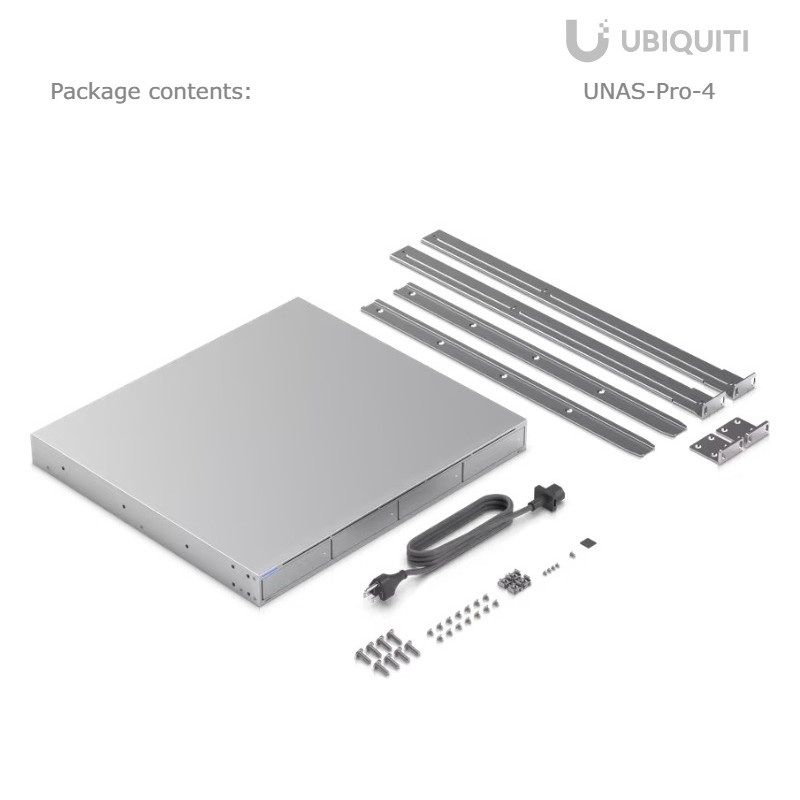

| Package Contents: |
|---|
| 1 x UNAS-Pro-4
|
| 1 x AC Cable
|
| 2 x L-Brackets
|
| 1 x Mounting kit |
|
