D-Shaped PoE Injector and 18v 0.8A Desktop PS BUNDLE
[0321][18vPoEb]
The product is
no longer available
Prices exclude VAT

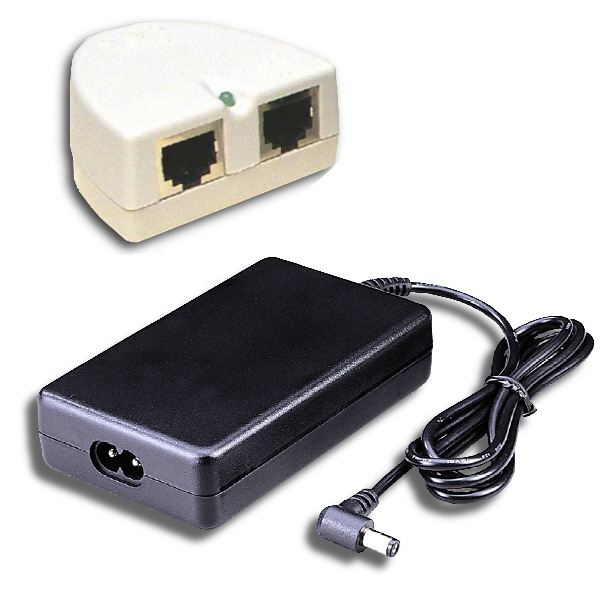

D-Shaped PoE Injector and 18v 0.8A Desktop PS BUNDLE

This bundle consists of a Passive PoE Injector and the18v 0.8A Desktop Power Supply.



PoE Injector : 18V AC adapter :
RJ45 Input / Output connector
Input / Output common ground
Power / Data Mixer
Ethernet switches exapnd to Wireless AP		 Origin: China
Desktop switching adapter.
Output: 18V DC / 800mA, 2.1 mm DC jack.
Input: 100 - 240VAC, 47 - 63 Hz, CE/UL/GS.

Product Links:
PoE Dimensions PoE Dimensions   PoE Schematics PoE Schematics   PS Datasheet PS Datasheet



Input Pins Output Pins
1 Tx(+) Tx(+) 1
2 Tx (-) Tx (-) 2
3 Rx (+) Rx (+) 3
4 N.C. V+ 4
5 N.C. V+ 5
6 Rx (-) Rx (-) 6
7 N.C. GND 7
8 N.C. GND 8

Package Contents:
1 x PoE Injector in bubble wrap
1 x Power Supply in nylon bag
1 x AC Cord (EUR or US type)

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
