Description:

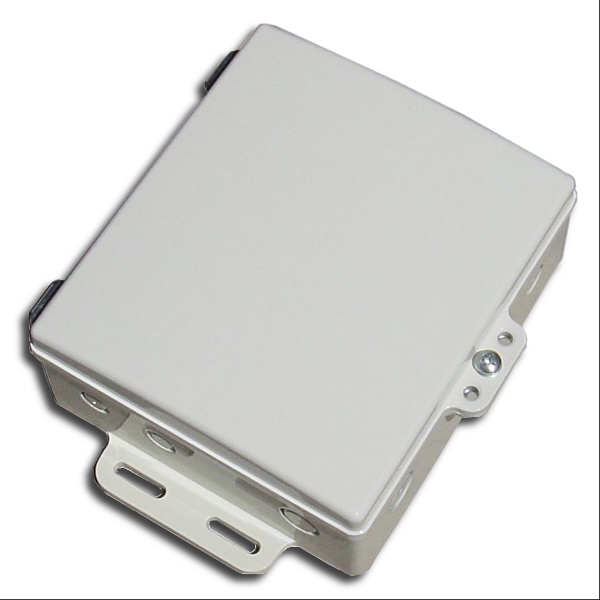

The DCE-ANT series Die Cast Aluminum Enclosures with Integrated 2.4GHz 12dBi antenna from Pacific Wireless are designed for extremely long life in outdoor environments.
The powder coat paint over aluminum construction offers nsurpassed resistance to corrosion.
The hinged cover/antenna radome is constructed of UV resistant plastic.
The pole mount hardware includes heavy galvanized pole clamps and stainless steel U-bolts and attachment nuts.
The die cast enclosure as extra heavy duty mounting flanges for reliable mounting to poles or surface mounting to walls.
The most unique feature is the inclusion of 7 engineered hole knockouts which allow for many different configurations of connectors and feedthru’s without the need for drilling holes.
The knockouts are easily removed using a center punch and hammer.
The enclosures have Qty 4 threaded ¼” tall standoffs in the base for mounting a user plate (included), which in turn can hold the users electronics.
This configuration provides universal mounting which is fully customizable by the user.

Features:
• Integrated VPOL Antennas in UV Plastic Hinged Cover.
• VSWR better than 1.5:1 across Specified Frequency Ranges
• Die Cast Aluminum Enclosure with White Epoxy Powder Coat Paint
• Qty 8 Engineered Hole Knockouts for many possible configurations.
• Qty 4 0.25” tall threaded standoffs and mounting plate for mounting of electronics inside enclosure
• Nema 6 Rated for long term Weatherproofing

NOTE : Pigtail sold seperately in our DCE-ANT pigtail section

Datasheet

Installation Instructions

Package Contents:

1 x DCE Enclosure.
1 x Aluminum cover.
8 x captive screws and washers.
2 x Mounting brackets (2 x u-bolts, 2 x clamps, 4 x hex nuts)
1 x Customer Install Plate (+ 4 screws)
1 x Panel antenna with SMA Female connector.
1 x Hinged frame.
1 x Securing bolt with washer.

This bundle contains the following products:

1 x DCE Die Cast Aluminum Outdoor Enclosure 1 x DCE 12dBi 2.4GHz Antenna Cover Kit
