AP / AP Client / WDS / WDS+AP 802.11b/g - 100mW (up to 250mw) - PoE

Overview :
The EZ1+ Series wireless Access Point, based on IEEE 802.11b/g technology, delivers access point features enabling cost effective access for mobile and fixed wireless users. In addition, the EZ1+ Series supports IEEE 802.1x compliant and RADIUS, the most up-to-date wireless security solution for applications in public places.

The standard protocol format allows WISPs (Wireless Internet Service Providers) bill the usage of their wireless services through EZ1+ Series through their RADIUS servers. Moreover, the EZ3+ Series provides standard and advanced WDS (Wireless Distribution System) bridge functionality joining LAN segments that may be geographically separated to a complete network. Up to 6 WDS bridge links work in AP function simultaneously, enabling LAN segments to be flexibly connected to mirror any network topology which a traditional wired network can achieve.

The bundled Antenna Alignment Utility provides the at-a-glance way to easily assist the antenna deployment through the friendly web based user interface. The default PoE function allows the power feeding by Ethernet cable to eliminate the additional power line requirement in special install environment.

With the sleek and intuitive Web-based user interface, the EZ1+ can be easily managed and satisfied by system integrators’ various requirements. The over all RSSI, Traffic, and Packet/Byte graphs provide all the necessary device history information over a period of 24 hours.

Manual

Datasheet

QIG

Firmware

Discovery Tool

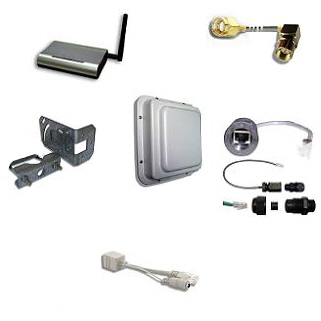

This bundle contains the following products:

1 x 2.4Ghz 15dBi Rootenna Low Profile Panel Antenna with Radio Pouch 1 x RP-SMA Plug to SMA Right Angle 25cm 1 x EZ1+_v2 100mw PoE 802.11b/g multimode Bridge 1 x Passive PoE Injector with cat5 cable
