Connector / Adapter » N-Type Connector » EZ-NB195

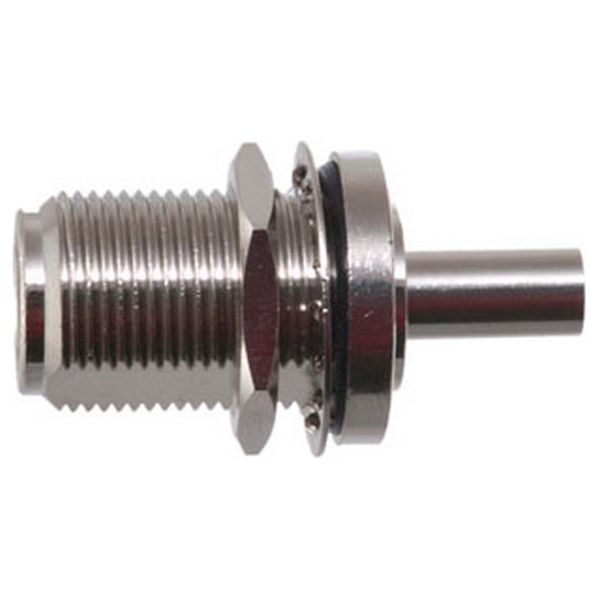

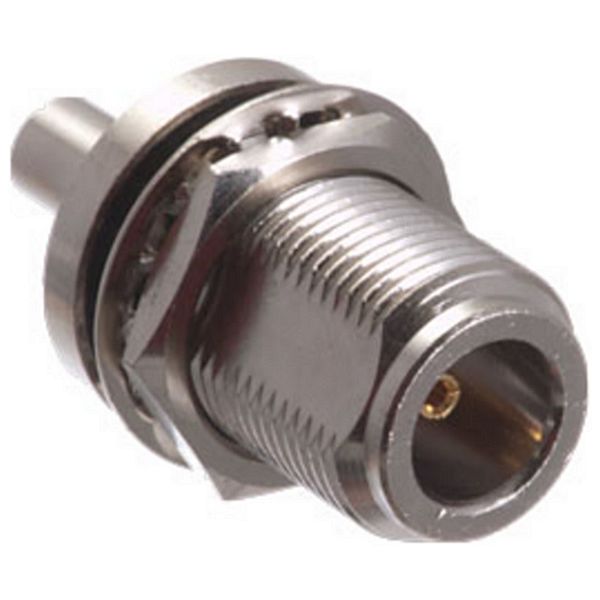

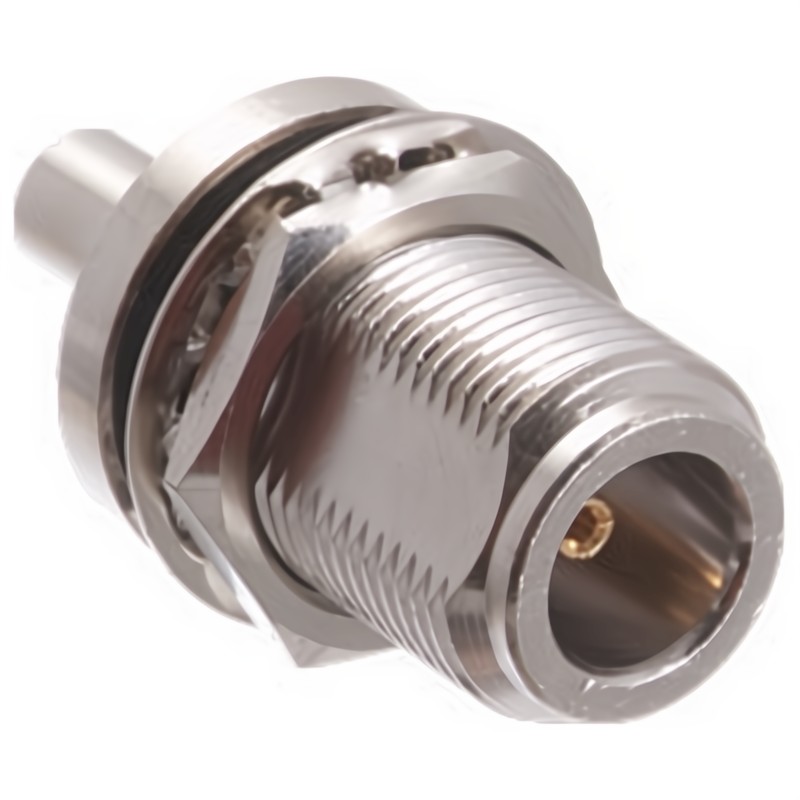

N-Type Female Bulkhead Crimp connector for 195, RG-58 series cables
[0084][EZ-NB195]
Price: 1,60€
 Order or Qty  Price
 > 500€  5+   1,57€
 > 1000€  10+   1,54€
 > 2000€  20+   1,50€
 > 5000€  50+   1,47€
 > 10000€  100+   1,44€
Prices exclude VAT

N-Type Female Bulkhead Crimp connector for 195, RG-58 series cables

In Stock: 111
Order Qty:

N-type Female Bulkhead Crimp connector for 195 series cable.

N Series coaxial connectors are medium-sized, threaded coupling connectors designed for use from DC to 11 GHz.

Their consistently low broadband VSWR have made them popular over the years in many applications.

The N series connector is impedance matched to 50 ohm cables.

Specifications:
Impedance 50 ohm
Frequency Range 0 to 11.0 Ghz
V.S.W.R. 1.3 max
Working Voltage 1,000 volts rms max at sea level
Dielectric Withstanding Voltage 2,500 volts rms max at sea level
Contact Resistance Center contact=1.0 Milliohms max
Contact Resistance Outer contact=1.0 Milliohms max
Insertion Loss 0.3 dB max at 10 Ghz
Insulation Resistance 5,000 Megohms min
Body (Material/Finish) Brass/Nickel
Center Pin (Material/Finish) Bronze/Gold
Crimp Tube (Material/Finish) Annealed Copper/Nickel
Dielectric Teflon
O-Ring Present
Connector
N-type
Male thread
Female center pin Bulkhead

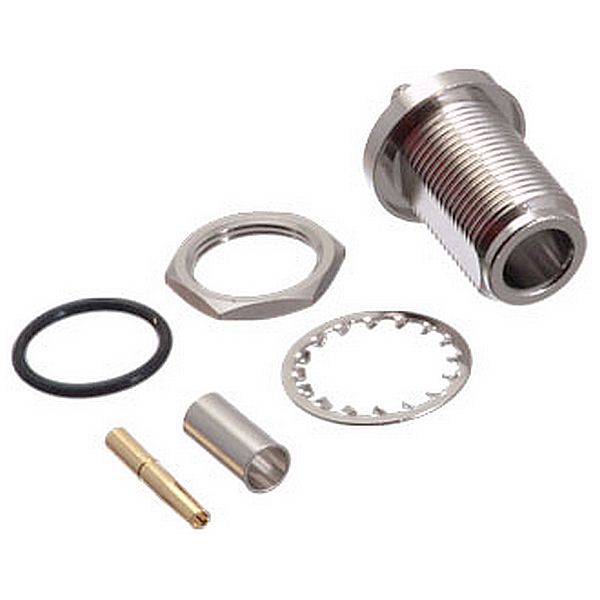

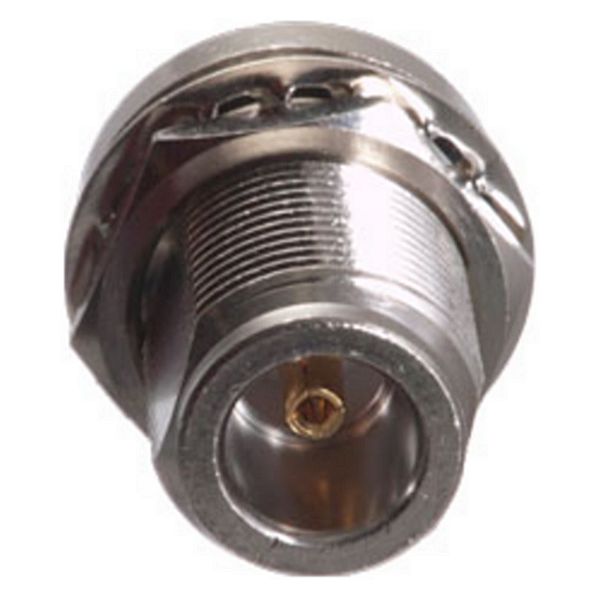

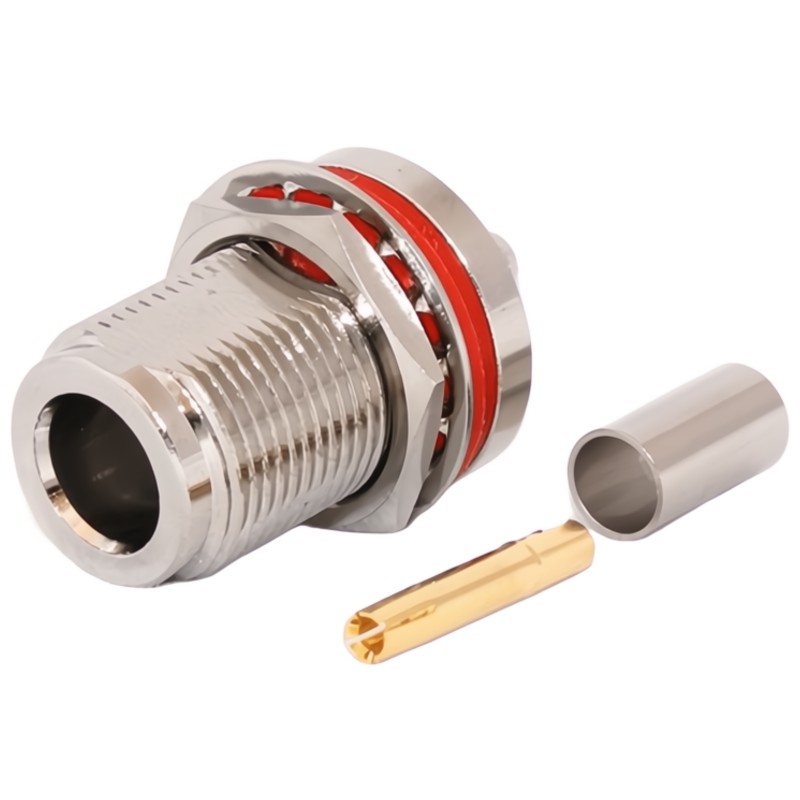

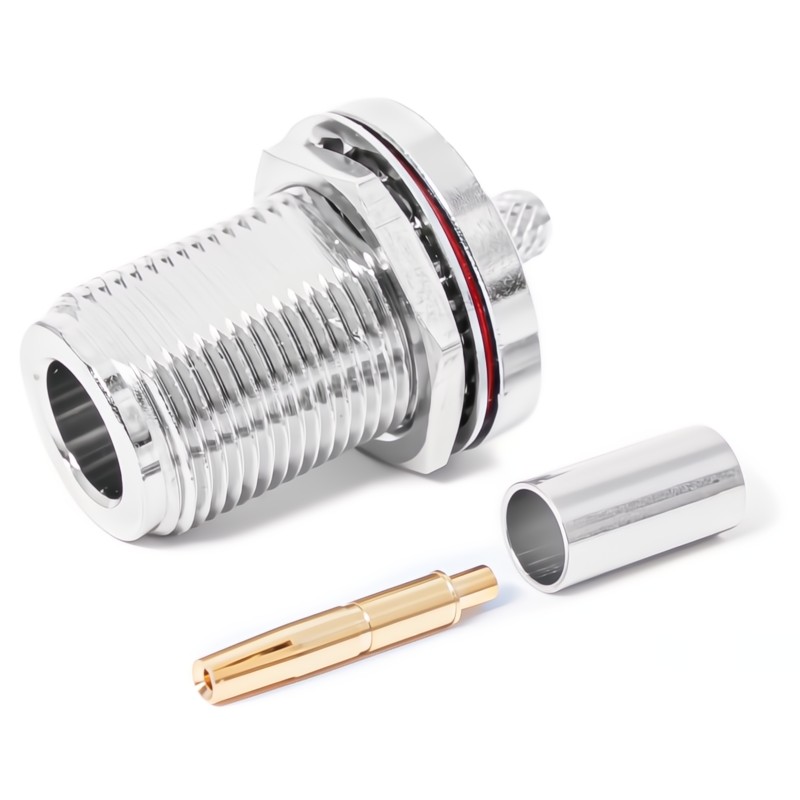

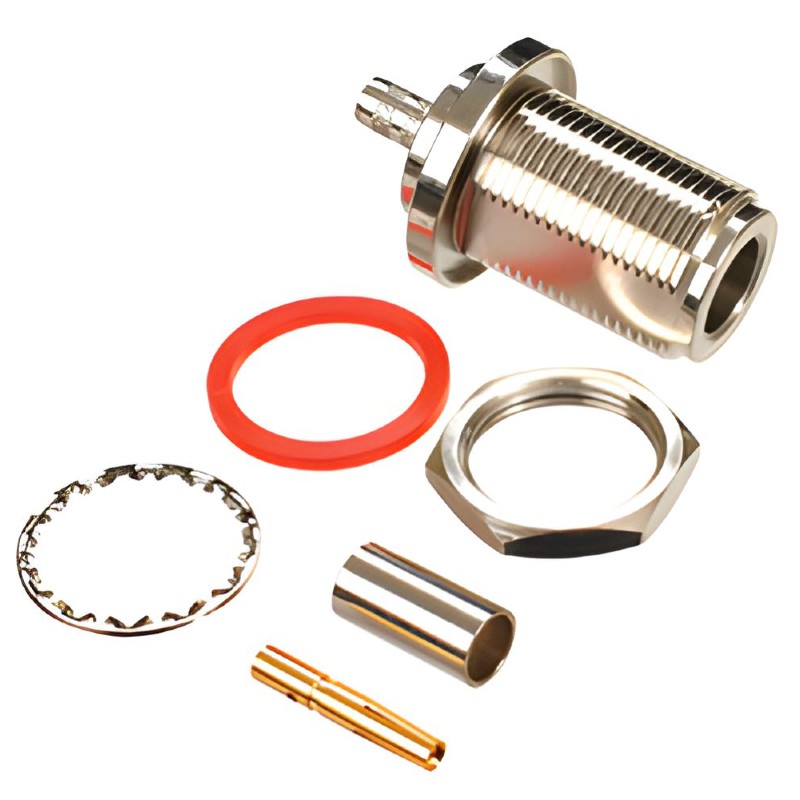

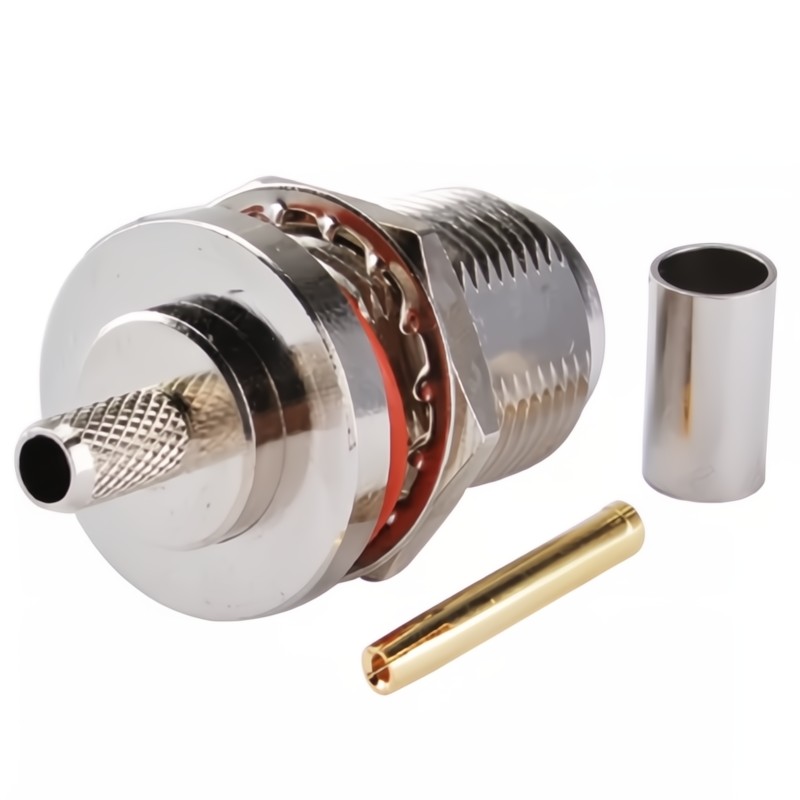

Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
