PoE » PoE Injector » EZ-POEPA04
Passive 10/100 PoE Injector - cat6
[EZ-POEPA04]
Price: 0,89€
 Order or Qty  Price
 > 500€  5+   0,87€
 > 1000€  10+   0,85€
 > 2000€  20+   0,84€
 > 5000€  40+   0,82€
 > 10000€  100+   0,80€
Prices exclude VAT

Passive 10/100 PoE Injector - cat6

In Stock: 34
Order Qty:

EZ-POEPA04

Features:

  • Cat6 Cable
  • Shielded RJ45 Jack
  • RJ45 Input / Output connector
  • Input / Output common ground
  • Power / Data Combiner
  • Ethernet switches expand to Wireless AP

Input / Output Specifications :
DC Input Voltage 48V ± 5 %
DC Output Voltage 48V ± 5 %
Max Output Current 0.4A Max.
Over Current Protection None
General Specifications:
Operating Temperature 0oC ~ +50oC
Storage Temperature -20oC ~ +70oC
Humidity Up to 90%
Weight 50gr

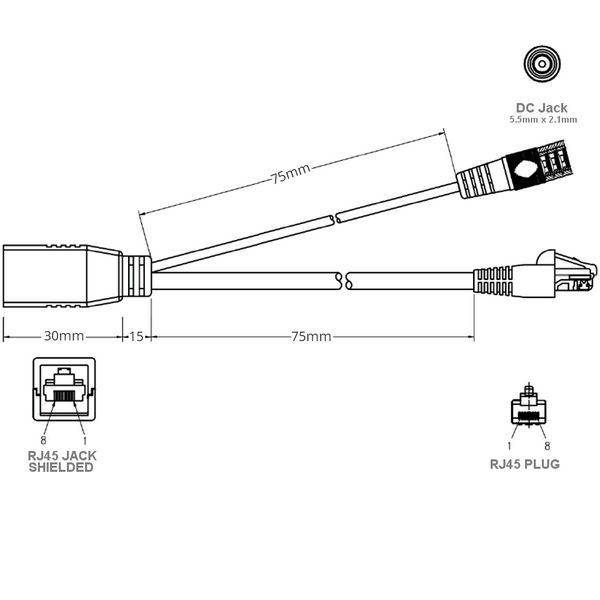

Dimensions 160x22x21mm

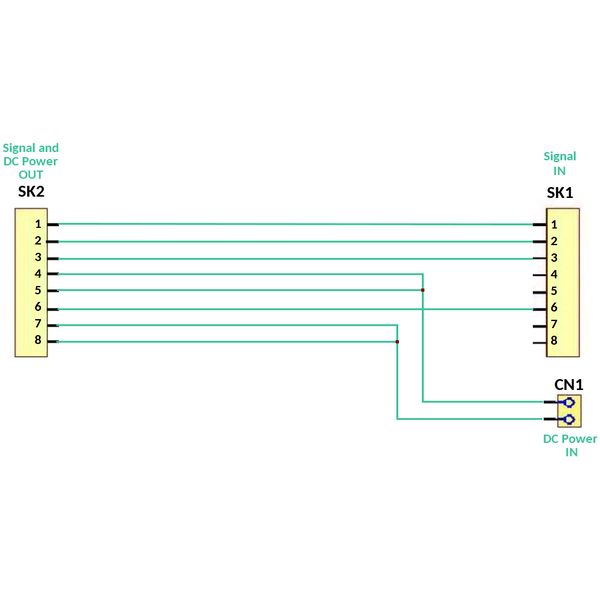

Output Pins
RJ-45 Jack
Input Pins
RJ-45 Plug
1 Tx(+) Tx(+) 1
2 Tx (-) Tx (-) 2
3 Rx (+) Rx (+) 3
4 V+ N.C. 4
5 V+ N.C. 5
6 Rx (-) Rx (-) 6
7 GND N.C. 7
8 GND N.C. 8


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
