Ubiquiti » airFiber » AF-4X
Ubiquiti AF-4X, AirFiber X 4 GHz
[2252][AF-4X]
Price: 362,62€
 Order or Qty  Price
 > 500€  5+   358,99€
 > 1000€  10+   355,37€
 > 2000€  20+   351,74€
 > 5000€  40+   348,11€
 > 10000€  100+   344,49€
Prices exclude VAT

Ubiquiti AF-4X, AirFiber X 4 GHz

No Stock
Order Qty:
UPC:810354025655

AF-4X

The airFiber X features up to 17.1 Mbps/MHz of industry-leading spectral efficiency and uses proprietary Hybrid Division Duplexing technology to achieve the highest TDD throughput available for long-range, PtP links.

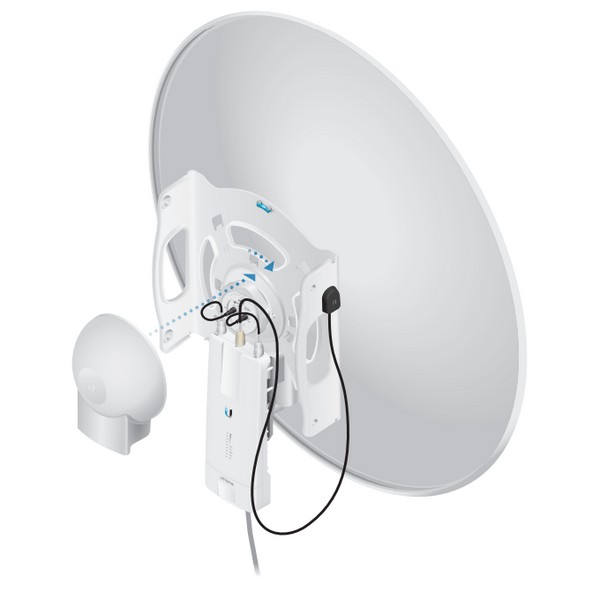

The compact form factor allows the airFiber X to be used with airFiber Slant 45 antennas, or instantly upgrade a 5 GHz Rocket link that uses a RocketDish RD‑5G30/RD‑5G34* antenna.

Channel width flexibility allows you to independently configure TX and RX channel frequencies and place them anywhere within the radio band to avoid local interference.

You also have the ability to program different uplink and downlink duty cycles to support asymmetric traffic requirements.

Specifications:
Dimensions
Radio
Box

224 x 82 x 48 mm
261 x 107 x 107 mm
Weight
Radio
Box

0.35 kg
1.1 kg

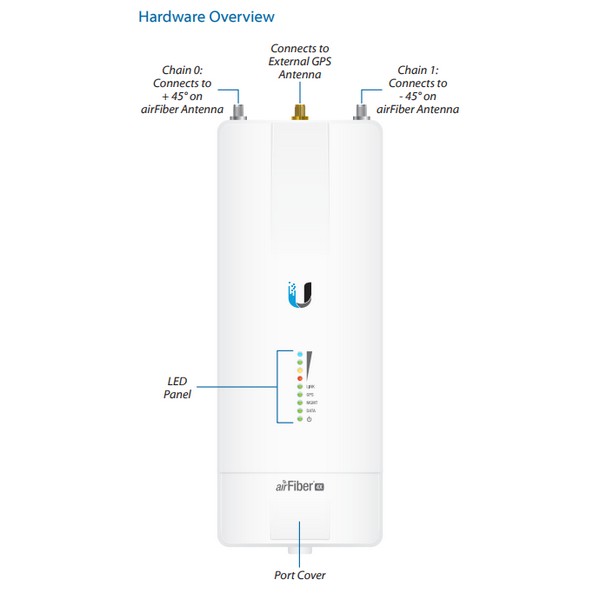

RF Connectors (2) RP-SMA Weatherproof (CH0, CH1)
(1) SMA Weatherproof (GPS)
GPS Antenna External, Magnetic Base
Power Supply 24V, 1A PoE Gigabit Adapter (Included)
Power Method Passive Power over Ethernet
Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)
Max. Power Consumption 15W @ Max. Power/Duty Cycle
Mounting airFiber X Mount (Rocket Mount Compatible)
GPS Pole Mount (Included)
Certifications CE, FCC, IC
Operating Temperature -40°C to 55°C

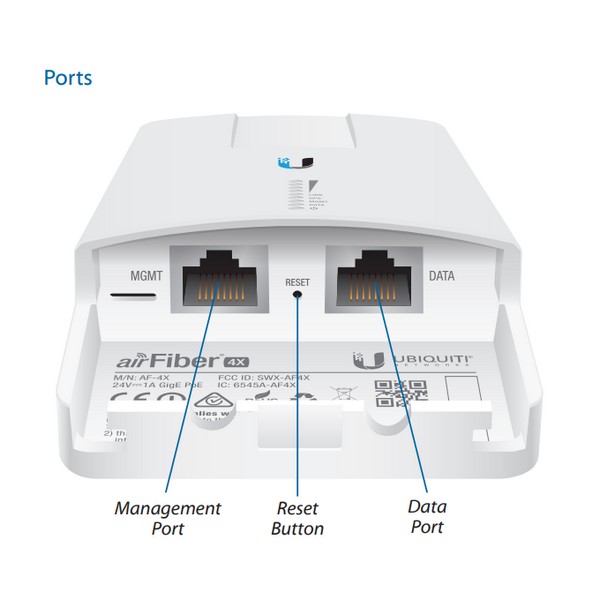

Data Port (1) 10/100/1000 Ethernet Port
Management Port (1) 10/100 Ethernet Port
Processor INVICTUS IC
Maximum Throughput 687 Mbps
Maximum Range 200+ km
Encryption 128-bit AES
OS airOS
Wireless Modes Master/Slave
Latency Half Duplex Mode < 2 ms at Full Throughput
MTU (Maximum Transmission Unit)  Up to 9600


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
