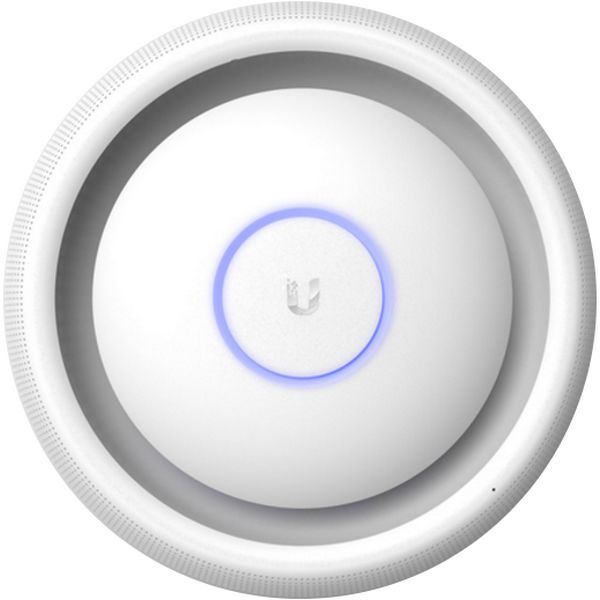

UniFi AP AC EDU (UAP-AC-EDU)

Featuring the latest Wi-Fi 802.11ac, 3x3 MIMO technology, the UniFi AC EDU AP conveniently integrates Wi-Fi and public address capabilities, making it ideal for campus-wide deployment.

802.11ac Dual-Radio AP with Public Address System

Make announcements over Wi-Fi — no separate hardware needed.

The UniFi AC EDU AP provides high-quality sound with accurate voice reproduction.

The UniFi AC EDU AP supports simultaneous dual-band, 3x3 MIMO technology in the 2.4 and 5 GHz radio bands for up to 1750 Mbps.

Product Links:
Datasheet	Quick Start Guide	UniFi Controller

Specifications:
Dimensions:	287.5 x 287.5 x 125.9 mm
Weight:	1800 g

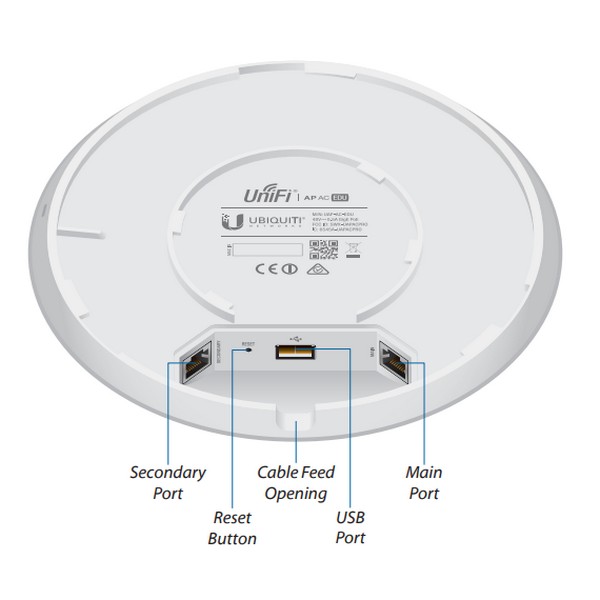

Ports:	Ethernet (Auto MDX, auto-sensing 10/100/1000 Mbps)
Buttons:	Reset
Antennas:	3 Integrated, 3 dBi each (supports 3x3 MIMO with spatial diversity)
Wi-Fi Standards:	802.11 b/g/n/ac
Power Method:	Passive Power over Ethernet (48V)

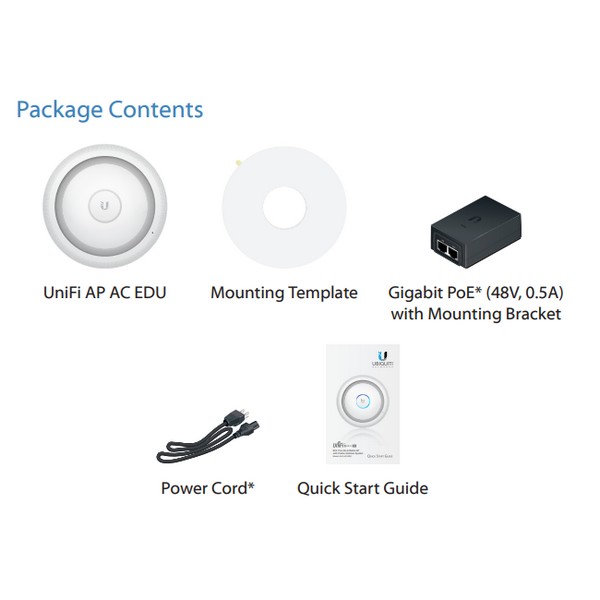

Power Supply:	48V 0.5A PoE Adapter included
Maximum Power Consumption:	20 W
Max TX Power: 2.4 GHz 5 GHz	22 dBm 22 dBm
BSSID:	Up to four per radio
Power:	Save Supported
Wireless Security:	WEP, WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i
Certifications:	CE, FCC, IC
Mounting:	Wall/Ceiling (Kits included)
Operating Temperature:	-10°C to 70°C
Operating Humidity:	5% - 95% Noncondensing
Advanced Traffic Management:
VLAN:	802.1Q
Advanced QoS:	WLAN prioritization
Guest Traffic Isolation:	Supported
WMM:	Voice, video, best effort, and background
Concurrent Clients:	200+
Supported Data Rates (Mbps):
802.11a:	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n:	MCS0 - MCS23 (6.5 Mbps do 450 Mbps), HT 20/40
802.11ac:	MCS0 - MCS9 (6.5 Mbps do 867 Mbps), VHT 20/40/80
802.11b:	1, 2, 5.5, 11
802.11g:	6, 9, 12, 18, 24, 36, 48, 54
Loudspeaker Acoustics:
Sensitivity:	94 dB (1W/1m)
Maximum SPL:	103 dB @ 1m
Frequency Response:	100 - 20000 Hz
Type:	Two-Way Speaker with Second-Order HP Filter

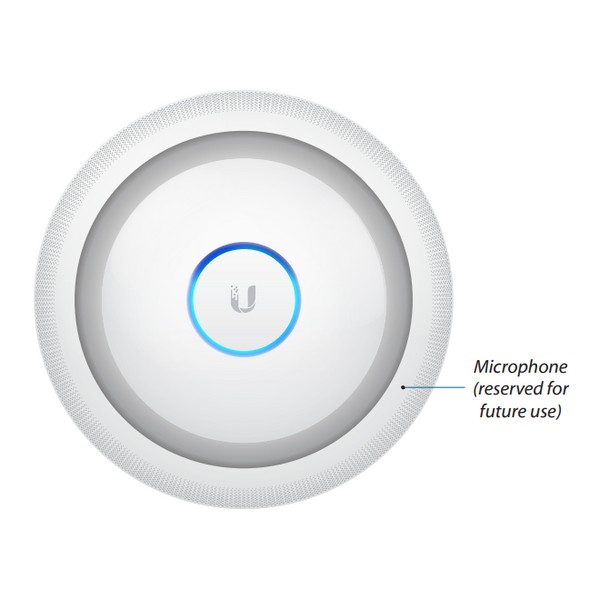

Microphone Acoustics:
Sensitivity:	-40 dB
Polar Pattern:	Omni
Frequency Response:	50 - 20000 Hz
