Ubiquiti » UniFi Network » US-24-250W
Ubiquiti US-24-250W, Unifi Switch, 24-port, 250W
[1529][US-24-250W]
Price: 370,21€
 Order or Qty  Price
 > 500€  5+   366,51€
 > 1000€  10+   362,81€
 > 2000€  20+   359,11€
 > 5000€  40+   355,40€
 > 10000€  100+   351,70€
Prices exclude VAT

Ubiquiti US-24-250W, Unifi Switch, 24-port, 250W

No Stock
Order Qty:
UPC:810354023149

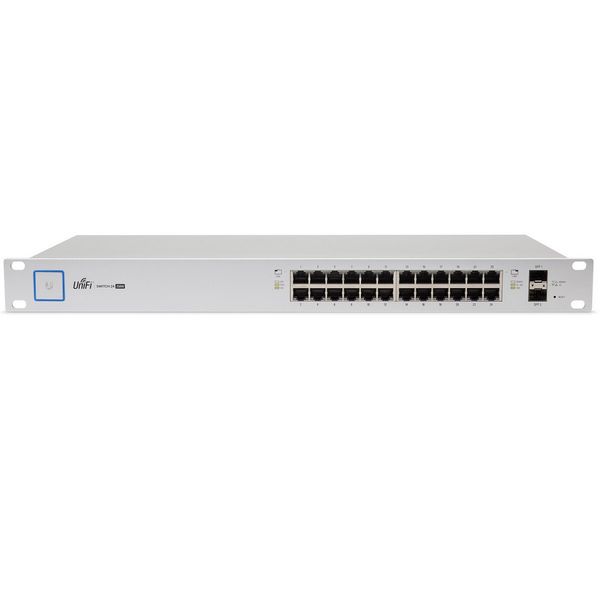

Unifi Switch US-24-250W

Τhe UniFi Switch delivers robust performance, PoE+ support, and intelligent switching for growing networks.

Also delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

Total non-blocking throughput: up to 26 Gbps .

Each switch port offers custom settings: port name, PoE, network/VLAN configuration, and operation mode (switching, mirroring, or aggregate).

Two SFP ports support uplinks of up to 1 Gbps.

Specifications:
Dimensions: 485 x 43.7 x 285.4 mm
Weight: 4.7 kg
Total Non-Blocking Throughput: 26Gbps
Switching Capacity: 52 Gbps
Forwarding Rate: 38.69 Mpps
Max. Power Consumption: 250W
Power Method: 100-240VAC/50-60Hz, Universal Input
Power Supply: AC/DC, Internal, 250W DC

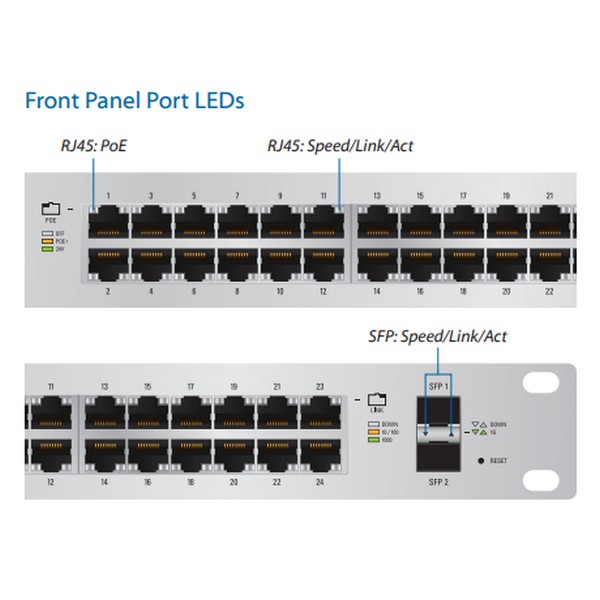

LEDs Per Port:
RJ45 Data Ports
SFP Data Ports

PoE, Speed/Link/Activity
Speed/Link/Activity
Networking Interfaces: 24x 10/100/1000Mbps RJ45 Ethernet Ports
2x 1Gbps SFP Ethernet Ports

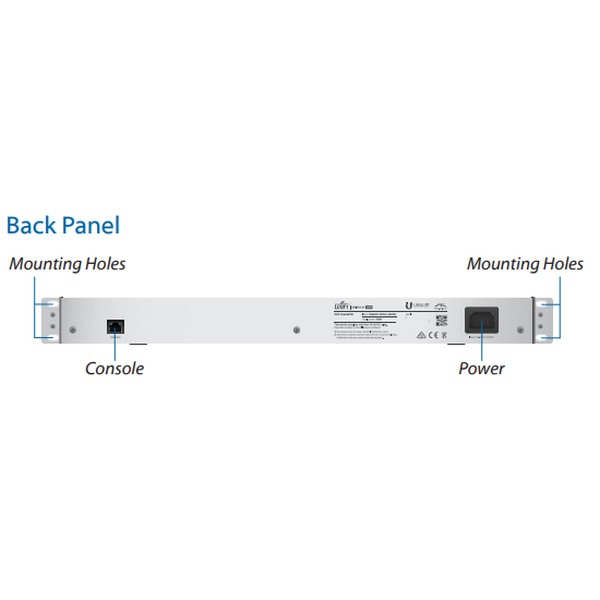

Management Interface: Ethernet In/Out of Band
Certifications: CE, FCC, IC
Rackmount: yes, 1U
ESD/EMP Protection: Air: ±24kV, Contact: ±24kV
Operating Temperature: -5°C to 40°C
Operating Humidity: 5 to 95% Noncondensing
Shock and Vibration: ETSI300-019-1.4 Standard
PoE Per Port:
PoE Interfaces: POE+ IEEE 802.3af/at (Pins 1,2+, 3, 6-)
24VDC Passive PoE (Pins 4,5+,7,8-)
Max. PoE+ Wattage per Port by PSE:   34.2W
Voltage Range 802.3at Mode: 50-57V
Max. Passive PoE Wattage per Port: 17W
24V Passive PoE Voltage Range: 20-27V


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
