Antenna 2.4GHz » EZ-RD24R05IRS
5dBi 2.4GHz Swivel OMNI Antenna - RP-SMA Plug Connector
[1950][EZ-RD24R05IRS]
Price: 2,10€
 Order or Qty  Price
 > 500€  5+   2,06€
 > 1000€  10+   2,02€
 > 2000€  20+   1,97€
 > 5000€  40+   1,93€
 > 10000€  100+   1,89€
Prices exclude VAT

5dBi 2.4GHz Swivel OMNI Antenna - RP-SMA Plug Connector

No Stock
Order Qty:
UPC:728615665000

EZ-OM24S05IRS

The new OMNI Directional Antenna is made of TPEE Material with steel base, provides broad coverage and 5 dBi gain, and is available with an integrated RP-SMA plug Connector.

The gain of this antenna is 5dBi and comes with 50° of Vertical BeamWidth.

The antenna features high gain in an aesthetic package. Because of their high gain the user can expect extra signal strength.

The antenna is targeted for MESH applications and  is manufactured to mount directly on the indoor or outdoor case of the electronics.

It is only 19cm in length and is available with RP-SMA Connector  (Female thread / Female center pin.)

Parameter Min Typ Max Units
Frequency Range 2400   2483 MHz
Gain   5.5   dBi
Ver Beamwidth   50°   Deg
Hor Beamwidth   360°   Deg
VSWR   1.5:1
Impedance   50   Ohm
Input power     10 Watt
Operating Temperature -10   +70 Deg C
Connector   RP-SMA
Weight   27   gr

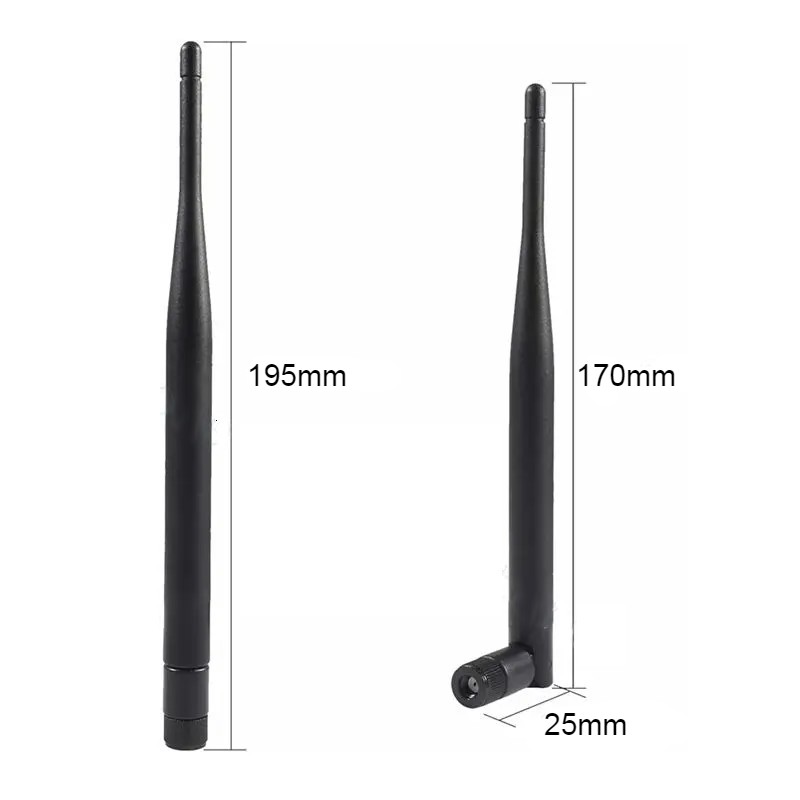

Dimensions   190 x 14D   mm

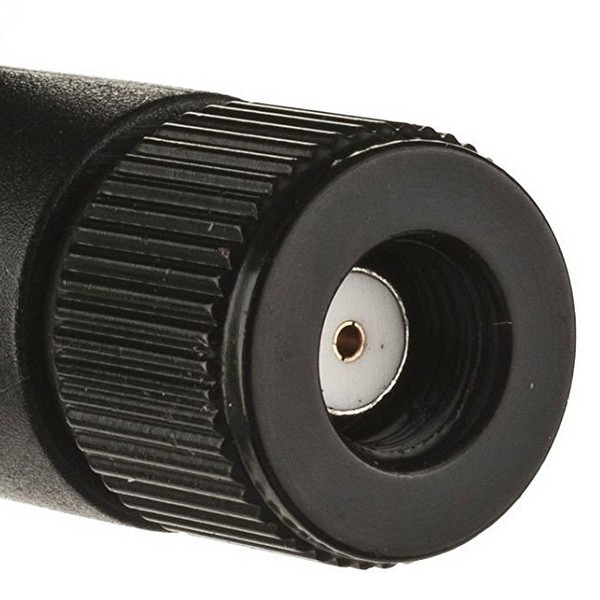

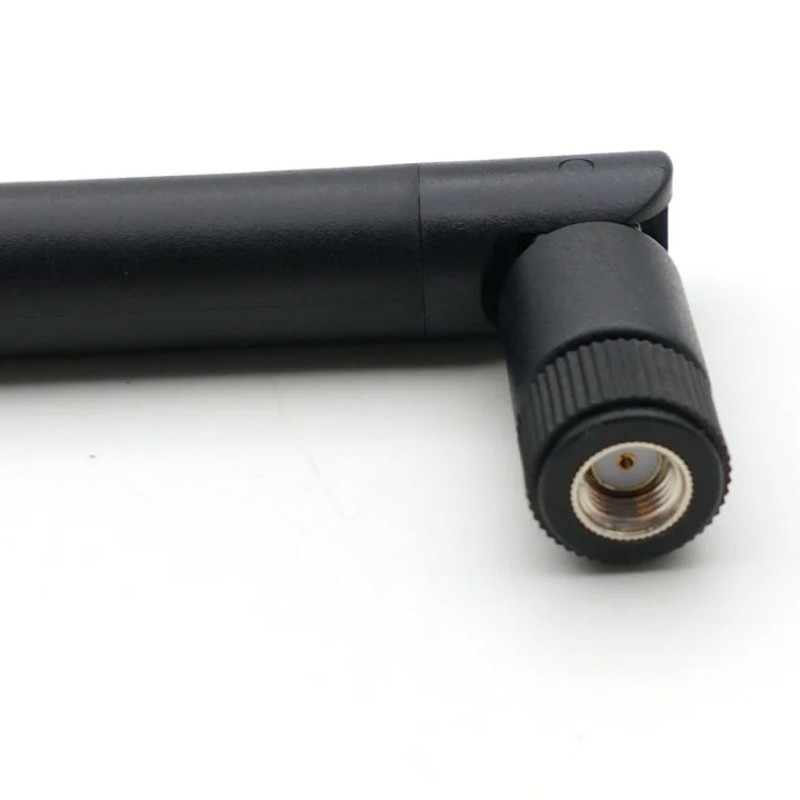

Connector
RP-SMA plug
Female thread
Female center pin


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
