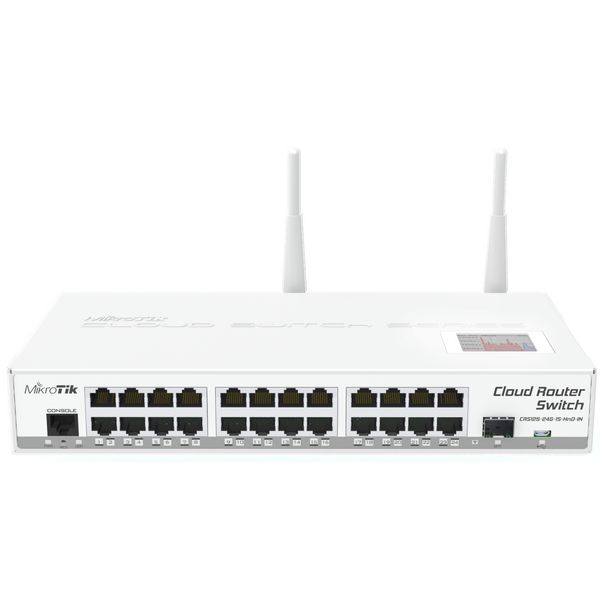

CRS125-24G-1S-2HnD-IN
Cloud Router Switch is our new Smart Switch series.
It combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS.
All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.
What’s more - this device has a built in 2.4GHz wireless access point, this means you can have an AP, a router with any number of ports, and a full wire speed smart switch.
All in one device - ideal for medium/small businesses and offices. It has 24 Gigabit ports, one SFP cage, a microUSB port and a built in Wireless AP.
|
Specifications: |
|
Product code: |
CRS125-24G-1S-2HnD-IN |
|
SFP DDMI: |
Yes |
|
CPU nominal frequency: |
600 MHz |
|
CPU core count: |
1 |
|
Architecture: |
MIPS-BE |
|
Size of RAM: |
128 MB |
|
10/100 Ethernet ports: |
0 |
|
10/100/1000 Ethernet ports: |
24 |
|
MiniPCI slots: |
0 |
|
MiniPCI-e slots: |
0 |
|
Number of USB ports: |
1 |
|
Power Jack: |
1 |
|
Wireless: |
802.11b/g/n |
|
Supported input voltage: |
8 V - 28 V |
|
PoE in: |
Yes |
|
PoE out: |
No |
|
Voltage Monitor: |
Yes |
|
PCB temperature monitor: |
Yes |
|
CPU temperature monitor: |
No |
|
Dimensions: |
285x145x45mm |
|
Operating System: |
RouterOS |
|
Operating temperature range: |
-35°C to +65°C |
|
License level: |
5 |
|
Antenna gain DBI: |
4 |
|
Current Monitor: |
No |
|
CPU: |
AR9344-DC3A-R |
|
Max Power consumption: |
19W |
|
SFP ports: |
1 |
|
SFP+ ports: |
0 |
|
USB slot type: |
microUSB type AB |
|
Number of chains: |
2 |
|
Serial port: |
RJ45 |
| Package Contents: |
|---|
| 1 x CRS125-24G-1S-2HnD-IN
|
| 1 x 24V 1.2A power adapter
|
| 1 x USB OTG cable |
|
