MikroTik RB921UAGS-5SHPacD-NM, NetMETAL 5
[2363][RB921UAGS-5SHPacD-NM]

The product is
no longer available

Prices exclude VAT

EAN:	4752224000910

NetMetal 5SHP

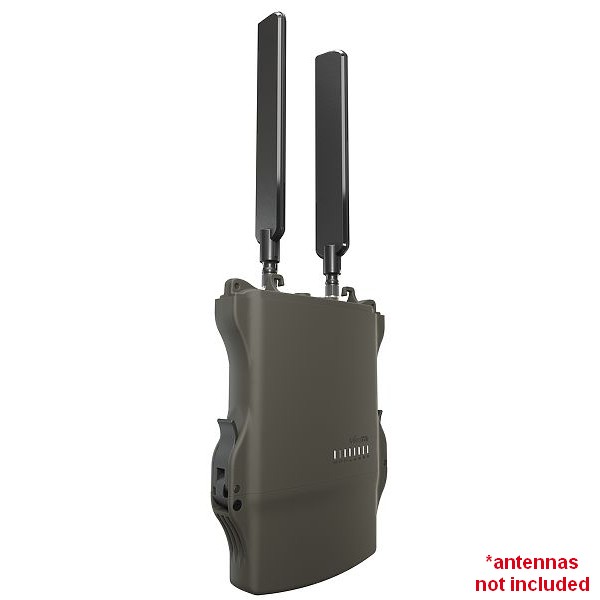

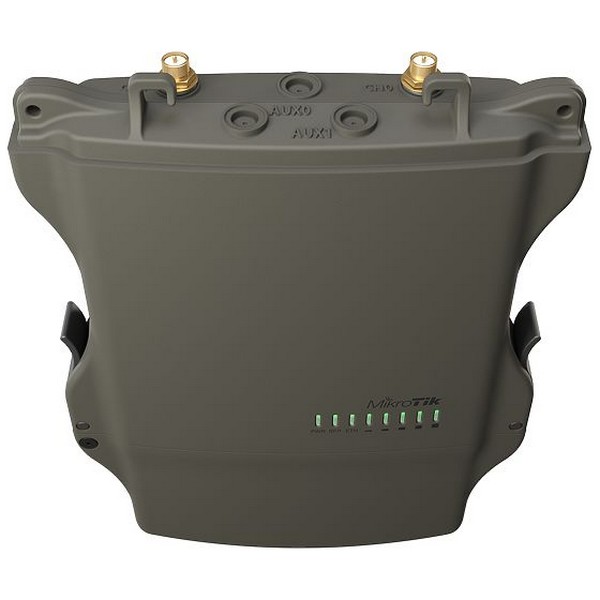

This NetMetal version is equipped with super high power 1.3W 2x2 dual chain 802.11a/n/ac wireless and two RP-SMA connectors for external antennas

The NetMetal is a 802.11ac wireless device in a waterproof metal enclosure. Its rugged design is made to withstand the toughest conditions, but at the same time is easy to use and can be opened and closed with one hand. The solid aluminum enclosure also works as a reliable heat-sink for it’s high output power radio.

The NetMETAL is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA connectors for external antennas and RouterOS L4 license. The enclosure is sealed to conform with the IP54 standard.

RB921UAGS-5SHPacT-NM supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Product Links:
Product Page	Brochure	Quick Guide	RouterOS

Specifications
PCB temperature monitor	Yes
Voltage Monitor	Yes
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1
Other
SFP DDMI	yes
SFP ports	1
Peripherals
10/100/1000 Ethernet ports	1
Fiber
Wireless 5 GHz Max data rate	867 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n/ac
Wireless 5 GHz chip model	QCA9882
Wireless 5 GHz generation	Wi-Fi 5
Ethernet
PoE in	Passive PoE
PoE in input Voltage	8-30 V
Number of DC inputs	1 (PoE-IN)
Max power consumption	17 W
Wireless
Product code	RB921UAGS-5SHPacD-NM
Architecture	MIPSBE
CPU	QCA9557
CPU core count	1
CPU nominal frequency	720 MHz
Dimensions	143x247x48mm (PCB)
License level	4
Operating System	RouterOS
Size of RAM	128 MB
Storage size	128 MB
Storage type	NAND
Tested ambient temperature	-40°C to 70°C
Powering

Package Contents:
1 x NetMetal 5SHP
1 x 24v 1.2A Power supply
1 x Gigabit PoE Injector
1 x Metal Ring
1 x DIN mount (K-27)
1 x K-25 screw kit
