MikroTik RBD23UGS-5HPacD2HnD-NM, NetMetal ac2
[2397][RBD23UGS-5HPacD2HnD-NM]
Price: 134,90€
 Order or Qty  Price
 > 500€  5+   133,55€
 > 1000€  10+   132,20€
 > 2000€  20+   130,85€
 > 5000€  40+   129,50€
 > 10000€  100+   128,16€
Prices exclude VAT

MikroTik RBD23UGS-5HPacD2HnD-NM, NetMetal ac2

Ships in:
5-7 working days
Order Qty:
EAN:4752224005212

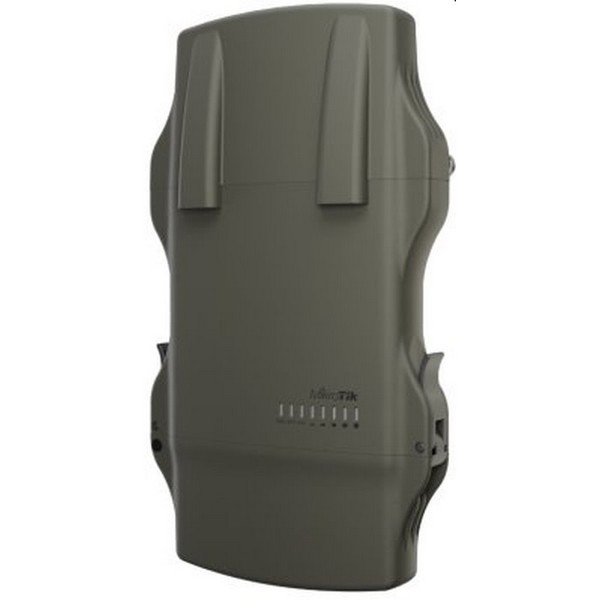

NetMetal ac² - Our toughest long-range AP, now with dual-band support

More power and advanced features, with the same design philosophy as its predecessors – the new NetMetal ac² AP is sturdy, reliable, easy to use and extremely capable.

This is the best way to add IPsec hardware acceleration to your backhaul link! We have added an out-of-the-box 2.4/5 GHz dual-concurrent (2.4GHz and 5GHz can be used at the same time) band support – no need for additional tinkering!NetMetal ac² can handle massive loads, as it features an improved 4-core CPU and 256 MB RAM.

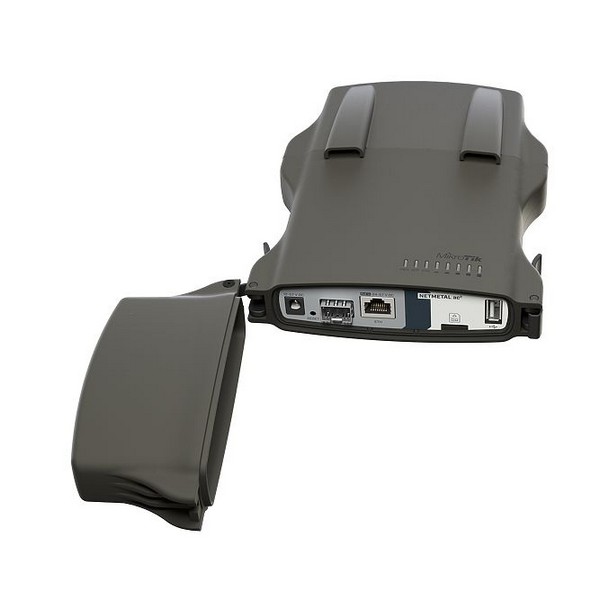

There is a miniPCIe slot for an LTE or other wireless modules and an SFP port for fiber. The NetMetal ac² can be a very adaptable addition for all kinds of setups.

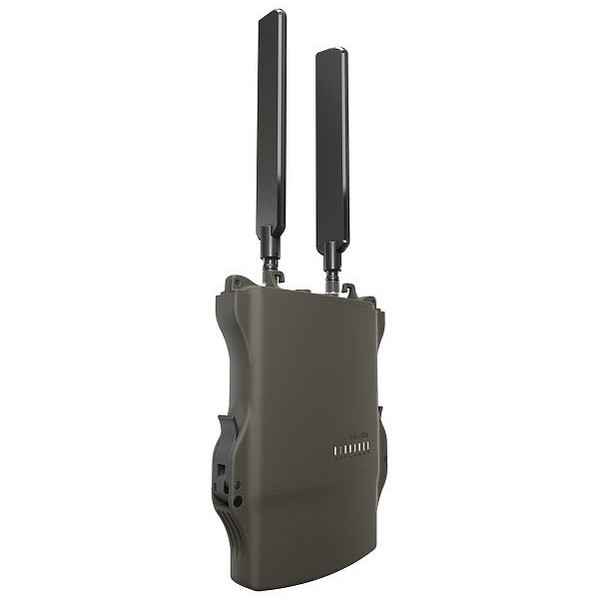

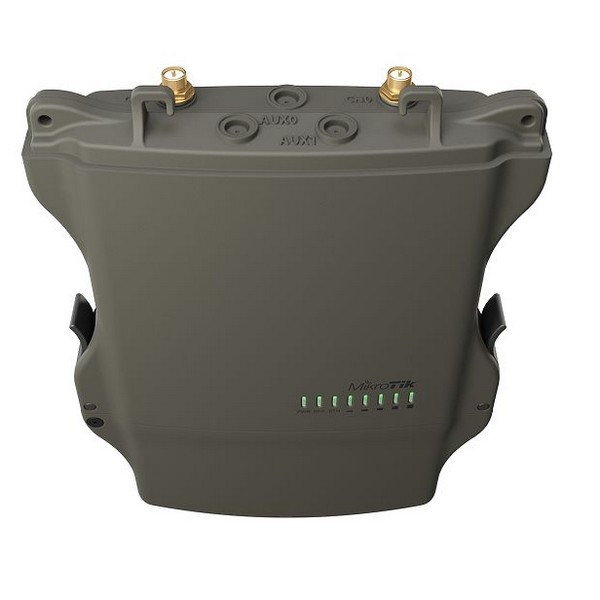

Two RP-SMA connectors allow adding an antenna of your choice. If necessary, you can adapt the NetMetal ac² for lower range use with such antennas as our HGO-antenna-OUT screw-on omni antenna unit (not included; available for ordering seperately)

The enclosure has an IP rating of IP54 with protection against splashing from any angle, but it can still be pened and closed with one hand. Very handy in rough environments!

Specifications
Product code RBD23UGS-5HPacD2HnD-NM
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
CPU nominal frequency 716 MHz
Dimensions 143 x 247 x 48 mm
License level 4
Operating System RouterOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 70°C
Powering
PoE in 802.3af/at
PoE in input Voltage 24-57 V
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 12-57 V
Max power consumption 28 W
Max power consumption without attachments 12 W
Wireless
AC speed AC1200
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Wireless 2.4 GHz chip model IPQ-4019
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Wireless 5 GHz chip model IPQ-4019
Wireless 5 GHz generation Wi-Fi 5
Ethernet
10/100/1000 Ethernet ports 1
Fiber
SFP ports 1
Peripherals
Number of SIM slots 1 Modem (Micro SIM)
MiniPCI-e slots 1
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Other
PCB temperature monitor Yes
Voltage Monitor Yes
Certification & Approvals
Certification CE/RED, FCC, IC, EAC, ROHS

Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
