Aerial.net :: MikroTik mANT30, 5GHz 30dBi antenna, standard type mount

MikroTik » Antennas » MTAD-5G-30D3

MikroTik mANT30, 5GHz 30dBi antenna, standard type mount
[1717][MTAD-5G-30D3]

Price: 147,29€

Order or Qty		Price
> 500€	5+	145,82€
> 1000€	10+	144,34€
> 2000€	20+	142,87€
> 5000€	40+	141,40€
> 10000€	100+	139,93€

Prices exclude VAT

Ships in:
3-5 working days

Order Qty:

EAN:	4752224000224

mANT30

mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards.

Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable.

The antenna come packaged with all necessary accessories and cables.

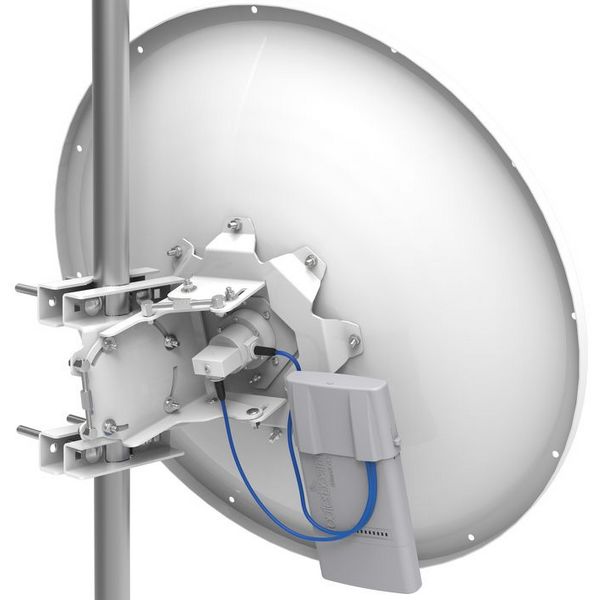

Note: Basebox wireless device pictured for illustrative purposes. It is not included

Product Links:
Product Page	Brochure	Assembly Instructions

Details:
Product code	MTAD-5G-30D3
Antenna gain DBI	30dbi
Frequency Range	4.7-5.875 GHz
Polarization	Vertical and Horizontal
Beamwidth	3 deg
VSWR	≤ 1.4 typ, ≤ 1.8 max
Port to Port Isolation	>40dB min
Front-to-Back Ratio	>30 dB
Cross Polarization	>40 dB
Power Rating	100W
Impedance	50 ohms
Elevation adjustment range	+/- 20 deg
Diameter x Depth	70 x 45cm (27.5 x 17.8in)
Weight	4.8kg (10.7 lbs)
Reflector	Aluminum
Outdoor Rating	ETSI EN 300 019-2-4
Standards	EN 302 326 DN1, DN2, DN3, DN5
Wind Survivability	201kph (125mph)
Wind Load (125 mph)	181.4kg (400 lbs)
Operating Temperature	-50°C to 80°C(-49°F to 158°F)
Pole Mount Diameter Range	3 to 7cm (1.2 to 2.75in)
Connector	2x RP-SMA Female (outside thread)
Packaged size	73x73x20cm (29x29x8in)
Packaged weight	7.5 kg (16.5 lbs)

Package Contents:
1 x MTAD-5G-30D3
