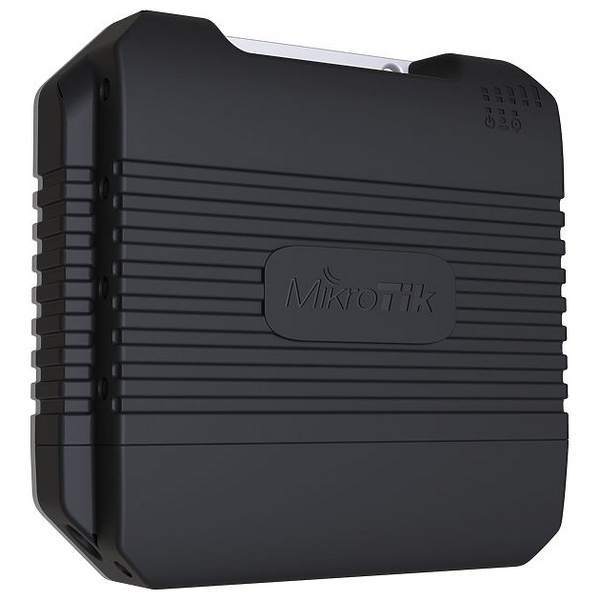

LtAP LR8 LTE - a compact all-in-one solution with LTE, GPS and wireless support for LoRa® in a rugged heavy-duty case
Inside the heavy-duty case, there is a powerful 2.4 GHz wireless access point with a Gigabit Ethernet port, built-in GPS and two internal LTE antennas.
There are two miniPCIe slots – one is used for the LTE modem, the other one is populated with the concentrator gateway card for LoRa® technology.

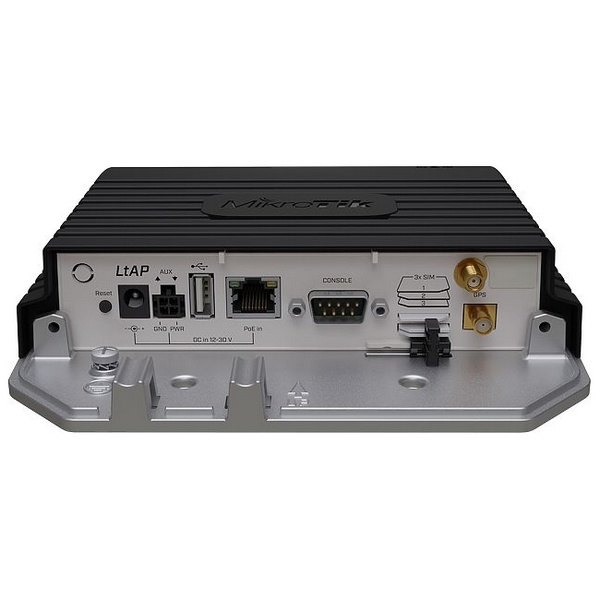

There are three powering options: DC jack, PoE-in and automotive. We have even seen users powering the LtAP with a 20 000 mAh power bank throughout the day
|
Specifications: |
|
Product code |
RBLtAP-2HnD&R11e-LTE&LR8 |
|
Architecture |
MMIPS |
|
CPU |
MT7621A |
|
CPU core count |
2 |
|
CPU Threads count |
4 |
|
Dimensions |
170 x 162 x 40 mm |
|
RouterOS license |
4 |
|
Operating System |
RouterOS |
|
Size of RAM |
128 MB |
|
Storage size |
16 MB |
|
Storage type |
FLASH |
|
MTBF |
Approximately 200'000 hours at 25C |
|
Tested ambient temperature |
-40°C to 70°C |
|
Powering |
|
PoE in |
Passive PoE |
|
PoE in input Voltage |
12-30 V |
|
Number of DC inputs |
3 (Automotive, PoE-IN, DC jack) |
|
DC jack input Voltage |
12-30 V |
|
Automotive input Voltage |
12-27 V |
|
Max power consumption |
24 W |
|
Max power consumption without attachments |
9 W |
|
FAN count |
Passive |
|
Mobile
|
|
2G Category |
Class12 |
|
2G bands |
2 (1900MHz) / 3 (1800MHz)
5 (850MHz) / 8 (900MHz) |
|
3G Category |
R7 (21Mbps Downlinks, 5.76Mbps Uplink) |
|
3G bands |
1 (2100MHz) / 2 (1900MHz)
5 (850MHz) / 8 (900MHz) |
|
LTE Category |
4 (150Mbps Downlink, 50Mbps Uplink) |
|
LTE FDD bands |
1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz)
7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) |
|
LTE TDD bands |
38 (2600MHz) / 40 (2300MHz) |
|
Wireless specifications
|
|
Wireless 2.4 GHz Max data rate |
300 Mbit/s |
|
Wireless 2.4 GHz number of chains |
2 |
|
Wireless 2.4 GHz standards |
802.11b/g/n |
|
Antenna gain dBi for 2.4 GHz |
2.5 |
|
Wireless 2.4 GHz chip model |
AR9382 |
|
Wireless 2.4 GHz generation |
Wi-Fi 4 |
|
Ethernet |
|
10/100/1000 Ethernet ports |
1 |
|
Peripherals |
|
Serial port |
RS232 |
|
Number of USB ports |
1 |
|
USB Power Reset |
Yes |
|
USB slot type |
USB type A |
|
Max USB current (A) |
1 |

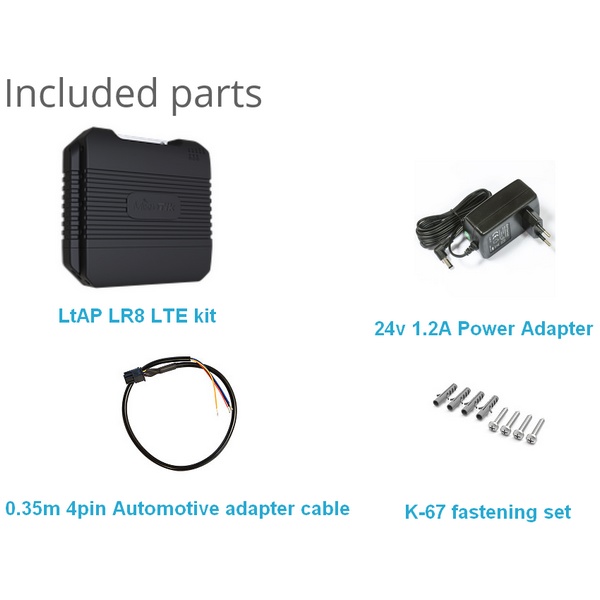

| Package Contents: |
|---|
| 1 x LtAP LR8 LTE
|
| 1 x 24V 1.2A power adapter
|
| 1 x 0.35m 4pin Automotive adapter cable
|

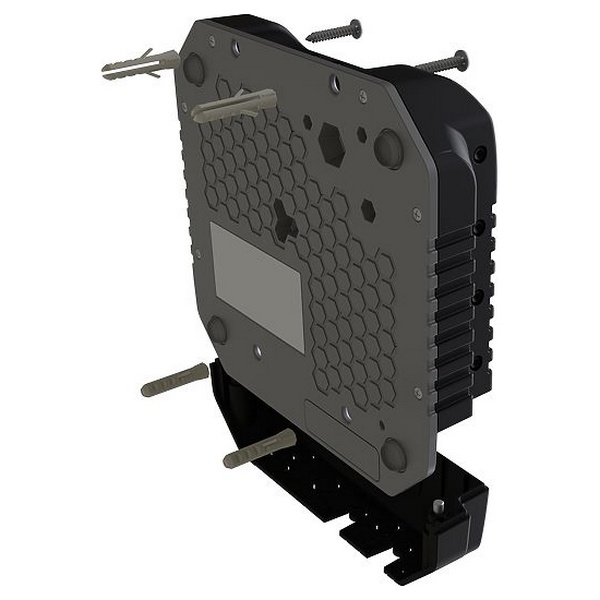

| 1 x K-67 screw kit |
|
