MikroTik ATLGM&EG18-EA, ATL LTE18 kit
[2923][ATLGM&EG18-EA]
Price: 232,06€
 Order or Qty  Price
 > 500€  5+   229,74€
 > 1000€  10+   227,42€
 > 2000€  20+   225,10€
 > 5000€  40+   222,78€
 > 10000€  100+   220,45€
Prices exclude VAT

MikroTik ATLGM&EG18-EA, ATL LTE18 kit

In Stock: 2
Order Qty:
EAN:4752224008312

ATL LTE18 kit - Fast CAT 18 LTE Modem, Gigabit Ethernet with PoE-In, 64-Bit Dual-Core ARM CPU, High-Gain Antenna, Snow-Resistant, 4X4 MIMO Support, LTE Band 28, 700 MHz - 1 GHz Support

The ATL LTE18 kit is a device used to connect to a mobile 3G/LTE network. Put it outside on a pole or just in a high enough place and it's there where cell phones don't have a signal.

Thanks to a large radome antenna with high gain, the device can connect to transmitters even in extreme rural locations, enabling Internet access even in places where nothing else is available.

The unit is equipped with one Gigabit Ethernet port, it has a built-in high quality Category 18 LTE modem for speeds up to 1200 Mbps/150 Mbps (download/upload), very powerful 64-bit 2-core ARM 1200MHz CPU, 16MB storage and 256MB RAM.

Specifications
Product code ATLGM&EG18-EA
Architecture ARM 64bit
CPU 88F3720
CPU core count 2
CPU nominal frequency 800 MHz
RouterOS license 3
Operating System RouterOS v7
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF (Approximately) 200.000 hours at 25°C
Tested ambient temperature -40°C to 70°C
Dimensions

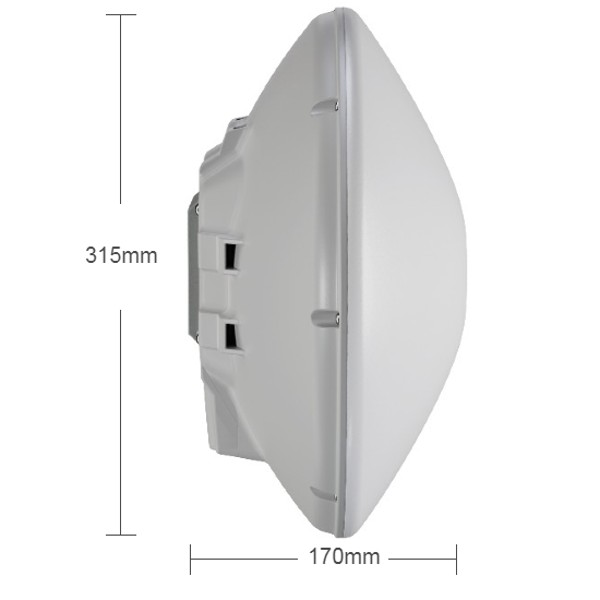

Ø315mm x 170mm
Powering
Number of DC inputs 1 (PoE-IN)
Max power consumption 8 W
Max power consumption without attachments 8 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 12-57 V
Mobile
3G Category R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
3G bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 18 (1.2Gbps Downlink, 150Mbps Uplink)
LTE FDD bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900 MHz)
20 (800MHz) / 28 (700MHz) / 7 (2600MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
Ethernet
10/100/1000 Ethernet ports 1
Peripherals
Number of SIM slots 1 Modem (Micro SIM)
Number of M.2 slots 1
Other
Mode button Yes
Certification & Approvals
Certification CE, EAC, ROHS
IP IP54
