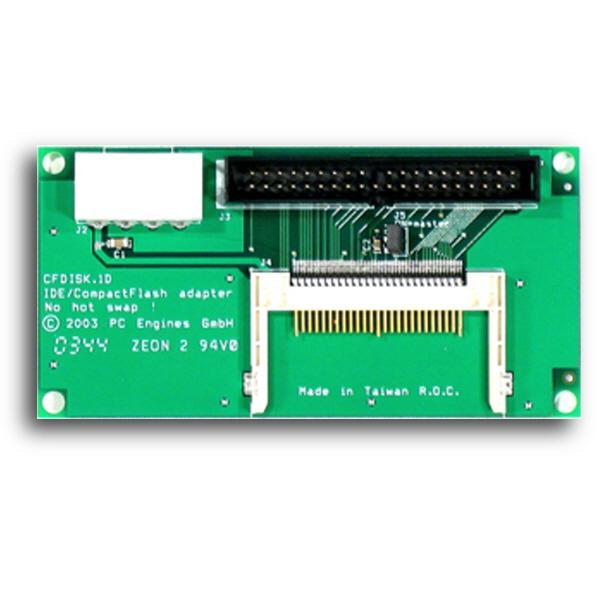

The CFDISK.1E (IDE) allows CompactFlash modules to be used in any system that includes a standard IDE 40 pin connector.
Once the platform starts with the adapter and the CF card plugged in, the compactflash module appears to the system to be a standard disk drive.
Unlike other flash storage systems such DiskOn-Chip modules this solution does not require drivers or additional software to run the unit.
The CF card can be the primary boot device containing the OS and application.
Features:
-
Support CompactFlashTM cards (Type I & II) or a IBM MicrodriveTM
-
Due to limitations in the CompactFlash specification, this adapter does not support hot insertion of cards.
-
IDE power connector.
-
Board is fully assembled (not a kit).
-
Transparent to the operating system and does not require any drivers
Specifications:
-
Jumper configuration for master (jumper on) or slave (jumper off). Supports IDE DMA.
-
Solid state replacement for 3.5" hard disk drives, 40 pin IDE connector.
-
Mounting hole locations same as the bottom holes of a hard disk drive.
-
Comes with an IDE power connector onboard.
-
Board size is 2" x 4".
