The product is
no longer available |
| Prices exclude VAT |
|
|

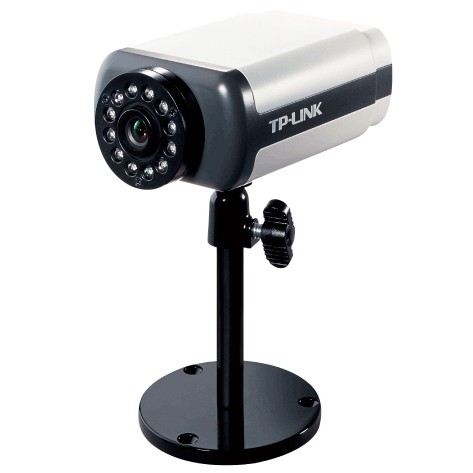

TL-SC3171 IP surveillance camera is a versatile solution for your home & office monitoring. It watches your home, your kids, your workplace, whatever you care for most. After connecting directly to a local network using wired Ethernet connection, it can send live video to your home PC or through the internet to a Web browser or 3G mobile phone, anywhere in the world! Even more exciting is that the TL-SC3171 features 12 IR (Infrared) LEDs and an industrial mechanical ICR (IR Cut-filter Removable), providing you true day / night surveillance experience. Ultimately, the TL-SC3171 is perfect to keep an eye on your family, property, or anything important to you, bringing you peace of mind.
True Day / Night Surveillance
Did you know that more than 80% of burglary cases happen in the dead of night? With this in mind, the only viable solution to truly ensure the safety of your home or business is to have around the clock surveillance. This camera was developed in order to correct traditional inadequacies of network connected day/night cameras.
This day/night camera uses all available Infrared light as a means to produce clear images in the dark and completely filters that light during the day ensuring vivid video as clear as you would see with the naked eye, both functions unavailable on traditional day/night cameras that resulted in poor image quality during both the day and the night.
The TL-SC3171 provides you with the best in day / night surveillance.
|
Software Specifications |
|
Standards and Protocols
|
Bonjour, TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP,
DNS, NTP, UPnP, RTSP, RTP, HTTP, TCP,UDP,
3GPP/ISMARTSP
|
|
Video compression
|
Motion JPEG; MPEG- 4
|
|
Frame rate & Resolutions
|
Up to 30(NTSC) / 25(PAL) fps at 640x480, 320x240, 160x120
|
|
Video streaming
|
Simultaneous Motion JPEG and MPEG-4 (Dual streaming)
|
|
Security
|
Multiple user access levels with password protection, HTTPS encryption |
|
Alarm and Event Management |
vents triggered by motion detection and Schedule; Notification over TCP, email, HTTP
|
|
Bundled Management Software
|
Viewing and recording up to 16 cameras
|
|
|
Rotation:Mirror, Flip, Mirror Flip, brightness, contrast, saturation, hue
Overlay capabilities: time, date, text and privacy image
|
|
Audio
|
Two-way (full duplex)
External microphone input
|
|
Users
|
5 simultaneous users
Unlimited number of users usingmulticast
|
Minimum web browsing requirements
|
Pentium4 1.8GHz (or equivalent AMD), 64MB RAMgraphic cards
(or equivalent on-board graphic cards) 512MB RAM
Windows 98,ME, 2000, 2003, XP, Vista, Mac OS Leapord 10.5
|
|
Hardware Specifications |
|

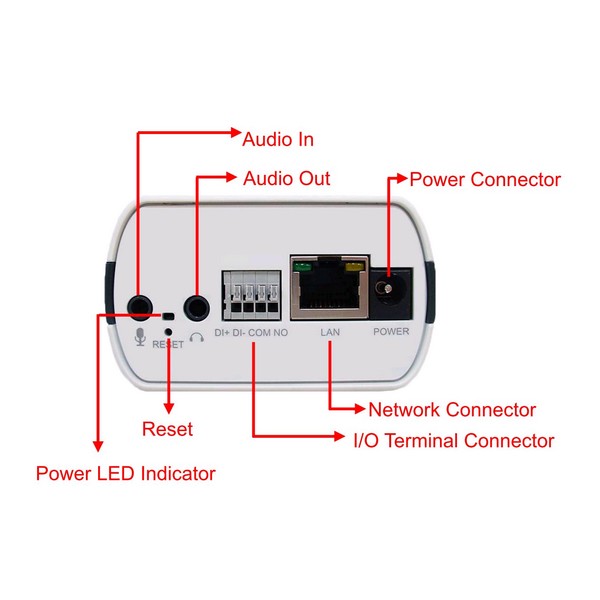

Interfaces |
1x RJ- 45 for Ethernet 10/100 Base-T, DC power jack; Reset push switch,
Terminal blocks for 1 alarm input, 1 output
3.5 mm jack for Mic in
3.5 mm jack for Speaker o
|
|
Image sensor
|
1/4” Progressive scan CMOS sensor
|
|

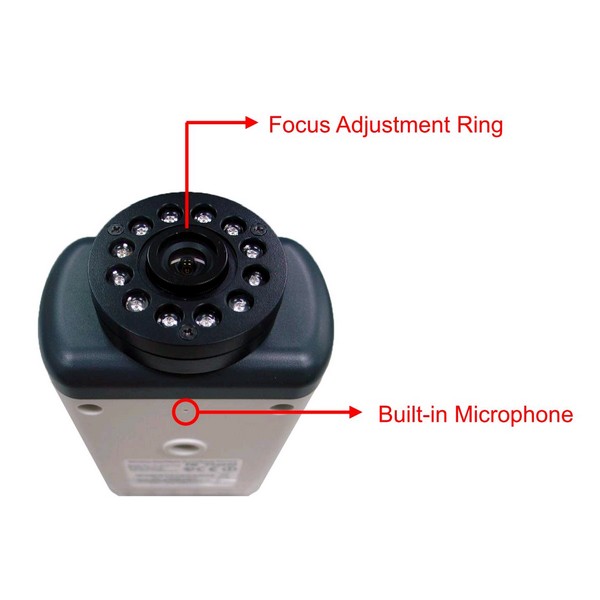

Lens |
F2.0, 4.0mm
|
|
Digital zoom
|
10x Digital
|
|
Min Illumination |
0.5 Lux |
|
IR working distance |
10 meters (33 feet) |
|
Day/Night Mechanism |
Mechanical IR cut filter removable; 12 IR (Infrared) LEDs |
|
Safety & Emission |
FCC, CE |
|
Dimensions (HxWxD) |
5.4 x 3.0 x 1.9 in. (136 x 75 x 47 mm) |
|
Weight |
0.75 Kg |
|
Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
|
Power |
12V DC, 2A |

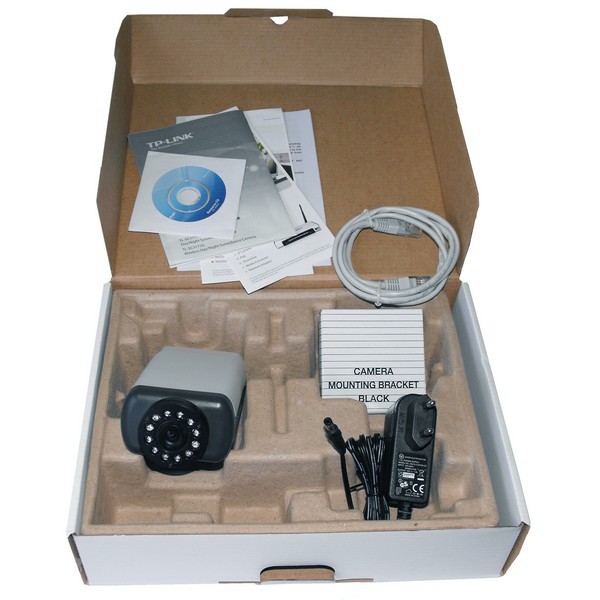

| Package Contents: |
|---|
| 1 x
|
| 1 x Power Adapter
|
| 1 x Mounting Bracket with three screws, a Lock Ring, a Brace and a Base Plate
|
| 1 x RJ45 Cable
|
| 1 x Quick Installation Guide
|
| 1 x Resource CD, including, Software, User Guide and other helpful information |
|
