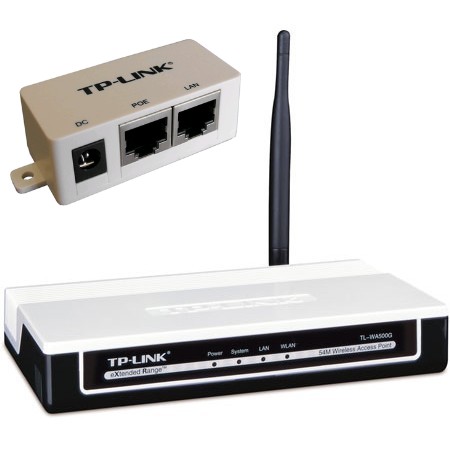

The TL-WA500G 54Mbps Wireless Access Point is designed to establish a scalable wireless G network or to connect Ethernet enabled devices to an existing wireless network.
Supporting up to six operating modes, the TL-WA500G is the most versatile multimode access point. AP Mode: the most basic mode, enables you to build a wireless network;
Client Mode: connects an AP TL-WA500G to your game consoles, setop box or other multimedia devices that with Ethernet port, and join them into your current wireless network, easily making them WiFi enabled while eliminating the need of running unsightly cables and installing drivers;
Repeater: Boosts your wireless signal to the areas which previously hard to reach, greatly enlarging your wireless network coverage;
Bridge: Two or more TL-WA500G can make wireless bridges when you are joining some distant hard-to-wire places, providing a convenient and cost effective way for your network deployment.
eXtended RangeTM
The TL-WA500G 54Mbps Wireless Access Point complies with the IEEE 802.11g/b standards and adopts eXtended Range™ technology so that transmission range is 4 times that of traditional 11g/b solutions.
Security
With the most attentive wireless security, the TL-WA500G 54Mbps Wireless Access Point provides multiple protection measures. It can be set to turn off wireless network name (SSID) broadcast so that only stations that have the SSID can be connected. The AP provides wireless LAN 64/128/152-bit WEP encryption security, and WPA/WPA2 and WPA-PSK/WPA2-PSK authentication and TKIP/AES encryption security.
In a word, the TL-WA500G is the all-in-one choice for your wireless networking!
|
Software Specification
|
|
Standards
|
IEEE 802.11g, IEEE 802.11b
|
|
Wireless Signal Rates
|
Up to 54Mbps
|
|
Frequency Range
|
2.4-2.4835GHz
|
|
Wireless Transmit Power
|
20dBm(MAX. EIRP )
|
|
Modulation Technology
|
IEEE 802.11b: DQPSK, DBPSK, DSSS, and CCK
IEEE 802.11g: BPSK, QPSK, 16QAM, 64QAM, OFDM
|
|
Receiver Sensitivity
|
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
|
|
Wireless Mode
|
AP Mode
AP Client Mode
Repeater Mode (WDS / Universal )
Bridge mode (point-to-point / point to Multi-point)
AP+ Bridge Mode
|
|
Wireless Security
|
SSID Enable/Disable
MAC Address Filter
64/128-bit WEP Encryption
WPA/WPA2/WPA-PSK/WPA2-PSK (AES/TKIP) Encryption
|
|
Hardware Specification
|
|
Interface
|
1 10/100M Auto-Sensing RJ45 Port(Auto MDI/MDIX)
|
|
Antenna
|
4dBi Detachable Omni Directional Antenna
|
|
Power Supply Unit
|
Input: Localized to Country of Sale
|
|
Operating temperature
|
0oC~40oC (32oF~104oF)
|
|
Storage temperature
|
-40oC~70oC (-40oF~158oF)
|
|
Relative humidity
|
10% ~ 90%, Non Condensation
|
|
Storage Humidity
|
5%~95% Non-Condensing
|
|
Dimensions
|
5.9 x 3.9 x 1.1 in. (150*100*28 mm)
|
