SBC » LSX
LiteStation X, LSX, 1 x mPCI slot
[0468][LSX]
The product is
no longer available
Prices exclude VAT

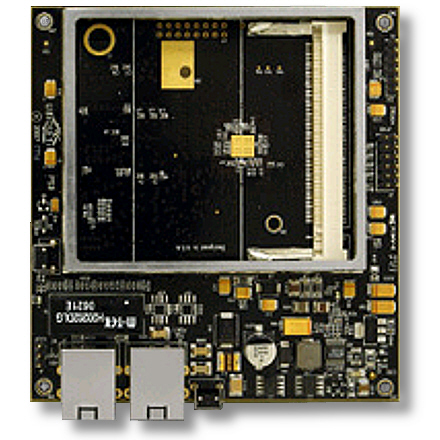

LiteStation X, LSX,  1 x mPCI slot

Description :

Ubiquiti's LiteStationX provides a powerful and robust platform to utilize any of Ubiquiti's Frequency Freedom radio modules. Featuring a powerful 300MHz processor, isolated radio shielding, extended operating temperature and custom firmware capable of auto-detecting special frequency Ubiquiti cards. LiteStationX can be used to instantly create a powerful radio router with virtually any frequency operation from DC to 6GHz.

Datasheet

Manual

Dimensions

Support Page

System Information :
Processor Specs
Atheros AR7131 SOC, MIPS, 300MHz
Memory Information
32MB SDRAM, 8MB Flash
Networking Interface
1 x 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
PCI Support 32-bit mini-PCI Type IIIA

Physical - Electrical - Environmental :

Aproovals FCC, CE
RoHS Compliance
Yes
Dimensions 4.2" x 3.5" x 0.6"
Weight
0.2lbs
Max Power Consumption
4W
Power Method
Passive PoE (paies 4,5+ 6,7-)
DC Voltage rating
5-24V (18V max recommended)
ESD/EMP Protection
Transient voltage supression at PoE port
Operating Temperature
-40C to +85C (optimized for for hi temp)
System LEDs
Power, LAN, WAN



Note:

Outdoor enclosure sold separately here
