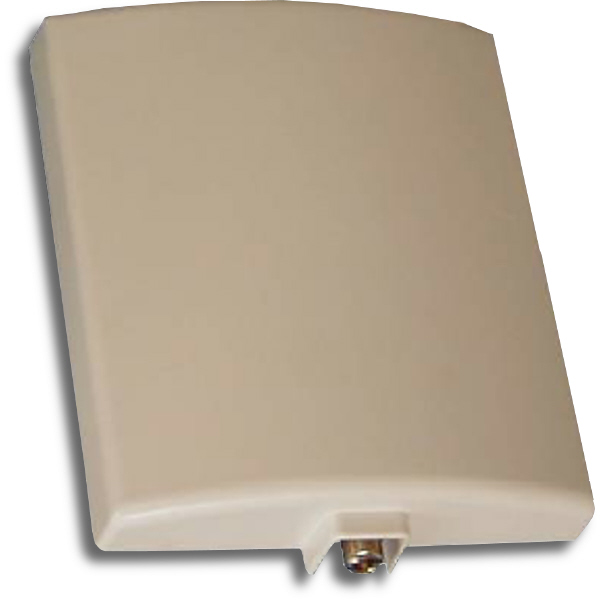

2.4GHz 10dBi Flat Panel
[0301][IN24-10]

The product is
no longer available

Prices exclude VAT

WHILE SUPPLIES LAST

Description:

The InWave Series® of indoor antenna systems offered by Pacific Wireless are constructed of UL94-V0 white ABS plastic. The low profile attractive styling blends well in almost any office or home environment. Wall mounting is simple with 4 supplied screws and drywall anchors. The antenna comes with an N Female connector standard.

Features :

• Directional Indoor antenna
• 10 dBi Antenna Gain
• Attractive housing
• UL Listed materials
• Surface mount on wall
• Vertical Polarization
• Type N Female Connector

Datasheet

Installation Instructions

Specifications :

Parameter	Min	Typ	Max	Units
Frequency Range	2400		2483	MHz
Gain		10		dBi
Hor Beamwidth		110		Deg
Ver Beamwidth		30		Deg
Input Return Loss		-14		dB
VSWR		1.5:1
Impedance		50		OHM
Input Power			100	W
Operating Temp	-40		+70	Deg C
Weight		0.8		Kg
Dimensions	216 x 190 x 45			mm

Connector
N-Type

Male thread Female center pin

Return for:
Refund:	Store Credit:	Repair:
20 day(s)	40 day(s)	12 month(s)
