Outdoor 2.4GHz » 2.4GHz » NSL2(EU)
NS2L NanoStation Loco2, 802.11b/g AP-CPE
[0522][NSL2(EU)]
The product is
no longer available
Prices exclude VAT

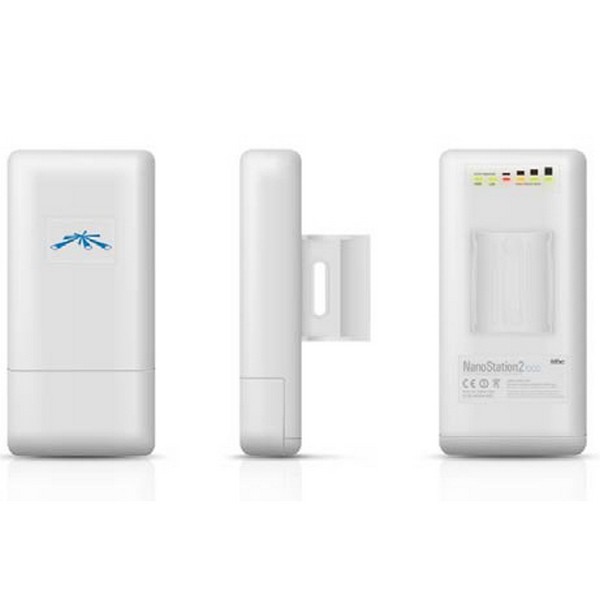

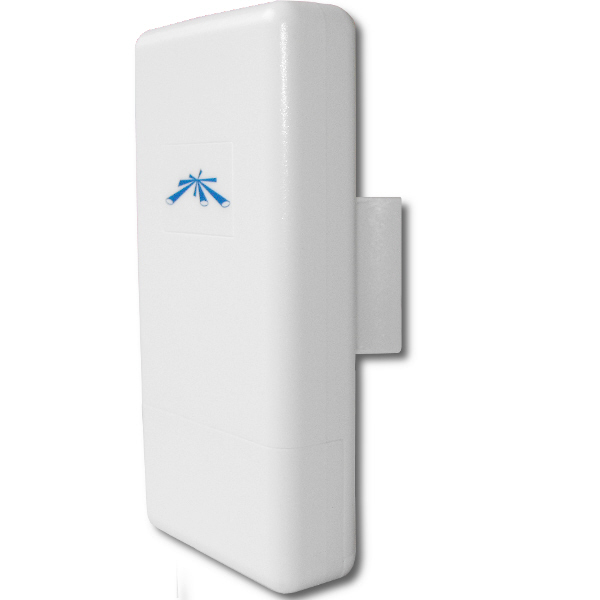

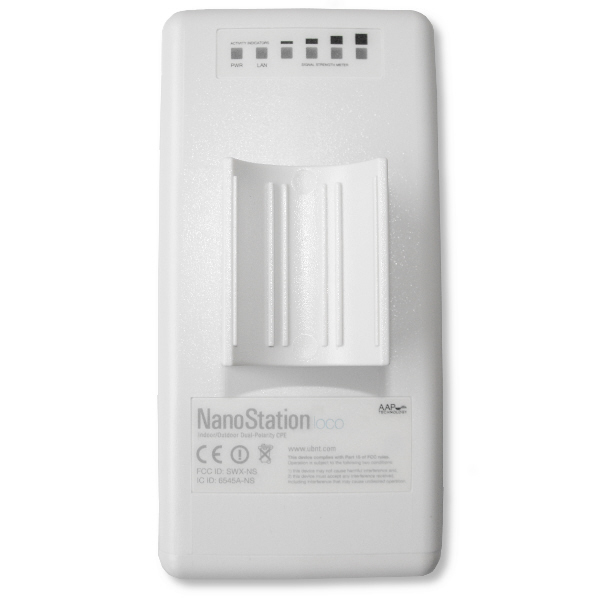

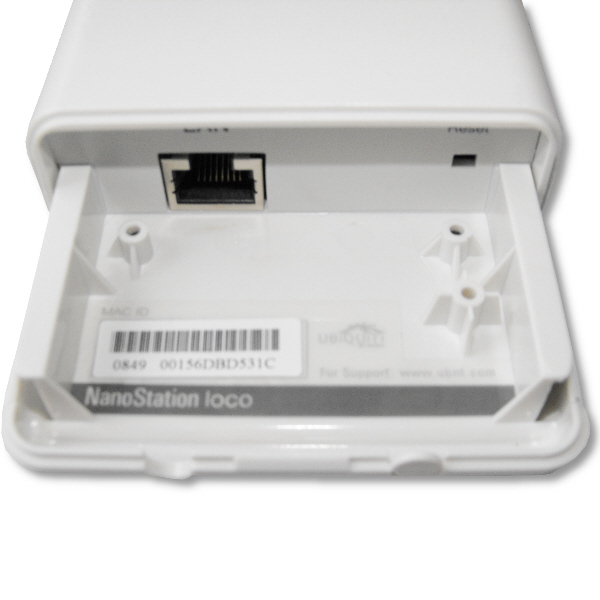

NS2L NanoStation Loco2, 802.11b/g AP-CPE

The device designed to advance the Global Wireless ISP industry to the next level. Featuring a compact indoor/outdoor design and an interface so intuitive even the most technically challenged can instantly become experts.

But, don't be fooled; it is as powerful as it is simple. Nanostation packs some phenomenal performance with a revolutionary design combining a hi-gain antenna system, advanced radio architecture, and highly researched and developed firmware technology allowing throughput, stability, and capacity performance rivaling even the highest-end WiMax networks.

System Information :
Processor Specs Atheros AR2316 SOC, MIPS 4KC, 180MHz
Memory Information 16MB SDRAM, 4MB Flash
Networking Interface 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
Physical - Electrical - Environmental :
Operating Frequency 2412-2462MHz
Antenna Integrated 8dBi Dual Pol
TX Power 20dBm, +/-1dB
RX Sensitivity -95dBm +/-1dB
Outdoor Range Over 5Km
TCP/IP Throughput 25Mbps+
Enclosure Size 16.3 x 8 x 3.1cm
Weight 0.18Kgr
Enclosure Characteristics Outdoor UV Stabalized Plastic
Mounting Kit Pole Mounting Kit included
Max Power Consumption 4 Watts
Power Supply 15V, 0.8A (12 Watts). Supply with POE injector included
Power Method Passive Power over Ethernet (pairs 4,5+; 7,8 return)
Operating Temperature -20C to 70C
Operating Humidity 5 to 95% Condensing
Shock and Vibration ETSI300-019-1.4


Additional Images:
