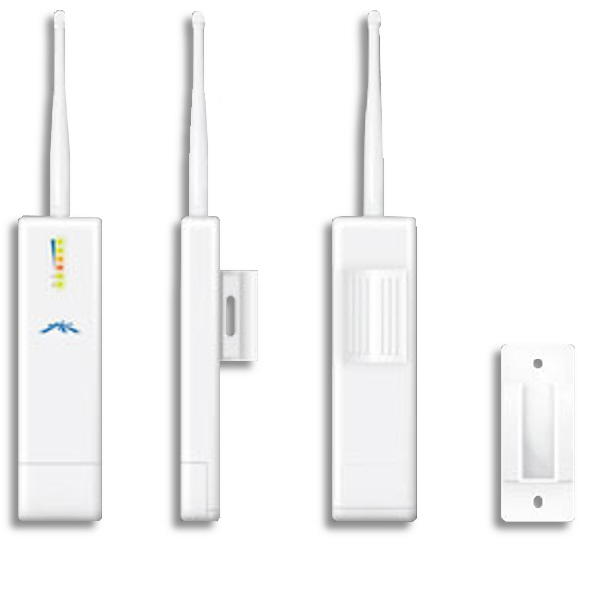

The smallest outdoor AP in the world is also the most powerful.
Unlimited Applications
In addition to the LSDK support, PicoStation ships with 32MB RAM and 8MB Flash to encourage developers to customize Pico Firmware to create their own applications such as Hot-Zone deployments, mesh networking, and metering applications.
Featuring Powerful AirOS Software and Linux SDK
PicoStation ships standard with the powerful and intuitive AirOS by Ubiquiti Networks.
It also is supported by a Linux SDK to encourage open source development.
| System Information : |
| Processor Specs |
Atheros AR2316 SOC, MIPS 4KC, 180MHz |
| Memory Information |
32MB SDRAM, 8MB Flash |
| Networking Interface |
10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface |
| Physical - Electrical - Environmental : |
| Antenna |
RP-SMA OMNI Included (6dBi US, 0dBi EU) |
| TX Power |
29dBm, +/-1dB |
| RX Sensitivity |
-97dBm +/-1dB |
| Outdoor Range |
Over 5Km |
| TCP/IP Throughput |
25Mbps+ |
| Enclosure Size |
13.6 x 2 x 3.9cm |
| Weight |
0.10Kgr |
| Enclosure Characteristics |
Outdoor UV Stabalized Plastic |
| Mounting Kit |
Pole / Wall Mounting Kit included |
| Max Power Consumption |
4 Watts |
| Power Supply |
12V, 1A (12 Watts). Supply and injector included |
| Power Method |
Passive Power over Ethernet (pairs 4,5+; 7,8 return) |
| Operating Temperature |
-20C to 70C |
| Operating Humidity |
5 to 95% Condensing |
| Shock and Vibration |
ETSI300-019-1.4 |
