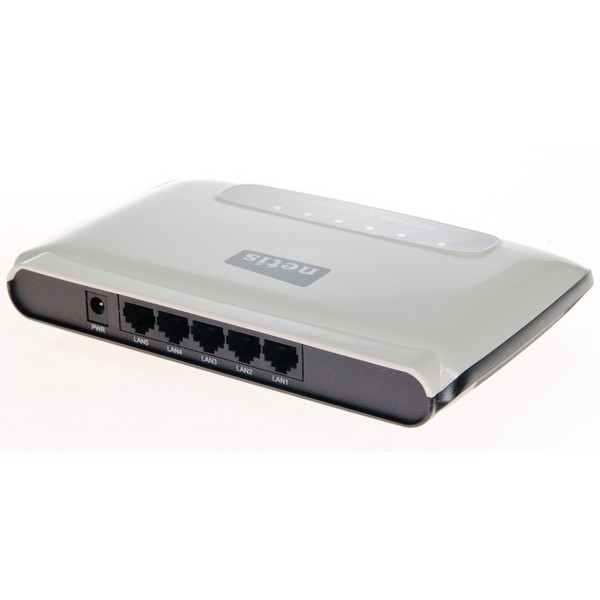

5 Port Gigabit Ethernet Switch
The ST3105G switch provides 5 10/100/1000Mbps Auto-Negotiation RJ45 ports.
All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports.
This Switch provides you with a low-cost, easy-to-use, high-performance, seamless and standard upgrade to improve your old network to a 1000Mbps network.
It will boost your network performance with up to 2000Mbps full duplex data transfer speed.
-

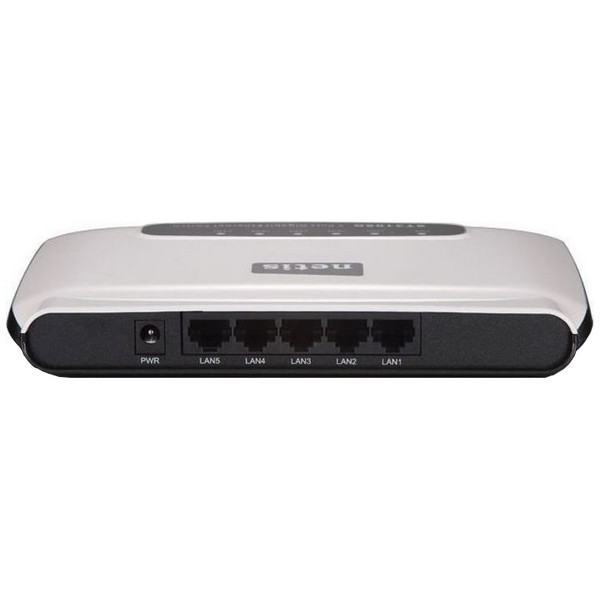

5 10/100/1000Mbps RJ45 ports, Auto-Negotiation & Auto MDI/MDIX
-
IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
-
10Gbps switching fabric capacity/backplane bandwidth
-
Support 9216-byte jumbo packet length forwarding at wired speed
-
Supports 2K MAC address table, MAC address auto-learning & auto-aging
-
Green Ethernet technology for effective power saving
-

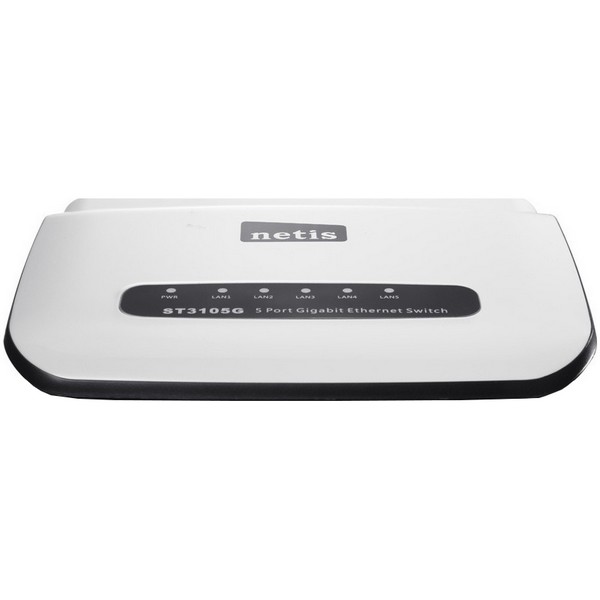

LED indicators for simple diagnostics and management
-
Plug and play ,no configuration required
|
Hardware |
|
Interface |
5* 10/100/1000M TX ports |
|
LED |
PWR, LAN1-LAN8 |
|
Power Supply |
DC 9V/500mA (Output) |
|
Dimensions (L x W x H ) |
183x125x31 mm |
|
Cabling Type |
10Base-T: UTP Cat.3 or up
100Base-TX: UTP Cat.5 or up
1000Base-TX: UTP Cat.5 or up |
|
Software |
|
Standard |
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE802.3ab 1000Base-T |
|
Access Method |
CSMA/CD |
|
Transmission Method |
Store and Forward |
|
Switch Architecture |
Non-blocking |
|
Data Transmission Rate |
10/100Mbps(Half-duplex)
20/200/2000Mbps(Full-duplex) |
|
MAC Address Table |
2K |
|
Others |
|
Certification |
FCC, CE |
|
Environment |
Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~90%RH non-condensing |
