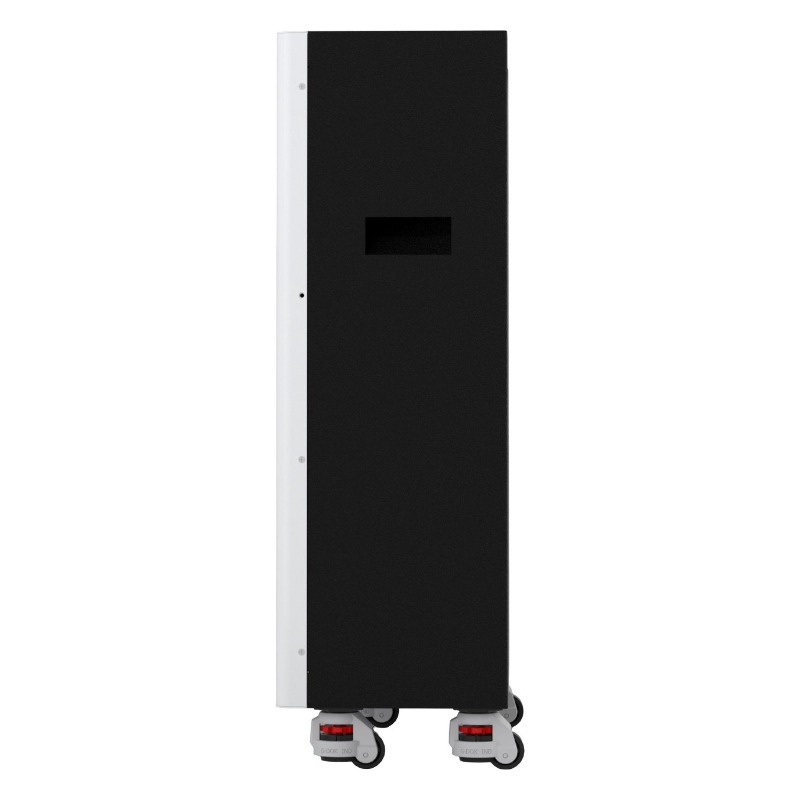

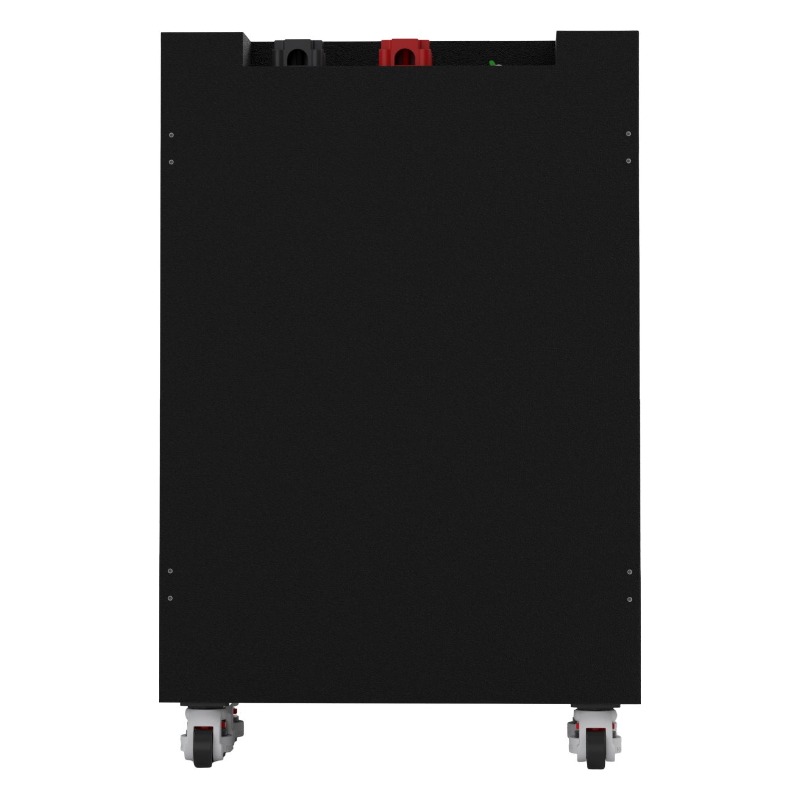

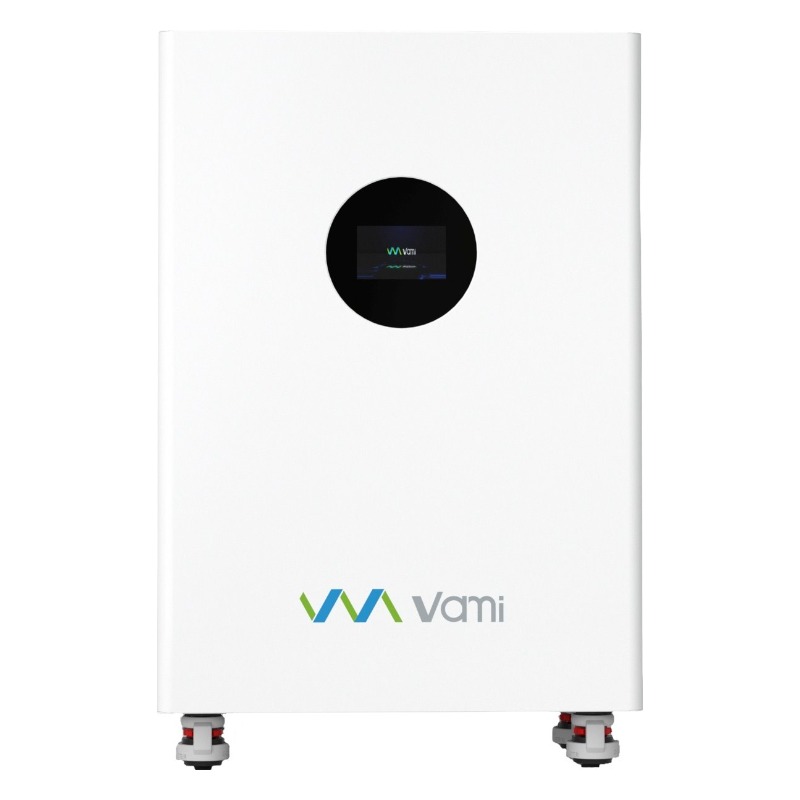

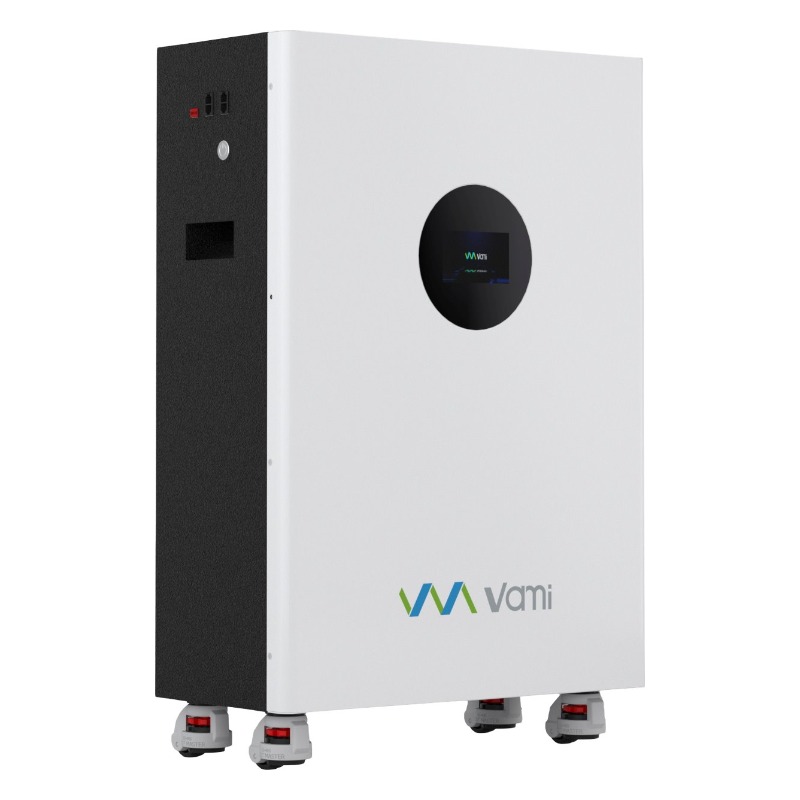

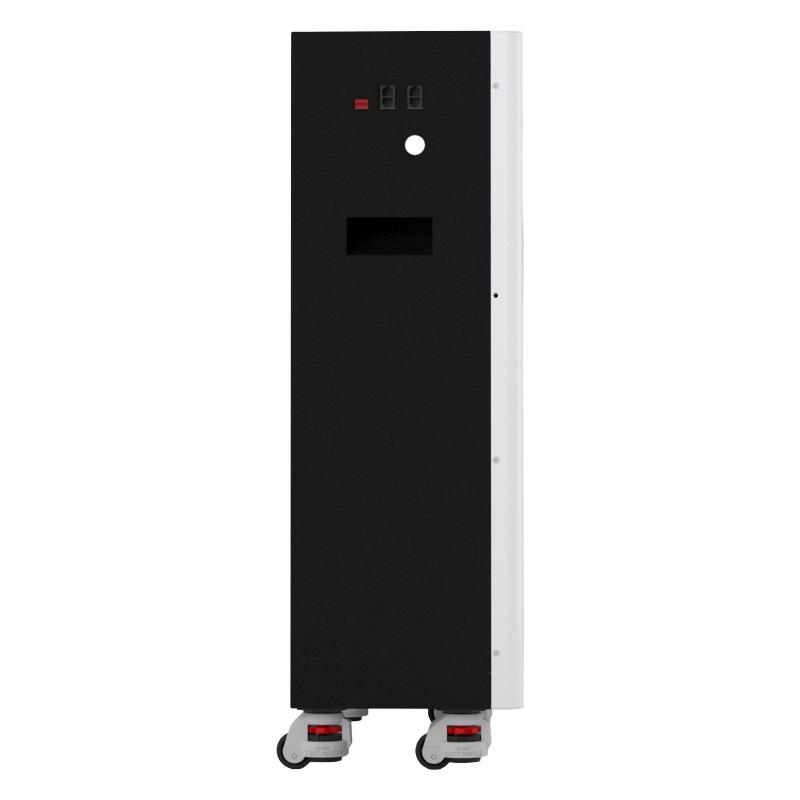

VMBF-51280 - 14.34 kWh, LV, battery on wheels.
high‑capacity, floor‑standing LiFePO4 energy storage unit for indoor use.
It stores about 14.34 kWh (280 Ah) at 51.2 V, supports up to 200 A charge/discharge with short peaks, and is designed for residential or small commercial solar setups.
Built‑in BMS, a 4.3‑inch display, and RS‑485/CAN communication make system monitoring and inverter integration straightforward, and multiple units can be paralleled for larger capacity.
The model is rated for up to roughly 6 000 cycles and comes on wheels for easier positioning.
|
Specifications: |
|
Battery Capacity [kWh] |
14.34 kWh |
|
Battery Capacity [Ah] |
280 Ah |
|
Output Voltage [V] |
51.2 V |
|
Battery System |
Low voltage |
|
Max. Charging/Discharging Current |
200 A |
|
Depth of Discharge (DoD) |
90% |
|
Max. Parallel Modules/Stack |
16 |
|
Interface & Control |
|
Display Size |
4.3" |
|
Other Features |
Touchscreen |
|
Communication Interface |
RS-485, CAN |
|
Physical & Environmental |
|
Battery Type |
LiFePO4 (Lithium Iron Phosphate) |
|
Design / Purpose |
Tower / Indoor |
|
Protection Class |
IP20 |
|
Operating Temperature |
0 to 55 °C |
|
Weight |
125 kg |
|
Dimensions (H x W x D) |
840 x 530 x 255 mm |
