LTE 4G/5G Router » U-LTE-Backup Pro
Ubiquiti U-LTE-Pro, UniFi Redundant WAN PRO over LTE
[2749][U-LTE-Backup Pro]
Price: 254,24€
 Order or Qty  Price
 > 500€  5+   251,70€
 > 1000€  10+   249,16€
 > 2000€  20+   246,61€
 > 5000€  40+   244,07€
 > 10000€  100+   241,53€
Prices exclude VAT

Ubiquiti U-LTE-Pro, UniFi Redundant WAN PRO over LTE

No Stock
Order Qty:
UPC:810010073549

U-LTE-Pro

In case that your primary WAN connection fails, Ubiquiti U-LTE-Pro will provide a backup mobile internet connection to keep your network online. This model works in the EU and supports the European LTE bands (1, 3, 7, 8, 20, 28) and WCDMA (1 and 8). LTE coverage and speed depends on the mobile network. The device can only work with UniFi Security Gateway or UniFi Dream Machine, and UniFi Network Controller version 5.14.0 or higher is required. This is not a router but an LTE modem that only works with USG.

PoE IN and OUT support

Ubiquiti U-LTE-Pro can be placed anywhere where is the best signal, because it can be powered by 802.3at PoE + from a switch such as a UniFI PoE Switch. Wall, adhesive, and desktop mounting options are offered to suit your specific application. This device has a secondary port. This secondary port offers bridging and passive PoE passthrough – useful for a camera, AP, or other device.

Status Display

You can view status information on the 1.5" screen (whether the device is in ready mode or active mode). The device has a built-in high-quality LTE antenna, but you can connect also an external antenna with higher gain on the SMA female connector, which is located on the bottom of the device.

Key Features

  • Automatic redundant connection - USG controls logic
  • Integration into UniFi Network networks - support in UniFi Controller from 5.14.0
  • 2×2 LTE category 4 (150 Mbps download / 51 Mbps upload)
  • Support for European bands: LTE (1, 3, 7, 8, 20, 28), WCDMA (1, 8)
  • Power over 802.3af/at PoE
  • Nano SIM slot
  • SMA female for connecting an external LTE antenna
  • 2× Gigabit LAN
  • 1.54" display
Hardware
Processor 74 Kc MIPS Processor at 775 MHz
Memory Information 128 MB DDR2
Management Interface Ethernet
Networking Interfaces (2) 10/100/1000 Mbps RJ45 Port
WP7607 LTE
SIM Nano-SIM
LTE Bands CAT4, B1/3/7/8/20/28
LCM Display 1.54" Screen
Power Method 802.3at PoE, Passive PoE (48V)
Power Supply 802.3at PoE (Pins 1, 2+/3, 6- or 4, 5+/7, 8-)
Supported Voltage Range 44 to 57VDC
Max. Power Consumption 8.5W
Max. TX Power 19 dBm
MIMO U-LTE 2 x 2 Category 4 LTE Radio
Throughput Speeds 150 Mbps
Antenna Gain
LTE
B1
B3
B7
B8
B20
B28


2 dBi
1.5 dBi
2 dBi
3.5 dBi
2 dBi
2 dBi
Button Factory Reset

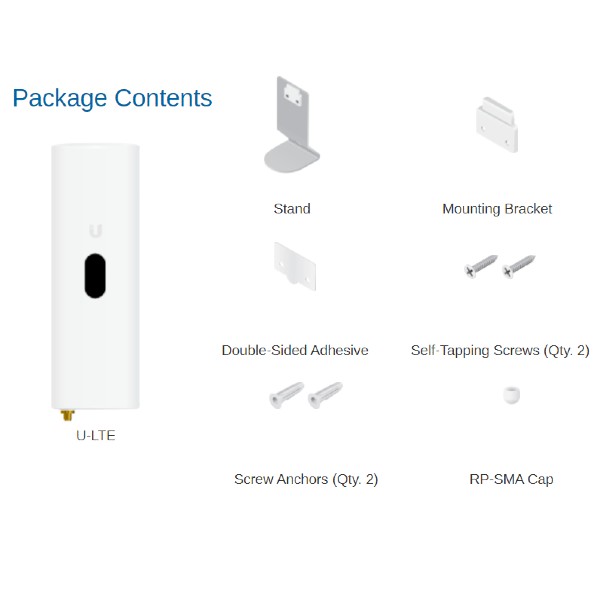

Mounting Wall Mount/Foot Stand (Included)
ESD/EMP Protection Air/Contact: ± 24 kV
Operating Temperature -10°C  to 60°C
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
Mechanical
Dimensions 66 x 202 x 32 mm
Weight Without Stand: 223 g
With Stand: 336 g
Enclosure Material Polycarbonate
Mount Materials Stand: Aluminum
Wall Mount: Polycarbonate


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
