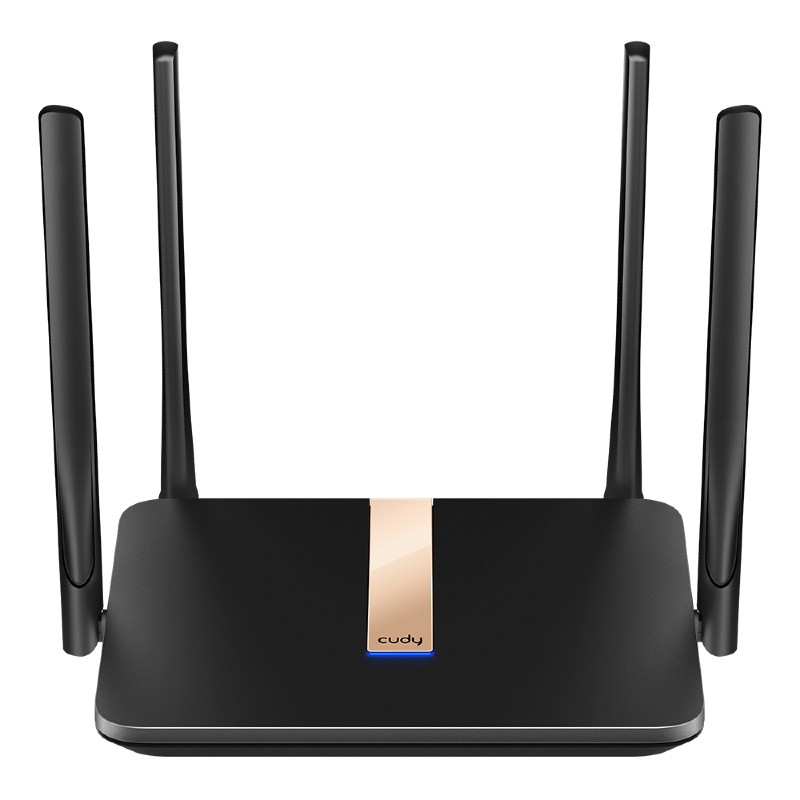

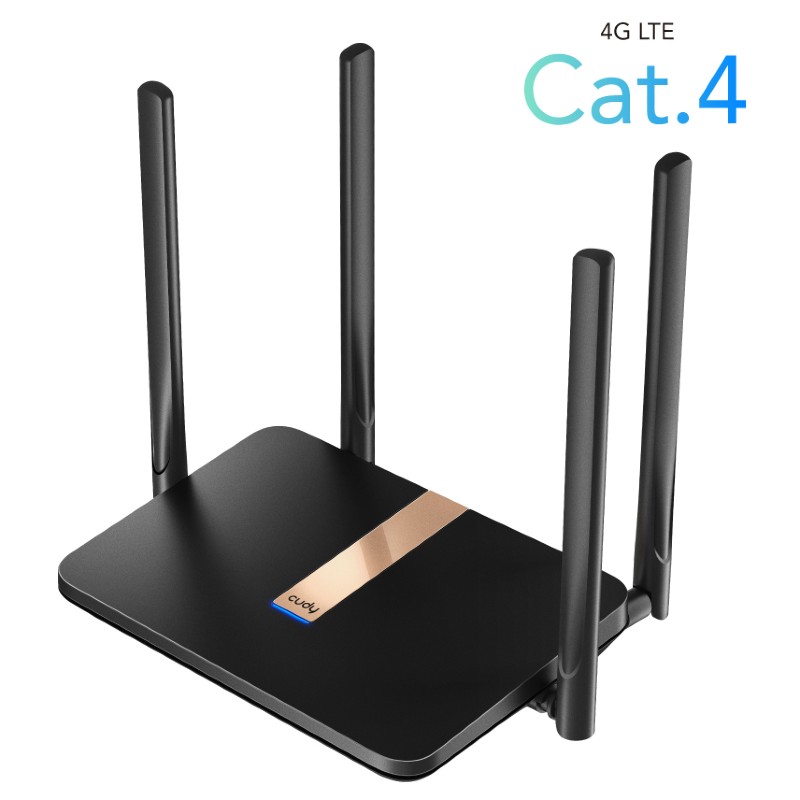

LT500D - 4G LTE CAT4 AC1200 Dual Band Wi-Fi Router
Use as a primary or backup internet connection. Provides high-speed Internet for rural homes where Internet service is weak or unavailable.
It can also be configured as a backup router, just plug an ethernet cable with internet to the WAN/LAN port, then the WAN/LAN port would be the main source of the internet, while the 4G network would be worked as a backup. If the WAN/LAN Internet service fails, it will switch to 4G service automatically.
The VPN client runs a secure and private tunnel from Cudy to the remote offices and teleworkers over the Internet.
Compatible with more than 15+ DDNS providers that allow you to manage your router remotely easily.
You can access the Cudy administration page with a common name in the URL even though the IP address changes.
Supports: PPTP / L2TP / OpenVPN / WireGuard / Zerotier / IPsec
|
Specifications: |
|
Model |
4G LTE AC1200 Dual-Band Wi-Fi Router |
|
DRAM |
128MB DDR2 |
|
FLASH |
16M SPI Flash |
|

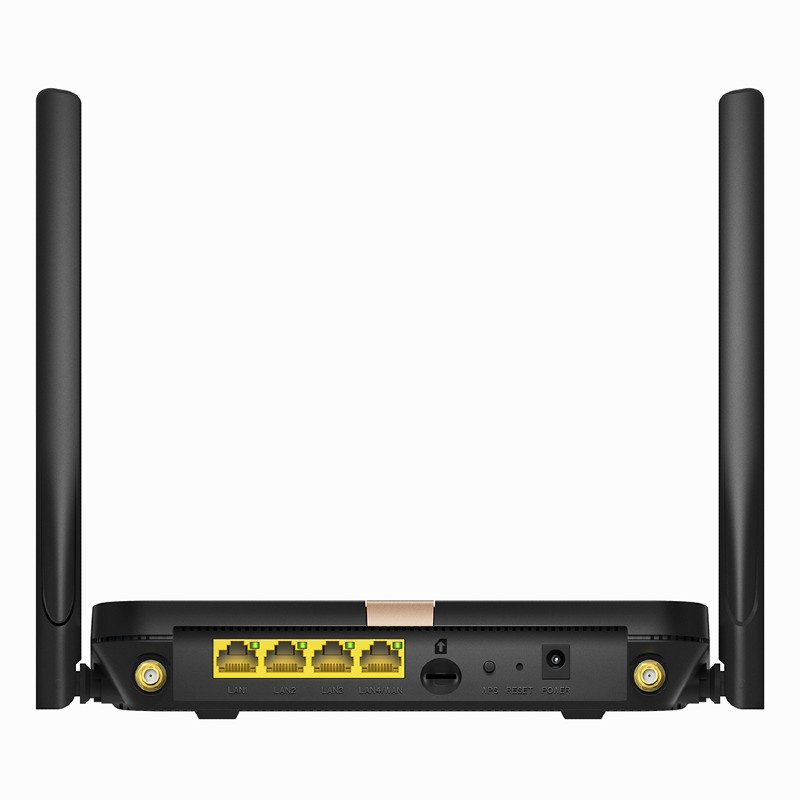

Interface |
3 x RJ45 10M/100M LAN Ethernet interfaces |
|
1 x RJ45 10M/100M WAN Ethernet interface |
|
1 x Reset Button |
|
1 x WPS Button |
|
1 x SIM Slot (Nano) |
|
Antenna |
2 * WiFi Antennas and 2 * LTE Antennas |
|
Gain |
5dBi |
|
Wi-Fi Frequency |
2.4GHZ, 5GHz |
LTE Frequency Bands
EU Version |
LTE-FDD: B1/B3/B5/B7/B8/B20/B28A |
|
LTE-TDD: B38/B40/B41 |
|
WCDMA: B1/B5/B8 |
|
GSM/EDGE: B3/B8 |
LTE Frequency Bands
US Version |
LTE-FDD: B2/B4/B5/B12/B13/B14/B66/ B71 |
|
WCDMA: B2/B4/B5 |
|
Wireless Features |
IEEE 802.11ac/a/n/b/g |
|
2.4 GHz and 5GHz |
|
867Mbps (5GHz), 300 Mbps (2.4 GHz) |
|
Compatible with 802.11ac/a/b/g/n Wi-Fi standards |
|
CE: <20dBm |
|
FCC: <30dBm |
|
Enable/Disable Wireless Radio, WMM |
|
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
|
Software Features |
Guest Network |
|
Server, DHCP Client List, Address Reservation |
|
Compatible with 15 more DDNS providers |
|
Port Forwarding, Port Triggering, UPnP, DMZ |
|
PPTP/L2TP/OpenVPN/WireGuard/IPsec/Zerotier |
|
Package Contents |
4G LTE WiFi Router |
|
Power Adapter |
|
RJ45 Ethernet Cable |
|
Quick Installation Guide |

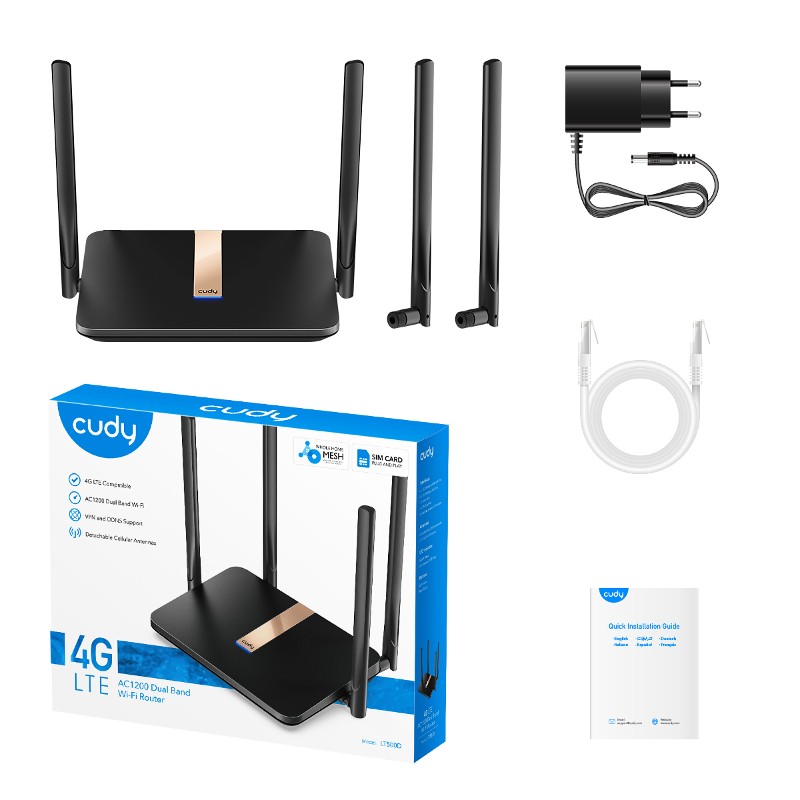

| Package Contents: |
|---|
| 1 x LT500D
|
| 2 x Detachable antennas 4G
|
| 1 x RJ45 Ethernet Cable
|
| 1 x Power Supply
|
| 1 x Installation Guide |
