P2 - Cudy P2 5G 5G e-SIM Wi-Fi 6 Router AX3000 2.0
Experience ultra-fast internet with the Cudy P2 5G WiFi 6 router, offering a maximum download speed of 2.6 Gbps. It features a single Nano SIM slot and high-capacity AX3000 WiFi 6 for superior performance. ISP clients have the option to add an RJ11 port for VoIP/VoNR services.
Key capabilities include 5G Rel. 15 with 5G/4G Dual Connectivity and 4×4 MIMO, 4-Stream Dual-Band Wi-Fi 6 (2402 Mbps + 574 Mbps), two Gigabit Ethernet ports, Cudy Mesh, VPN Server and Client, Cudy App, and Cloud Control.
|
Specifications |
|
Model Version |
P2 2.0 |
|
CPU Details |
1.3 GHz Dual-Core, ARM Cortex-A53 |
|
Flash/ROM |
128 MB (1 Gbit) NAND |
|
DDR/RAM |
512 MB (4 Gbit) DDR3L |
|
Cellular Standards |
5G Rel. 15, DL 4G Cat. 12/ UL 4G Cat. 13 |
|
Wide Bandwidth |
100 MHz |
|
Cellular Antennas |

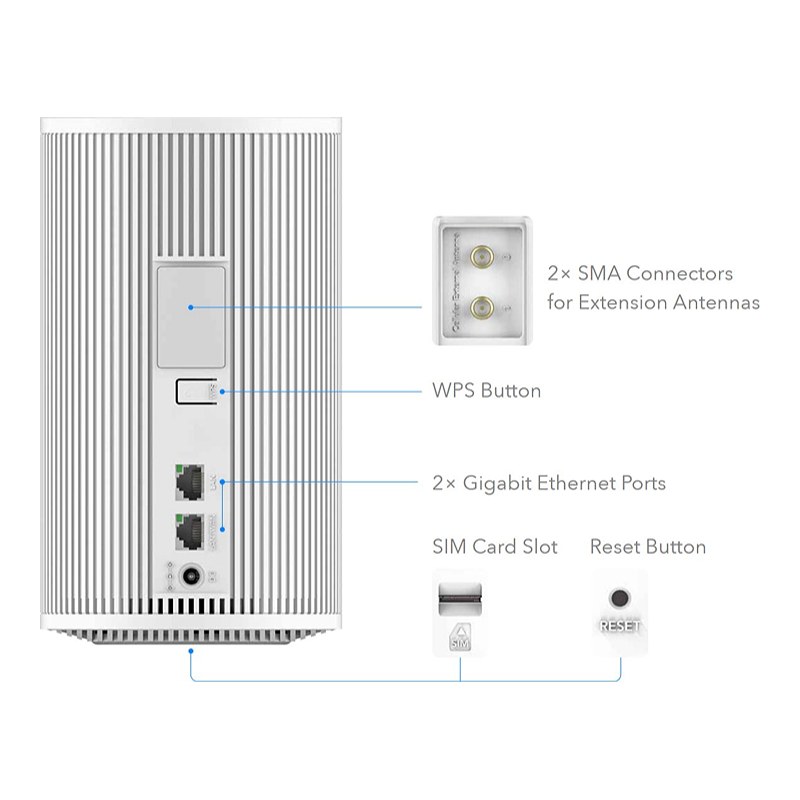

6× Internal, 2× SMA Connectors for Customized Antennas |
|
Detachable Cellular Antennas Connector |
SMA Female |
|
SIM Options |
1× Nano SIM Slot, eSIM (Optional for ISP Orders) |
|
Available Versions |
EU |
|
Suitable Regions (EU Version) |
Europe, Middle East, Africa, Asia-Pacific, Latin America |
|
Max DL Speed |
2.6 Gbps (NSA), 2 Gbps (SA) |
|
Max UL Speed |
650 Mbps (NSA), 1 Gbps (SA) |
|
Advanced |
ENDC 5G+4G Dual Connectivity, DL 4×4, UL 2×2 MIMO |
|
Cellular Bands |
5G Sub 6 GHz: n1/3/5/7/8/20/28/38/40/41/77/78, LTE-FDD: B1/3/5/7/8/20/28, LTE-TDD: B34/38/39/40/41, WCDMA: B1/5/8 |
|
5 GHz Wi-Fi Speed |
2402 Mbps |
|
2.4 GHz Wi-Fi Speed |
574 Mbps |
|
5 GHz Wi-Fi Streams |
2 Spatial Streams |
|
2.4 GHz Wi-Fi Streams |
2 Spatial Streams |
|
Wi-Fi Antennas |
Internal |
|
FEM or PA/LNA |
5 GHz: 3× Internal, 2.4 GHz: 2× Internal |
|
Range Performance (Max) |
170 m |
|
Wall Performance |
Two wooden walls with thickness < 10 cm, One concrete wall with thickness < 20 cm |
|
Physical Buttons |
WPS Button, Reset Button |
|
Gigabit RJ45 Ports |
2 |
|
Ethernet Notes |
1× RJ45 port is WAN/LAN configurable, and the rest are LAN ports |
|
FXS Ports |
1× RJ11 (VoNR/VoLTE) (Optional) |
|
LED |
Power, Internet, Wi-Fi, Cellular, Link/ACT of Each Ethernet Port |
|
Power Input Type |
DC Jack |
|
Power Methods |
DC |
|
Power Input |
12V⎓1.5A |
|
Power Adapter In the Box (Input) |
100-240V~, 50/60Hz |
|
Power Adapter In the Box (Output) |
12V⎓1.5A |
|
Max Power Consumption |
13.2W |
|
Idle Power Consumption |
TBD |
|
EMC (ESD) |
Contact: 4kV; Air: 8kV |
|
Operating Temperature |
0 ℃ ~ 40 ℃ |
|
Storage Temperature |
-40 ℃ ~ 70 ℃ |
|
Operating Humidity |
10% ~ 90% non-condensing |
|
Storage Humidity |
5% ~ 90% non-condensing |
|
Certifications |
FCC, CE |
|
Mechanical |
|
Dimension |
Φ116×202 mm |
|
Installation |
Desktop |
