Sale / Open Box » BL-R7620MN1
BL-R7620MN1 - 150M 802.11b/g/n PCB module
[1903][BL-R7620MN1]
Price: 15,34€
 Order or Qty  Price
 > 500€  5+   15,03€
 > 1000€  10+   14,73€
 > 2000€  20+   14,42€
 > 5000€  40+   14,11€
 > 10000€  100+   13,81€
Prices exclude VAT

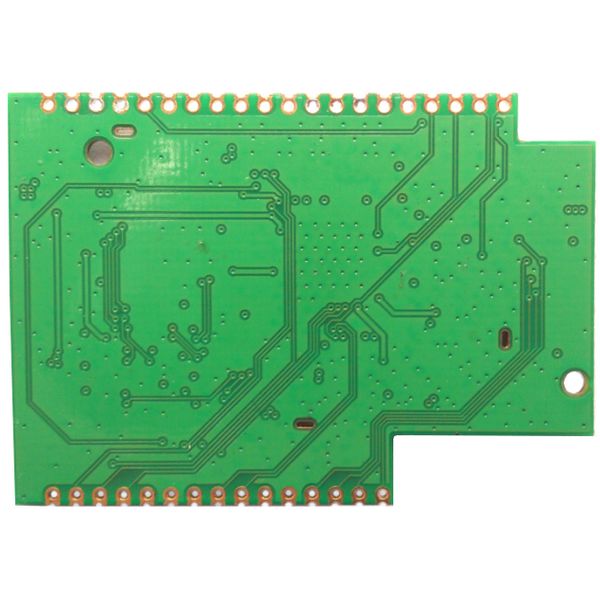

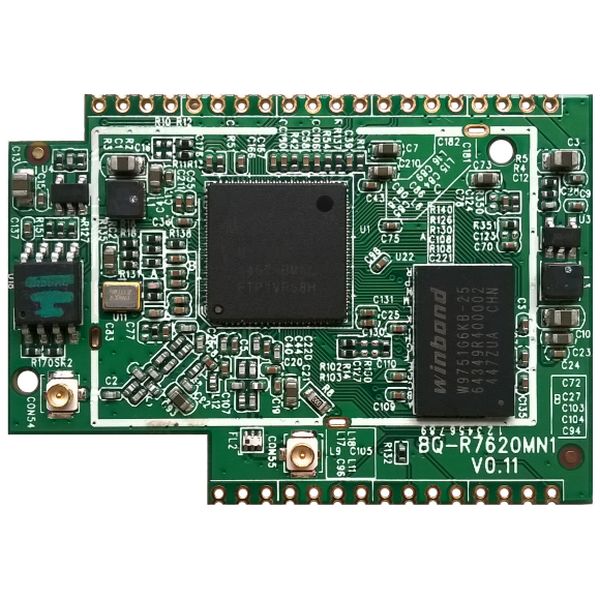

BL-R7620MN1 - 150M 802.11b/g/n PCB module

In Stock: 2
Order Qty:

 BL-R7620MN1 is based on MTK MT7620N chip design wifi routing module, frequency up to 600 MHZ, is equipped with 64 MB DDR2 RAM and 8 MB SPI FLASH.

Conform to the IEEE802.11 b/g/n wireless network protocol, to support the bridge, routing, access points three working mode

Using 2 x2 MIMO (Multiple input Multiple output) architecture, the wireless signal multiplex transceiver, transfer rate is as high as 300 megabits per second

Provide two 10/100 m PHY and multiple GPIO interface, realize the variety of communication and transport, input and output control, intelligent control IOT applications.

Convenient debugging, and product development.

Specifications:
Chipset MT7620N
Size 50 x 35 x 3mm
Power Supply 3.3V 750mA max
Interface Type WAN, LAN, GPIOs, UART, SPI, USB
Standards IEEE 802.11b/g/n IEEE802.3/u
Frequency Range 2400-24835GHz
Modulation Types 802.11b:DSSS(CCK,DQPSK,DBPSK)
802.11g/n:OFDM(BPSK,QPSK,16-QAM,64-QAM)
Sensitivity 1M:-96dBm@8%PER;6M:-93dBm@10%PER;
11M:-89dBm@8%PER;54M:-73dBm@10%PER;
150M:-69dBm@10%PER;
Tx Power 18±1.5dBm@11b(11M);
14±1.5dBm@11g(54M);
13±1.5dBm@11n(150M);
Antenna Type 2 x IPX / UFL connectors


Additional Images:



Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
