Sale / Open Box » TR24-3-6-RTNC
TR24-3-6-RTNC, 3/6dBi 2.4GHz OMNI/Directional Antenna - RP-TNC connector
[0306][TR24-3-6-RTNC]
Price: 13,60€
(-50%): 6,80€
Prices exclude VAT

TR24-3-6-RTNC, 3/6dBi 2.4GHz OMNI/Directional Antenna - RP-TNC connector

In Stock: 42
Order Qty:
UPC:728615667783

WHILE SUPPLIES LAST

Description :

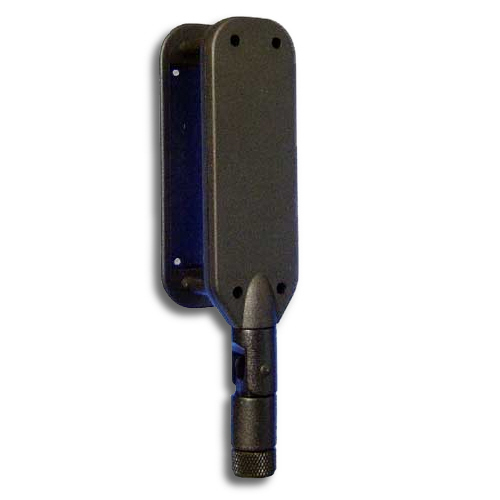

The Connex Wireless TR24 is a Patent Pending high performance wireless antenna designed specifically for indoor wireless applications. The antenna can be used in Omnidirectional mode to give full 360 degree coverage or it can be transformed to a Directional Antenna to maximize signal strength, minimize interference and increase useable range. The transformability of the antenna allows it to be optimized for the users unique performance needs. The built in knuckle gives indents at 45 degree, 90 degree and 180 degree angular adjustment for increased flexibility. The antenna can be used in Vertical or Horizontal Polarity. The unique swivel allows pointing the antenna in almost any direction in order to optimize signal strength, range and performance. With the optional MM-RD magnetic base the antenna can be mounted on a desktop, wall or ceiling.


Features :

• Patent Pending High Gain Transformable Antenna
• Transforms from 3dBi Omni to 6dBi Directional
• Better Interference Rejection, Longer Range
• Adjustable Knuckle: 90deg, 45deg or 180deg Angular Position
• Antenna rotates 360 degrees
• RP-TNC connector



Datasheet

  Installation Instructions

Specifications :



Parameter Min Typ Max Units
Frequency Range 2400   2483 MHz
Gain OMNI   3   dBi
Gain Directional   6   dBi
3dB Beamwidth   120   Deg
VSWR   1.5:1
Impedance   50   Ohm
Input Power     10 Watt
Operating Temp -40   +70 Deg C
Connector   RP-TNC
Weight   40   gr
Dimensions   127 x 25   mm

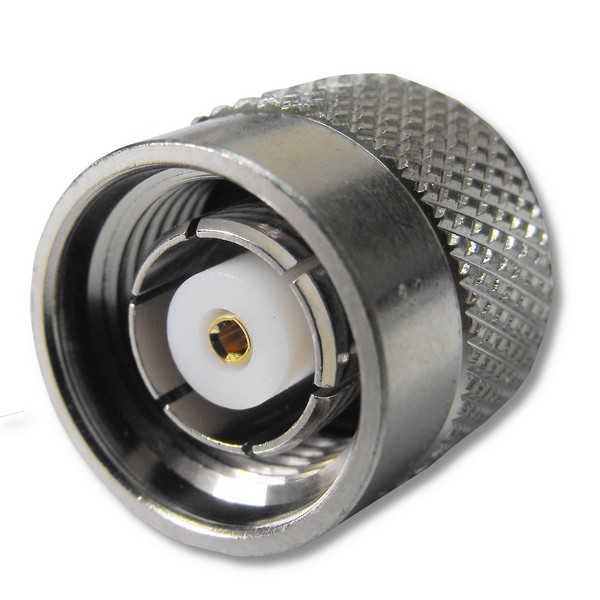

Connector
RP-TNC
Female thread
Female center pin
Return for:
Refund: Store Credit: Repair:
20 day(s) 0 day(s) 6 month(s)
